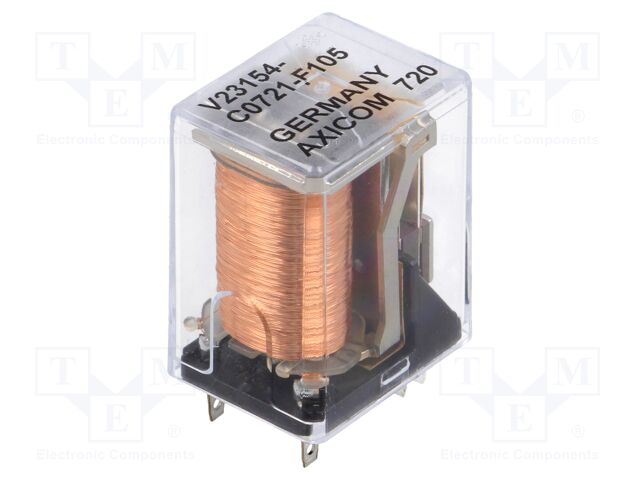

9-1393806-1 TE Connectivity
Hersteller: TE Connectivity
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; 5A; Cradle N; socket
Type of relay: electromagnetic
Contacts configuration: DPST-NO
Coil voltage: 24V DC
Contact current max.: 5A
Manufacturer series: Cradle N
Relay variant: miniature
Mounting: socket
Coil resistance: 890Ω
Coil voltage min.: 11V DC
Coil voltage max.: 40V DC
Body dimensions: 30x30x19mm
Coil power consumption: 647mW
Contact material: silver alloy
Leads: for soldering
Contact plating: gold-plated
Operating temperature: -40...70°C
Produktrezensionen
Produktbewertung abgeben
Technische Details 9-1393806-1 TE Connectivity
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; 5A; Cradle N; socket, Type of relay: electromagnetic, Contacts configuration: DPST-NO, Coil voltage: 24V DC, Contact current max.: 5A, Manufacturer series: Cradle N, Relay variant: miniature, Mounting: socket, Coil resistance: 890Ω, Coil voltage min.: 11V DC, Coil voltage max.: 40V DC, Body dimensions: 30x30x19mm, Coil power consumption: 647mW, Contact material: silver alloy, Leads: for soldering, Contact plating: gold-plated, Operating temperature: -40...70°C.
Weitere Produktangebote 9-1393806-1
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
9-1393806-1 | TE Connectivity Potter & Brumfield Relays |
Description: RELAY GEN PURPOSE DPST 5A 24V Packaging: Bulk Mounting Type: Socketable Coil Voltage: 24VDC Operating Temperature: -40°C ~ 70°C Termination Style: Plug In Relay Type: General Purpose Coil Current: 16.7 mA Coil Type: Non Latching Contact Material: Silver (Ag) Contact Form: DPST-NO (2 Form A) Contact Rating (Current): 5 A Switching Voltage: 125VAC, 150VDC - Max Must Operate Voltage: 11 VDC Operate Time: 7.5 ms Release Time: 3 ms Load - Max Switching: 625VA, 750W |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 50 Stücke Im Einkaufswagen Stück im Wert von UAH |
| 9-1393806-1 |
|
Hersteller: TE Connectivity Potter & Brumfield Relays
Description: RELAY GEN PURPOSE DPST 5A 24V
Packaging: Bulk
Mounting Type: Socketable
Coil Voltage: 24VDC
Operating Temperature: -40°C ~ 70°C
Termination Style: Plug In
Relay Type: General Purpose
Coil Current: 16.7 mA
Coil Type: Non Latching
Contact Material: Silver (Ag)
Contact Form: DPST-NO (2 Form A)
Contact Rating (Current): 5 A
Switching Voltage: 125VAC, 150VDC - Max
Must Operate Voltage: 11 VDC
Operate Time: 7.5 ms
Release Time: 3 ms
Load - Max Switching: 625VA, 750W
