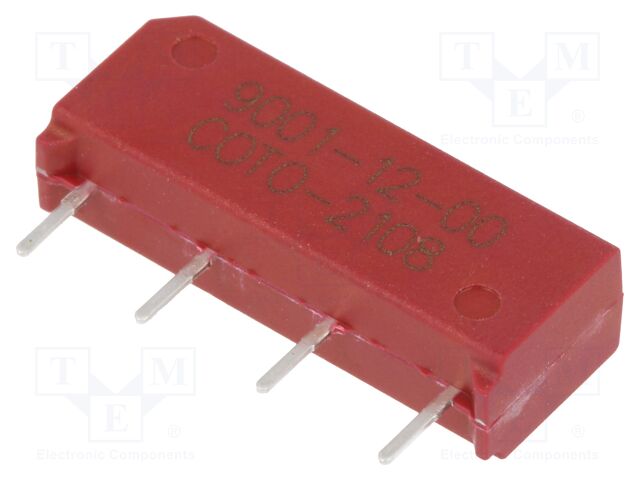

9001-12-00 COTO TECHNOLOGY
Hersteller: COTO TECHNOLOGY
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 0.5A; max.200VDC; 10W
Type of relay: reed switch
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 0.5A
Switched voltage: max. 200V AC; max. 200V DC
Switching capacity: 10W
Coil resistance: 1kΩ
Mounting: THT
Manufacturer series: 9000
Case: SIP
Contact resistance: 0.2Ω
Operating temperature: -20...85°C
Body dimensions: 19.3x8.1x5.08mm
Terminal pitch: 5.08mm
| Anzahl | Privatkunde |
|---|---|
| 17+ | 5.21 EUR |
| 18+ | 4.78 EUR |
| 25+ | 4.55 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 9001-12-00 COTO TECHNOLOGY
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 0.5A; max.200VDC; 10W, Type of relay: reed switch, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 0.5A, Switched voltage: max. 200V AC; max. 200V DC, Switching capacity: 10W, Coil resistance: 1kΩ, Mounting: THT, Manufacturer series: 9000, Case: SIP, Contact resistance: 0.2Ω, Operating temperature: -20...85°C, Body dimensions: 19.3x8.1x5.08mm, Terminal pitch: 5.08mm.
Weitere Produktangebote 9001-12-00 nach Preis ab 5.13 EUR bis 9.2 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9001-12-00 | Coto Technology |
Reed Relays SIP Reed Relay |
auf Bestellung 484 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
9001-12-00 | Coto Technology |
Description: RELAY REED SPST 500MA 12V Packaging: Tube Mounting Type: Through Hole Coil Voltage: 12VDC Operating Temperature: -20°C ~ 85°C Termination Style: PC Pin Coil Current: 12 mA Coil Type: Non Latching Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 500 mA Switching Voltage: 200VAC, 200VDC - Max Must Release Voltage: 1 VDC Must Operate Voltage: 9 VDC Operate Time: 0.35 ms Release Time: 0.1 ms Part Status: Active |
auf Bestellung 6586 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
| 9001-12-00 | Coto Technology |
Reed Relay 12VDC 1KOhm 0.5A SPST-NO( (19.3mm 5.08mm 7.6mm)) THT Dry |
auf Bestellung 1300 Stücke: Lieferzeit 14-21 Tag (e) |
|
| 9001-12-00 |
|
Hersteller: Coto Technology
Reed Relays SIP Reed Relay
Reed Relays SIP Reed Relay
auf Bestellung 484 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 8.33 EUR |
| 10+ | 7.44 EUR |
| 25+ | 6.62 EUR |
| 100+ | 6.33 EUR |
| 250+ | 5.99 EUR |
| 500+ | 5.81 EUR |
| 1000+ | 5.76 EUR |
| 9001-12-00 |
|
Hersteller: Coto Technology
Description: RELAY REED SPST 500MA 12V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -20°C ~ 85°C
Termination Style: PC Pin
Coil Current: 12 mA
Coil Type: Non Latching
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 500 mA
Switching Voltage: 200VAC, 200VDC - Max
Must Release Voltage: 1 VDC
Must Operate Voltage: 9 VDC
Operate Time: 0.35 ms
Release Time: 0.1 ms
Part Status: Active
Description: RELAY REED SPST 500MA 12V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -20°C ~ 85°C
Termination Style: PC Pin
Coil Current: 12 mA
Coil Type: Non Latching
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 500 mA
Switching Voltage: 200VAC, 200VDC - Max
Must Release Voltage: 1 VDC
Must Operate Voltage: 9 VDC
Operate Time: 0.35 ms
Release Time: 0.1 ms
Part Status: Active
auf Bestellung 6586 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 3+ | 9.2 EUR |
| 10+ | 8.2 EUR |
| 25+ | 7.83 EUR |
| 50+ | 7.56 EUR |
| 100+ | 7.29 EUR |
| 250+ | 6.97 EUR |
| 500+ | 6.74 EUR |
| 1000+ | 6.5 EUR |
| 9001-12-00 |
|
Hersteller: Coto Technology
Reed Relay 12VDC 1KOhm 0.5A SPST-NO( (19.3mm 5.08mm 7.6mm)) THT Dry
Reed Relay 12VDC 1KOhm 0.5A SPST-NO( (19.3mm 5.08mm 7.6mm)) THT Dry
auf Bestellung 1300 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 27+ | 6.51 EUR |
| 100+ | 6.09 EUR |
| 250+ | 5.7 EUR |
| 500+ | 5.37 EUR |
| 1000+ | 5.13 EUR |
