901-9916

901-9916 AMPHENOL RF


pVersion=0046&contRep=ZT&docId=005056AB281E1EDEA0C2A50BC34860D6&compId=901-9916.pdf?ci_sign=15d349a8438a7d0954f0ee7113aadea0803f44c9 Hersteller: AMPHENOL RF
Category: SMA, SMB, SMC connectors

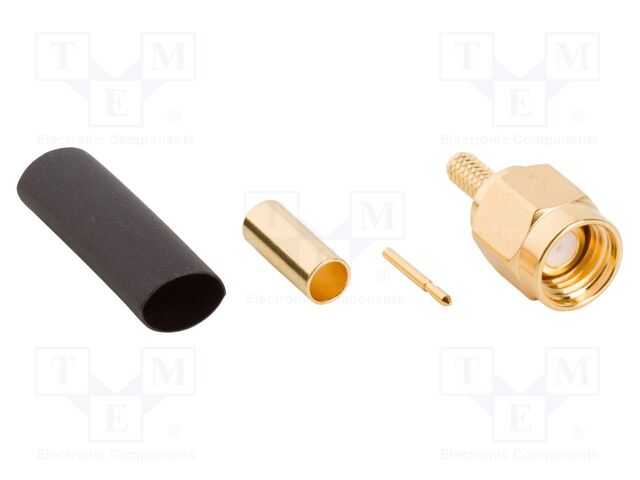

Description: Connector: SMA; plug; male; straight; 50Ω; soldering,crimped; PTFE
Type of connector: SMA
Connector: plug
Kind of connector: male
Spatial orientation: straight
Wave impedance: 50Ω
Kind of cable: Belden 7805A; Belden 8216; Belden 83269; Belden 83284; Belden 84316; Leoni DACAR 462; Leoni DACAR 462-2; RG174; RG188; RG316; Shikoku 1.5DS-QFB-TA; Sumitomo 1.5DS-GXC-SP; Times LMR-100A; Times RG-174LL
Electrical mounting: crimped; soldering
Mechanical mounting: for cable
Insulator material: PTFE
Contact plating: gold-plated
Max. frequency: 12.4GHz
Plating material: gold
Contact material: brass
Operating temperature: -65...165°C
Body material: brass
Mechanical durability: 100 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 32 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
6+14.03 EUR
8+9.60 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 901-9916 AMPHENOL RF

Category: SMA, SMB, SMC connectors, Description: Connector: SMA; plug; male; straight; 50Ω; soldering,crimped; PTFE, Type of connector: SMA, Connector: plug, Kind of connector: male, Spatial orientation: straight, Wave impedance: 50Ω, Kind of cable: Belden 7805A; Belden 8216; Belden 83269; Belden 83284; Belden 84316; Leoni DACAR 462; Leoni DACAR 462-2; RG174; RG188; RG316; Shikoku 1.5DS-QFB-TA; Sumitomo 1.5DS-GXC-SP; Times LMR-100A; Times RG-174LL, Electrical mounting: crimped; soldering, Mechanical mounting: for cable, Insulator material: PTFE, Contact plating: gold-plated, Max. frequency: 12.4GHz, Plating material: gold, Contact material: brass, Operating temperature: -65...165°C, Body material: brass, Mechanical durability: 100 cycles, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 901-9916 nach Preis ab 9.60 EUR bis 19.52 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
901-9916 901-9916 Hersteller : AMPHENOL RF pVersion=0046&contRep=ZT&docId=005056AB281E1EDEA0C2A50BC34860D6&compId=901-9916.pdf?ci_sign=15d349a8438a7d0954f0ee7113aadea0803f44c9 Category: SMA, SMB, SMC connectors
Description: Connector: SMA; plug; male; straight; 50Ω; soldering,crimped; PTFE
Type of connector: SMA
Connector: plug
Kind of connector: male
Spatial orientation: straight
Wave impedance: 50Ω
Kind of cable: Belden 7805A; Belden 8216; Belden 83269; Belden 83284; Belden 84316; Leoni DACAR 462; Leoni DACAR 462-2; RG174; RG188; RG316; Shikoku 1.5DS-QFB-TA; Sumitomo 1.5DS-GXC-SP; Times LMR-100A; Times RG-174LL
Electrical mounting: crimped; soldering
Mechanical mounting: for cable
Insulator material: PTFE
Contact plating: gold-plated
Max. frequency: 12.4GHz
Plating material: gold
Contact material: brass
Operating temperature: -65...165°C
Body material: brass
Mechanical durability: 100 cycles
auf Bestellung 32 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
6+14.03 EUR
8+9.60 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
901-9916 901-9916 Hersteller : Amphenol RF C901-9916.pdf Description: CONN SMA PLUG STR 50 OHM SOLDER
Packaging: Bulk
Connector Type: Plug, Male Pin
Contact Termination: Solder
Impedance: 50 Ohms
Mounting Type: Free Hanging (In-Line)
Cable Group: RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Fastening Type: Threaded
Ingress Protection: Weatherproof
Connector Style: SMA
Housing Color: Gold
Shield Termination: Crimp
Center Contact Material: Brass
Part Status: Not For New Designs
Frequency - Max: 12.4 GHz
Number of Ports: 1
auf Bestellung 105 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+19.45 EUR
10+16.53 EUR
25+15.49 EUR
50+14.75 EUR
100+14.05 EUR
Im Einkaufswagen  Stück im Wert von  UAH
901-9916 901-9916 Hersteller : Amphenol RF amphs04345_1-2259035.pdf RF Connectors / Coaxial Connectors STRT PLG 174 316 GLD
auf Bestellung 241 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+19.52 EUR
10+17.28 EUR
25+16.14 EUR
100+15.07 EUR
250+13.75 EUR
500+12.85 EUR
1000+11.79 EUR
Im Einkaufswagen  Stück im Wert von  UAH
901-9916 901-9916 Hersteller : AMPHENOL RF C901-9916.pdf Description: AMPHENOL RF - 901-9916 - RF/COAXIAL SMA PLUG STR 50 OHM CRIMP/SLDR
tariffCode: 85366910
rohsCompliant: Y-EX
Kontaktüberzug: Gold Plated Contacts
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Brass
Steckverbinderausführung: Straight Plug
Steckverbindermontage: Cable Mount
Steckverbindertyp: SMA Coaxial
usEccn: EAR99
euEccn: NLR
Koaxialanschluss: Solder
Impedanz: 50ohm
Steckverbindertyp: SMA Coaxial
Produktpalette: 901 Series
Koaxialkabeltypen: RG174, RG188A, RG316
productTraceability: No
Frequenz, max.: 12.4GHz
directShipCharge: 25
auf Bestellung 42 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
901-9916 901-9916 Hersteller : Amphenol assembly_instructions_c53.pdf Conn SMA 0Hz to 12.4GHz 50Ohm Crimp ST Cable Mount PL Gold
