Produkte > HIRSCHMANN > 932109100 GDM 3011 J SCHWARZ

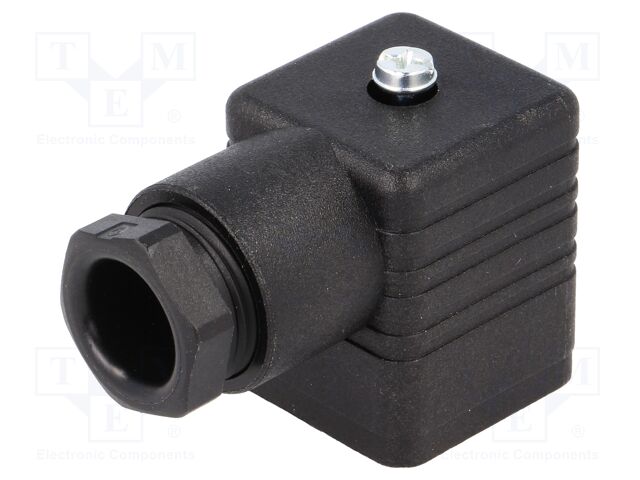

932109100 GDM 3011 J SCHWARZ

932109100 GDM 3011 J SCHWARZ HIRSCHMANN

pVersion=0046&contRep=ZT&docId=E1DA25BB414F4DF1A704005056AB0C4F&compId=932%20109-100.pdf?ci_sign=f5921819e4a93d673df285dc16dc0b3042dcbbf7 Hersteller: HIRSCHMANN
Category: Valve connectors
Description: Connector: valve connector; plug; form A; 18mm; female; PIN: 4; 16A
Colour: black
Electrical mounting: screw terminal; soldering
Conform to the norm: DIN 43650; DIN EN 175301-803; ISO 4400
Kind of connector: female
Mechanical mounting: for cable
Case: form A
IP rating: IP65
Locking system: screws
Gland thread: PG11
Connector: plug
Connector variant: square
Operating temperature: -40...125°C
Wire cross-section: 1.5mm2
Contacts pitch: 18mm
Cable external diameter: 6...9mm
Number of pins: 4
Current rating: 16A
Rated voltage: 250V
Connector pinout layout: 3+PE
Type of connector: valve connector
Spatial orientation: angled 90°
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2393 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
25+2.92 EUR
28+2.65 EUR
37+1.94 EUR
39+1.84 EUR
Mindestbestellmenge: 25
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 932109100 GDM 3011 J SCHWARZ HIRSCHMANN

Category: Valve connectors, Description: Connector: valve connector; plug; form A; 18mm; female; PIN: 4; 16A, Colour: black, Electrical mounting: screw terminal; soldering, Conform to the norm: DIN 43650; DIN EN 175301-803; ISO 4400, Kind of connector: female, Mechanical mounting: for cable, Case: form A, IP rating: IP65, Locking system: screws, Gland thread: PG11, Connector: plug, Connector variant: square, Operating temperature: -40...125°C, Wire cross-section: 1.5mm2, Contacts pitch: 18mm, Cable external diameter: 6...9mm, Number of pins: 4, Current rating: 16A, Rated voltage: 250V, Connector pinout layout: 3+PE, Type of connector: valve connector, Spatial orientation: angled 90°, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 932109100 GDM 3011 J SCHWARZ nach Preis ab 1.84 EUR bis 2.92 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
932109100 GDM 3011 J SCHWARZ 932109100 GDM 3011 J SCHWARZ Hersteller : HIRSCHMANN pVersion=0046&contRep=ZT&docId=E1DA25BB414F4DF1A704005056AB0C4F&compId=932%20109-100.pdf?ci_sign=f5921819e4a93d673df285dc16dc0b3042dcbbf7 Category: Valve connectors
Description: Connector: valve connector; plug; form A; 18mm; female; PIN: 4; 16A
Colour: black
Electrical mounting: screw terminal; soldering
Conform to the norm: DIN 43650; DIN EN 175301-803; ISO 4400
Kind of connector: female
Mechanical mounting: for cable
Case: form A
IP rating: IP65
Locking system: screws
Gland thread: PG11
Connector: plug
Connector variant: square
Operating temperature: -40...125°C
Wire cross-section: 1.5mm2
Contacts pitch: 18mm
Cable external diameter: 6...9mm
Number of pins: 4
Current rating: 16A
Rated voltage: 250V
Connector pinout layout: 3+PE
Type of connector: valve connector
Spatial orientation: angled 90°
auf Bestellung 2393 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
25+2.92 EUR
28+2.65 EUR
37+1.94 EUR
39+1.84 EUR
Mindestbestellmenge: 25
Im Einkaufswagen  Stück im Wert von  UAH
