9A0824G401

9A0824G401 Sanyo Denki America Inc.


San_Ace_80A25_E.pdf Hersteller: Sanyo Denki America Inc.

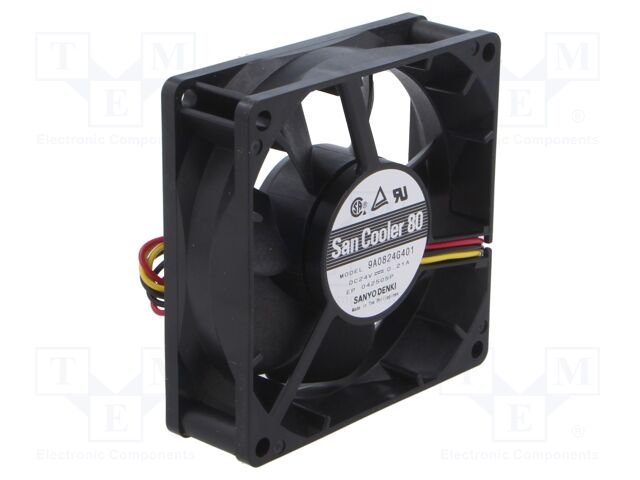

Description: FAN AXIAL 80X25MM 24VDC WIRE
Packaging: Box
Features: Locked Rotor Protection, Speed Sensor (Tach)
Voltage - Rated: 24VDC
Size / Dimension: Square - 80mm L x 80mm H
Bearing Type: Ball
RPM: 4500 RPM
Air Flow: 53.0 CFM (1.48m³/min)
Width: 25.00mm
Weight: 0.199 lb (90.26 g)
Operating Temperature: -4 ~ 140°F (-20 ~ 60°C)
Termination: 3 Wire Leads
Approval Agency: CSA, TUV, UL
Fan Type: Tubeaxial
Noise: 40.0dB(A)
Static Pressure: 0.323 in H2O (80.4 Pa)
Part Status: Active
Power (Watts): 5.04 W
auf Bestellung 157 Stücke:

Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+31.7 EUR
10+25.98 EUR
40+22.76 EUR
80+21.79 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 9A0824G401 Sanyo Denki America Inc.

Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 80x80x25mm; 90m3/h; 40dBA; ball; 4500rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Operating voltage: 12...26.4V DC, Fan dimensions: 80x80x25mm, Power consumption: 5.04W, Current rating: 0.21A, Fan efficiency: 90m3/h, Noise level: 40dBA, Kind of Bearing: ball, Rotational rate/speed: 4500rpm, Min. insulation resistance: 10MΩ, Impeller material: plastic, Enclosure material: plastic, Leads: leads x3, Lead length: 0.3m, Operating temperature: -20...60°C, Flammability rating: UL94V-0, Additional functions: lock sensor; reverse polarity protection, Kind of material: flame retardant, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 9A0824G401 nach Preis ab 15.63 EUR bis 36.82 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
9A0824G401 9A0824G401 Hersteller : Sanyo Denki San_Ace_80A25_E-1283898.pdf DC Fans DC Axial Fan, 80x80x25mm, 24VDC, Tachometer
auf Bestellung 110 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+36.82 EUR
10+30.18 EUR
40+26.93 EUR
120+25.15 EUR
280+25.06 EUR
520+24.75 EUR
Im Einkaufswagen  Stück im Wert von  UAH
9A0824G401 Hersteller : SANYO DENKI pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA1FD1167B35EC0C7&compId=9A0824G401.pdf?ci_sign=10b9ae84b18f31cae863339075e5d5430c156963 Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x25mm; 90m3/h; 40dBA; ball; 4500rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 12...26.4V DC
Fan dimensions: 80x80x25mm
Power consumption: 5.04W
Current rating: 0.21A
Fan efficiency: 90m3/h
Noise level: 40dBA
Kind of Bearing: ball
Rotational rate/speed: 4500rpm
Min. insulation resistance: 10MΩ
Impeller material: plastic
Enclosure material: plastic
Leads: leads x3
Lead length: 0.3m
Operating temperature: -20...60°C
Flammability rating: UL94V-0
Additional functions: lock sensor; reverse polarity protection
Kind of material: flame retardant
Anzahl je Verpackung: 1 Stücke
auf Bestellung 50 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
5+16.3 EUR
50+15.63 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
9A0824G401 Hersteller : SANYO DENKI pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA1FD1167B35EC0C7&compId=9A0824G401.pdf?ci_sign=10b9ae84b18f31cae863339075e5d5430c156963 Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x25mm; 90m3/h; 40dBA; ball; 4500rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 12...26.4V DC
Fan dimensions: 80x80x25mm
Power consumption: 5.04W
Current rating: 0.21A
Fan efficiency: 90m3/h
Noise level: 40dBA
Kind of Bearing: ball
Rotational rate/speed: 4500rpm
Min. insulation resistance: 10MΩ
Impeller material: plastic
Enclosure material: plastic
Leads: leads x3
Lead length: 0.3m
Operating temperature: -20...60°C
Flammability rating: UL94V-0
Additional functions: lock sensor; reverse polarity protection
Kind of material: flame retardant
