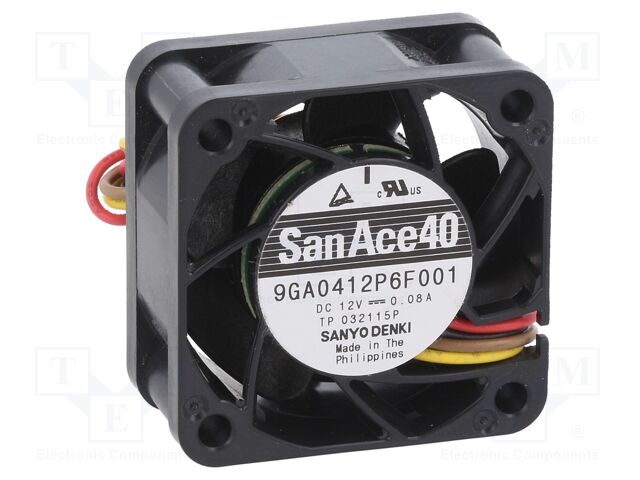

9GA0412P6F001 Sanyo Denki America Inc.
Hersteller: Sanyo Denki America Inc.Description: FAN AXIAL 40X20MM 12VDC WIRE
Features: Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 12VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Ball
RPM: 8000 RPM
Air Flow: 7.4 CFM (0.207m³/min)
Width: 20.00mm
Weight: 0.077 lb (34.93 g)
Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
Termination: 4 Wire Leads
Approval Agency: CSA, TUV, UL
Fan Type: Tubeaxial
Noise: 28.0dB(A)
Static Pressure: 0.319 in H2O (79.5 Pa)
Part Status: Active
Power (Watts): 960 mW
auf Bestellung 558 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 28.34 EUR |
| 10+ | 23.28 EUR |
| 25+ | 21.35 EUR |
| 70+ | 19.54 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 9GA0412P6F001 Sanyo Denki America Inc.
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x20mm; 12.6m3/h; 28dBA; ball; 8000rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 10.2...13.8V DC, Fan dimensions: 40x40x20mm, Power consumption: 0.96W, Current rating: 80mA, Fan efficiency: 12.6m3/h, Noise level: 28dBA, Kind of Bearing: ball, Rotational rate/speed: 8000rpm, Min. insulation resistance: 10MΩ, Impeller material: plastic, Enclosure material: plastic, Leads: leads x4, Lead length: 0.32m, Operating temperature: -20...70°C, Flammability rating: UL94V-0, Additional functions: lock sensor; PWM; reverse polarity protection, Kind of material: flame retardant, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 9GA0412P6F001
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
9GA0412P6F001 | Hersteller : SANYO DENKI |
Description: SANYO DENKI - 9GA0412P6F001 - DC-Axiallüfter, 12 V, Quadratisch, 40 mm, 20 mm, Kugellager, 7.4 cu.ft/min tariffCode: 84145925 Stromanschluss: 3 Anschlussdrähte, PWM-Steuerung, Sensorausgang rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES Art des Lagers: Kugellager Nennleistung: 960mW IP-Schutzart: - usEccn: EAR99 Luftstrom - m3/min: 0.21m³/min Nennstrom: 80mA Außentiefe: 20mm Geräuschentwicklung: 28dBA euEccn: NLR Luftstrom - CFM: 7.4cu.ft/min Lüfterrahmen: Quadratisch Produktpalette: San Ace 40 9GA productTraceability: No Rahmengröße: 40mm Versorgungsspannung, V DC: 12V Nenndrehzahl: 8000rpm SVHC: To Be Advised |
auf Bestellung 26 Stücke: Lieferzeit 14-21 Tag (e) |
|
 |
9GA0412P6F001 | Hersteller : Sanyo Denki |
DC Fan Axial Ball Bearing 12V 10.2V to 13.8V 7.4CFM 28dB 40 X 40 X 20mm |
Produkt ist nicht verfügbar |
|
 |
9GA0412P6F001 | Hersteller : SANYO DENKI |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 40x40x20mm; 12.6m3/h; 28dBA; ball; 8000rpm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 10.2...13.8V DC Fan dimensions: 40x40x20mm Power consumption: 0.96W Current rating: 80mA Fan efficiency: 12.6m3/h Noise level: 28dBA Kind of Bearing: ball Rotational rate/speed: 8000rpm Min. insulation resistance: 10MΩ Impeller material: plastic Enclosure material: plastic Leads: leads x4 Lead length: 0.32m Operating temperature: -20...70°C Flammability rating: UL94V-0 Additional functions: lock sensor; PWM; reverse polarity protection Kind of material: flame retardant Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
|
 |
9GA0412P6F001 | Hersteller : Sanyo Denki |
DC Fans DC Fan, 40x40x20mm, 12VDC, High Performance, Low Power, Tachometer, PWM |
Produkt ist nicht verfügbar |
|
|
|
9GA0412P6F001 | Hersteller : SANYO DENKI |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 40x40x20mm; 12.6m3/h; 28dBA; ball; 8000rpm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 10.2...13.8V DC Fan dimensions: 40x40x20mm Power consumption: 0.96W Current rating: 80mA Fan efficiency: 12.6m3/h Noise level: 28dBA Kind of Bearing: ball Rotational rate/speed: 8000rpm Min. insulation resistance: 10MΩ Impeller material: plastic Enclosure material: plastic Leads: leads x4 Lead length: 0.32m Operating temperature: -20...70°C Flammability rating: UL94V-0 Additional functions: lock sensor; PWM; reverse polarity protection Kind of material: flame retardant |
Produkt ist nicht verfügbar |
