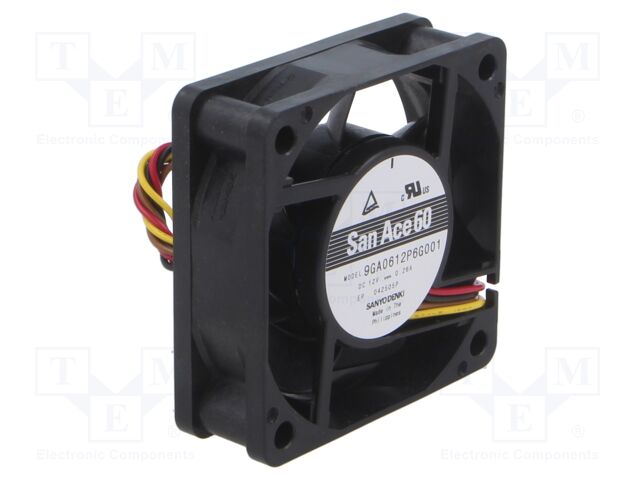

9GA0612P6G001 Sanyo Denki America Inc.
Hersteller: Sanyo Denki America Inc.Description: FAN AXIAL 60X20MM 12VDC WIRE
Features: PWM Control, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 12VDC
Size / Dimension: Square - 60mm L x 60mm H
Bearing Type: Ball
RPM: 6850 RPM
Air Flow: 31.1 CFM (0.871m³/min)
Width: 20.00mm
Weight: 0.154 lb (69.85 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 4 Wire Leads
Approval Agency: CSA, TUV, UL
Fan Type: Tubeaxial
Noise: 43.0dB(A)
Static Pressure: 0.500 in H2O (124.5 Pa)
Part Status: Active
Power (Watts): 3.12 W
auf Bestellung 2099 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 31.96 EUR |
| 10+ | 26.22 EUR |
| 25+ | 24.04 EUR |
| 50+ | 22.47 EUR |
| 100+ | 22.23 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 9GA0612P6G001 Sanyo Denki America Inc.
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 60x60x20mm; 52.8m3/h; 43dBA; ball; 6850rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 10.8...13.2V DC, Fan dimensions: 60x60x20mm, Power consumption: 3.12W, Current rating: 0.26A, Fan efficiency: 52.8m3/h, Noise level: 43dBA, Kind of Bearing: ball, Rotational rate/speed: 6850rpm, Min. insulation resistance: 10MΩ, Impeller material: plastic, Enclosure material: plastic, Leads: leads x4, Operating temperature: -20...70°C, Flammability rating: UL94V-0, Additional functions: lock sensor; PWM; reverse polarity protection, Kind of material: flame retardant, Lead length: 0.3m, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 9GA0612P6G001 nach Preis ab 18.25 EUR bis 44.72 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9GA0612P6G001 | Hersteller : Sanyo Denki |
DC Fans DC Axial Fan, 60x60x20mm, 12VDC, High Performance, Low Power, Tachometer, PWM |
auf Bestellung 199 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
9GA0612P6G001 | Hersteller : Sanyo Denki |
DC Fan Axial Ball Bearing 12V 10.8V to 13.2V 31.1CFM 43dB 60 X 60 X 20mm Low Noise/Low Power Consumption/High Air Flow/High Static Pressure |
auf Bestellung 138 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
|
|
9GA0612P6G001 | Hersteller : Sanyo Denki |
DC Fan Axial Ball Bearing 12V 10.8V to 13.2V 31.1CFM 43dB 60 X 60 X 20mm Low Noise/Low Power Consumption/High Air Flow/High Static Pressure |
auf Bestellung 20 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
 |
9GA0612P6G001 | Hersteller : SANYO DENKI |
Description: SANYO DENKI - 9GA0612P6G001 - DC-Axiallüfter, 12 V, Quadratisch, 60 mm, 20 mm, Kugellager, 31.1 cu.ft/min tariffCode: 84145925 Stromanschluss: 4 Anschlussdrähte rohsCompliant: Y-EX hazardous: false rohsPhthalatesCompliant: YES Art des Lagers: Kugellager Nennleistung: 2.88W IP-Schutzart: - usEccn: EAR99 Luftstrom - m3/min: 0.88m³/min Nennstrom: 260mA Außentiefe: 20mm Geräuschentwicklung: 43dBA euEccn: NLR Luftstrom - CFM: 31.1cu.ft/min Lüfterrahmen: Quadratisch Produktpalette: San Ace 60 GA productTraceability: No Rahmengröße: 60mm Versorgungsspannung, V DC: 12V Nenndrehzahl: 6850rpm SVHC: To Be Advised |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||
| 9GA0612P6G001 | Hersteller : SANYO DENKI |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 60x60x20mm; 52.8m3/h; 43dBA; ball; 6850rpm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 10.8...13.2V DC Fan dimensions: 60x60x20mm Power consumption: 3.12W Current rating: 0.26A Fan efficiency: 52.8m3/h Noise level: 43dBA Kind of Bearing: ball Rotational rate/speed: 6850rpm Min. insulation resistance: 10MΩ Impeller material: plastic Enclosure material: plastic Leads: leads x4 Operating temperature: -20...70°C Flammability rating: UL94V-0 Additional functions: lock sensor; PWM; reverse polarity protection Kind of material: flame retardant Lead length: 0.3m Anzahl je Verpackung: 1 Stücke |
auf Bestellung 69 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||
| 9GA0612P6G001 | Hersteller : SANYO DENKI |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 60x60x20mm; 52.8m3/h; 43dBA; ball; 6850rpm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 10.8...13.2V DC Fan dimensions: 60x60x20mm Power consumption: 3.12W Current rating: 0.26A Fan efficiency: 52.8m3/h Noise level: 43dBA Kind of Bearing: ball Rotational rate/speed: 6850rpm Min. insulation resistance: 10MΩ Impeller material: plastic Enclosure material: plastic Leads: leads x4 Operating temperature: -20...70°C Flammability rating: UL94V-0 Additional functions: lock sensor; PWM; reverse polarity protection Kind of material: flame retardant Lead length: 0.3m |
auf Bestellung 69 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
|
|
9GA0612P6G001 | Hersteller : Sanyo Denki |
DC Fan Axial Ball Bearing 12V 10.8V to 13.2V 31.1CFM 43dB 60 X 60 X 20mm Low Noise/Low Power Consumption/High Air Flow/High Static Pressure |
Produkt ist nicht verfügbar |
