Produkte > SANYO DENKI > 9GT1224P1S001
9GT1224P1S001

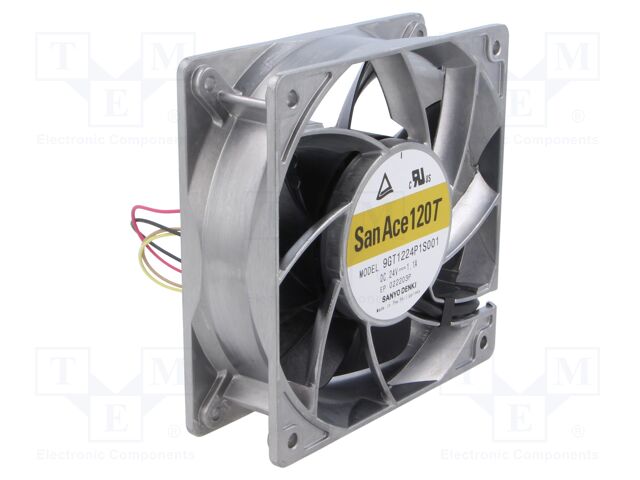

9GT1224P1S001 SANYO DENKI


pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA1FD1D7097F100C7&compId=9GT1224P1S001.pdf?ci_sign=b59e0793a1fed1c5a09c1f79accc1b354fba7dff Hersteller: SANYO DENKI
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 120x120x38mm; 360m3/h; 58dBA; ball; 5600rpm
Supply voltage: 24V DC
Operating temperature: -40...85°C
Additional functions: lock sensor; PWM; reverse polarity protection
Rotational rate/speed: 5600rpm
Power consumption: 26.4W
Lead length: 0.3m
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: aluminium
Current rating: 1.1A
Leads: leads x4
Operating voltage: 18...27.6V DC
Type of fan: DC
Fan dimensions: 120x120x38mm
Impeller material: plastic
Flammability rating: UL94V-1
Kind of Bearing: ball
Fan efficiency: 360m3/h
Noise level: 58dBA
Anzahl je Verpackung: 1 Stücke
auf Bestellung 16 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+103.82 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 9GT1224P1S001 SANYO DENKI

Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 120x120x38mm; 360m3/h; 58dBA; ball; 5600rpm, Supply voltage: 24V DC, Operating temperature: -40...85°C, Additional functions: lock sensor; PWM; reverse polarity protection, Rotational rate/speed: 5600rpm, Power consumption: 26.4W, Lead length: 0.3m, Kind of fan: axial, Min. insulation resistance: 10MΩ, Enclosure material: aluminium, Current rating: 1.1A, Leads: leads x4, Operating voltage: 18...27.6V DC, Type of fan: DC, Fan dimensions: 120x120x38mm, Impeller material: plastic, Flammability rating: UL94V-1, Kind of Bearing: ball, Fan efficiency: 360m3/h, Noise level: 58dBA, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 9GT1224P1S001 nach Preis ab 103.82 EUR bis 252.05 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
9GT1224P1S001 9GT1224P1S001 Hersteller : SANYO DENKI pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA1FD1D7097F100C7&compId=9GT1224P1S001.pdf?ci_sign=b59e0793a1fed1c5a09c1f79accc1b354fba7dff Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 120x120x38mm; 360m3/h; 58dBA; ball; 5600rpm
Supply voltage: 24V DC
Operating temperature: -40...85°C
Additional functions: lock sensor; PWM; reverse polarity protection
Rotational rate/speed: 5600rpm
Power consumption: 26.4W
Lead length: 0.3m
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: aluminium
Current rating: 1.1A
Leads: leads x4
Operating voltage: 18...27.6V DC
Type of fan: DC
Fan dimensions: 120x120x38mm
Impeller material: plastic
Flammability rating: UL94V-1
Kind of Bearing: ball
Fan efficiency: 360m3/h
Noise level: 58dBA
auf Bestellung 16 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+103.82 EUR
Im Einkaufswagen  Stück im Wert von  UAH
9GT1224P1S001 9GT1224P1S001 Hersteller : Sanyo Denki San_Ace_120GT38_E-1283705.pdf DC Fans DC Fan, 120x120x38mm, 24VDC, 212CFM, Wide Temp Range, Ribless, Ball, Tach/PWM
auf Bestellung 25 Stücke:
Lieferzeit 495-499 Tag (e)
Anzahl Preis
1+165.39 EUR
10+138.81 EUR
21+138.79 EUR
Im Einkaufswagen  Stück im Wert von  UAH
9GT1224P1S001 9GT1224P1S001 Hersteller : Sanyo Denki America Inc. page=120GT38 Description: FAN AXIAL 119X38MM 24VDC WIRE
Features: PWM Control, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 24VDC
Size / Dimension: Square - 119mm L x 119mm H
Bearing Type: Ball
RPM: 5600 RPM
Air Flow: 211.8 CFM (5.93m³/min)
Width: 38.00mm
Weight: 0.926 lb (420.03 g)
Operating Temperature: -40 ~ 185°F (-40 ~ 85°C)
Termination: 4 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 58.0dB(A)
Static Pressure: 1.080 in H2O (269.0 Pa)
Power (Watts): 26.4 W
auf Bestellung 269 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+252.05 EUR
21+216.49 EUR
42+209.13 EUR
63+204.95 EUR
Im Einkaufswagen  Stück im Wert von  UAH
