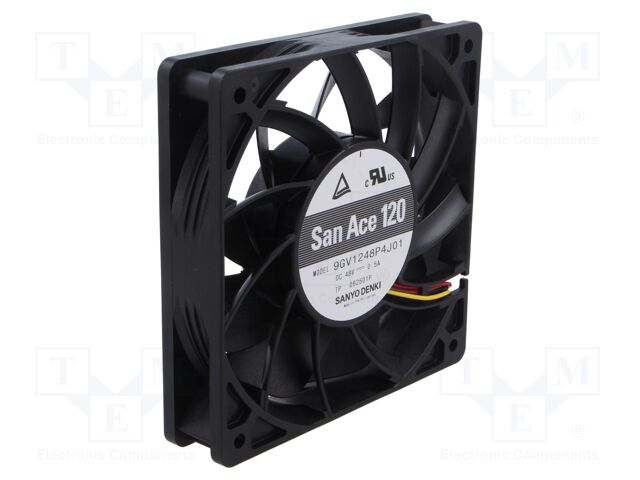

9GV1248P4J01 Sanyo Denki America Inc.
Hersteller: Sanyo Denki America Inc.
Description: FAN AXIAL 119X25.4MM 48VDC WIRE
Features: PWM Control, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 48VDC
Size / Dimension: Square - 119mm L x 119mm H
Bearing Type: Ball
RPM: 5400 RPM
Air Flow: 180.0 CFM (5.04m³/min)
Width: 25.40mm
Weight: 0.573 lb (260.00 g)
Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
Termination: 4 Wire Leads
Approval Agency: CSA, TUV, UL
Fan Type: Tubeaxial
Noise: 59.0dB(A)
Static Pressure: 1.015 in H2O (252.8 Pa)
Part Status: Active
Power (Watts): 24 W
| Anzahl | Privatkunde |
|---|---|
| 1+ | 127.01 EUR |
| 10+ | 103.15 EUR |
| 30+ | 93.81 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details 9GV1248P4J01 Sanyo Denki America Inc.
Category: DC48V Fans, Description: Fan: DC; 120x120x25mm; axial; 48VDC; 306.6m3/h; 59dBA; ball; 5400rpm, Supply voltage: 48V DC, Current rating: 0.5A, Leads: leads x4, Fan dimensions: 120x120x25mm, Min. insulation resistance: 10MΩ, Kind of material: flame retardant, Power consumption: 24W, Impeller material: plastic, Type of fan: DC, Noise level: 59dBA, Additional functions: lock sensor; PWM; reverse polarity protection, Lead length: 0.3m, Operating voltage: 40.8...55.2V DC, Kind of fan: axial, Flammability rating: UL94V-1, Fan efficiency: 306.6m3/h, Operating temperature: -20...70°C, Rotational rate/speed: 5400rpm, Enclosure material: plastic, Kind of Bearing: ball.
Weitere Produktangebote 9GV1248P4J01 nach Preis ab 99.01 EUR bis 165.03 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9GV1248P4J01 | Sanyo Denki |
DC Fans DC Axial Fan, 120x120x25mm, 48VDC, Guide Vane, Tachometer, PWM |
auf Bestellung 108 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
9GV1248P4J01 | Sanyo Denki |
DC Fan Axial Ball Bearing 48V 40.8V to 55.2V 180CFM 59dB 120 X 120 X 25.4mm |
auf Bestellung 29 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
 |
9GV1248P4J01 | SANYO DENKI |
Category: DC48V Fans Description: Fan: DC; 120x120x25mm; axial; 48VDC; 306.6m3/h; 59dBA; ball; 5400rpm Supply voltage: 48V DC Current rating: 0.5A Leads: leads x4 Fan dimensions: 120x120x25mm Min. insulation resistance: 10MΩ Kind of material: flame retardant Power consumption: 24W Impeller material: plastic Type of fan: DC Noise level: 59dBA Additional functions: lock sensor; PWM; reverse polarity protection Lead length: 0.3m Operating voltage: 40.8...55.2V DC Kind of fan: axial Flammability rating: UL94V-1 Fan efficiency: 306.6m3/h Operating temperature: -20...70°C Rotational rate/speed: 5400rpm Enclosure material: plastic Kind of Bearing: ball |
auf Bestellung 58 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| 9GV1248P4J01 |
|
Hersteller: Sanyo Denki
DC Fans DC Axial Fan, 120x120x25mm, 48VDC, Guide Vane, Tachometer, PWM
DC Fans DC Axial Fan, 120x120x25mm, 48VDC, Guide Vane, Tachometer, PWM
auf Bestellung 108 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 129.94 EUR |
| 10+ | 112.97 EUR |
| 30+ | 99.38 EUR |
| 60+ | 99.01 EUR |
| 9GV1248P4J01 |
|
Hersteller: Sanyo Denki
DC Fan Axial Ball Bearing 48V 40.8V to 55.2V 180CFM 59dB 120 X 120 X 25.4mm
DC Fan Axial Ball Bearing 48V 40.8V to 55.2V 180CFM 59dB 120 X 120 X 25.4mm
auf Bestellung 29 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 165.03 EUR |
| 5+ | 155.32 EUR |
| 8+ | 135.28 EUR |
| 15+ | 117.88 EUR |
| 23+ | 113.94 EUR |
| 9GV1248P4J01 |
|
Hersteller: SANYO DENKI
Category: DC48V Fans
Description: Fan: DC; 120x120x25mm; axial; 48VDC; 306.6m3/h; 59dBA; ball; 5400rpm
Supply voltage: 48V DC
Current rating: 0.5A
Leads: leads x4
Fan dimensions: 120x120x25mm
Min. insulation resistance: 10MΩ
Kind of material: flame retardant
Power consumption: 24W
Impeller material: plastic
Type of fan: DC
Noise level: 59dBA
Additional functions: lock sensor; PWM; reverse polarity protection
Lead length: 0.3m
Operating voltage: 40.8...55.2V DC
Kind of fan: axial
Flammability rating: UL94V-1
Fan efficiency: 306.6m3/h
Operating temperature: -20...70°C
Rotational rate/speed: 5400rpm
Enclosure material: plastic
Kind of Bearing: ball
Category: DC48V Fans
Description: Fan: DC; 120x120x25mm; axial; 48VDC; 306.6m3/h; 59dBA; ball; 5400rpm
Supply voltage: 48V DC
Current rating: 0.5A
Leads: leads x4
Fan dimensions: 120x120x25mm
Min. insulation resistance: 10MΩ
Kind of material: flame retardant
Power consumption: 24W
Impeller material: plastic
Type of fan: DC
Noise level: 59dBA
Additional functions: lock sensor; PWM; reverse polarity protection
Lead length: 0.3m
Operating voltage: 40.8...55.2V DC
Kind of fan: axial
Flammability rating: UL94V-1
Fan efficiency: 306.6m3/h
Operating temperature: -20...70°C
Rotational rate/speed: 5400rpm
Enclosure material: plastic
Kind of Bearing: ball
auf Bestellung 58 Stücke:
Lieferzeit 14-21 Tag (e)
