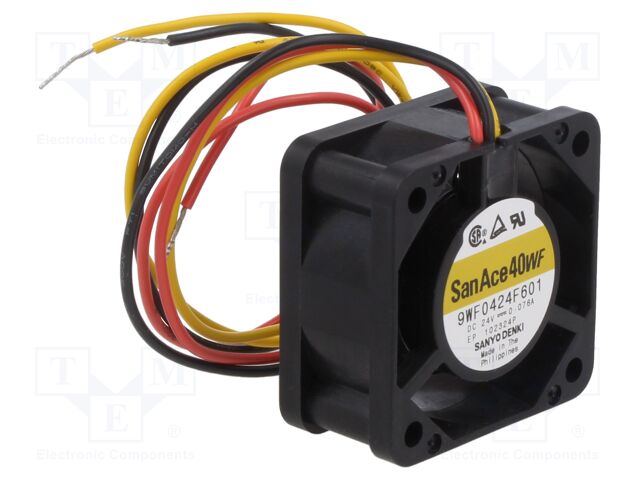

9WF0424F601 SANYO DENKI
Hersteller: SANYO DENKI
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 40x40x20mm; 13.2m3/h; 37dBA; ball; 11000rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 20.4...27.6V DC
Fan dimensions: 40x40x20mm
Power consumption: 1.82W
Current rating: 76mA
Fan efficiency: 13.2m3/h
Noise level: 37dBA
Kind of Bearing: ball
Rotational rate/speed: 11000rpm
Min. insulation resistance: 10MΩ
Impeller material: plastic
Enclosure material: plastic
Leads: leads x3
Lead length: 0.32m
Operating temperature: -20...70°C
Flammability rating: UL94V-0
Additional functions: lock sensor; resistant to oil mist; reverse polarity protection
Kind of material: flame retardant
Produktrezensionen
Produktbewertung abgeben
Technische Details 9WF0424F601 SANYO DENKI
Description: SANYO DENKI - 9WF0424F601 - DC-Axiallüfter, 24 V, Quadratisch, 40 mm, 20 mm, Kugellager, 7.77 cu.ft/min, tariffCode: 84145925, Versorgungsspannung: 24VDC, Stromanschluss: 3 Anschlussdrähte, Sensorausgang, rohsCompliant: YES, hazardous: false, rohsPhthalatesCompliant: YES, Luftdurchsatz, imperial: 7.77cu.ft/min, Luftdurchsatz, metrisch: 0.22m³/min, Art des Lagers: Kugellager, Nennleistung: 1.82W, IP-Schutzart: -, usEccn: EAR99, Spannungstyp: DC, Luftstrom - m3/min: 0.22m³/min, Nennstrom: 76mA, Außentiefe: 20mm, Geräuschentwicklung: 37dBA, euEccn: NLR, Luftstrom - CFM: 7.77cu.ft/min, Lüfterrahmen: Quadratisch, Produktpalette: San Ace 40WF, productTraceability: No, Rahmengröße: 40mm, Versorgungsspannung, V DC: 24V, Nenndrehzahl: 11000rpm, SVHC: Lead (21-Jan-2025).
Weitere Produktangebote 9WF0424F601 nach Preis ab 31.5 EUR bis 47.46 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9WF0424F601 | Sanyo Denki America Inc. |
Description: FAN AXIAL 40X20MM 24VDC WIRE Power (Watts): 1.82 W Part Status: Active Static Pressure: 0.252 in H2O (62.8 Pa) Noise: 37.0dB(A) Fan Type: Tubeaxial Ingress Protection: Oil Resistant Approval Agency: CSA, TUV, UL Termination: 3 Wire Leads Operating Temperature: -4 ~ 158°F (-20 ~ 70°C) Weight: 0.111 lb (50.35 g) Width: 20.00mm Air Flow: 7.8 CFM (0.218m³/min) RPM: 11000 RPM Bearing Type: Ball Size / Dimension: Square - 40mm L x 40mm H Voltage - Rated: 24VDC Features: Speed Sensor (Tach) Packaging: Box |
auf Bestellung 112 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
9WF0424F601 | Sanyo Denki |
DC Fans DC Axial Fan, 40x40x20mm, 24VDC, Oil Proof, Tachometer |
auf Bestellung 70 Stücke: Lieferzeit 10-14 Tag (e) |
|
| 9WF0424F601 |
|
Hersteller: Sanyo Denki America Inc.
Description: FAN AXIAL 40X20MM 24VDC WIRE
Power (Watts): 1.82 W
Part Status: Active
Static Pressure: 0.252 in H2O (62.8 Pa)
Noise: 37.0dB(A)
Fan Type: Tubeaxial
Ingress Protection: Oil Resistant
Approval Agency: CSA, TUV, UL
Termination: 3 Wire Leads
Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
Weight: 0.111 lb (50.35 g)
Width: 20.00mm
Air Flow: 7.8 CFM (0.218m³/min)
RPM: 11000 RPM
Bearing Type: Ball
Size / Dimension: Square - 40mm L x 40mm H
Voltage - Rated: 24VDC
Features: Speed Sensor (Tach)
Packaging: Box
Description: FAN AXIAL 40X20MM 24VDC WIRE
Power (Watts): 1.82 W
Part Status: Active
Static Pressure: 0.252 in H2O (62.8 Pa)
Noise: 37.0dB(A)
Fan Type: Tubeaxial
Ingress Protection: Oil Resistant
Approval Agency: CSA, TUV, UL
Termination: 3 Wire Leads
Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
Weight: 0.111 lb (50.35 g)
Width: 20.00mm
Air Flow: 7.8 CFM (0.218m³/min)
RPM: 11000 RPM
Bearing Type: Ball
Size / Dimension: Square - 40mm L x 40mm H
Voltage - Rated: 24VDC
Features: Speed Sensor (Tach)
Packaging: Box
auf Bestellung 112 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 44.9 EUR |
| 10+ | 36.78 EUR |
| 25+ | 33.71 EUR |
| 70+ | 31.5 EUR |
| 9WF0424F601 |
|
Hersteller: Sanyo Denki
DC Fans DC Axial Fan, 40x40x20mm, 24VDC, Oil Proof, Tachometer
DC Fans DC Axial Fan, 40x40x20mm, 24VDC, Oil Proof, Tachometer
auf Bestellung 70 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 47.46 EUR |
| 10+ | 41.89 EUR |
| 25+ | 40.32 EUR |
| 50+ | 37.64 EUR |
| 70+ | 37.51 EUR |
