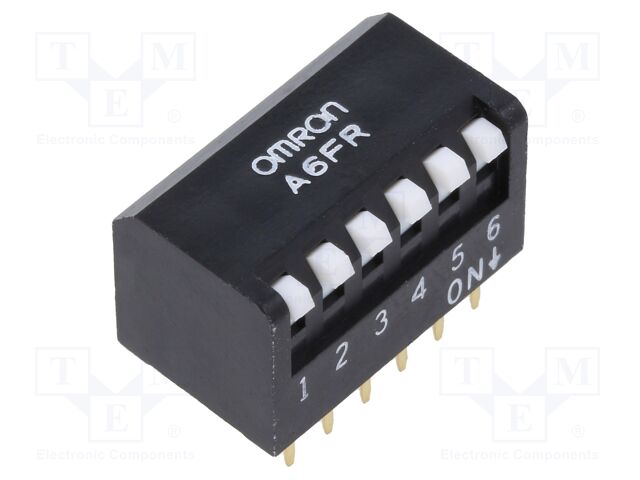

A6FR-6101 OMRON Electronic Components
Hersteller: OMRON Electronic ComponentsCategory: Dip-Switches
Description: Switch: DIP-SWITCH; Poles number: 6; OFF-ON; 0.025A/24VDC; Pos: 2
Mounting: THT
Terminal pitch: 2.54mm
Operating temperature: -20...70°C
Switches features: "piano" short actuator
Button shape: rectangular
Kind of package: tube
Contacts configuration: SPST
Body dimensions: 16.8x9.9x10.2mm
DC contacts rating @R: 25mA / 24V DC
Max. contact resistance:: 200mΩ
Operating Force: 0.29N
Poles number: 6
Number of positions: 2
Mechanical durability: 1000 cycles
Min. insulation resistance: 0.1GΩ
Actuator colour: white
Stable positions number: bistable; 2
Type of switch: DIP-SWITCH
Leads: terminal
IP rating: IP40
Illumination: none
Switching method: OFF-ON
auf Bestellung 44 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 44+ | 1.63 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details A6FR-6101 OMRON Electronic Components
Category: Dip-Switches, Description: Switch: DIP-SWITCH; Poles number: 6; OFF-ON; 0.025A/24VDC; Pos: 2, Mounting: THT, Terminal pitch: 2.54mm, Operating temperature: -20...70°C, Switches features: "piano" short actuator, Button shape: rectangular, Kind of package: tube, Contacts configuration: SPST, Body dimensions: 16.8x9.9x10.2mm, DC contacts rating @R: 25mA / 24V DC, Max. contact resistance:: 200mΩ, Operating Force: 0.29N, Poles number: 6, Number of positions: 2, Mechanical durability: 1000 cycles, Min. insulation resistance: 0.1GΩ, Actuator colour: white, Stable positions number: bistable; 2, Type of switch: DIP-SWITCH, Leads: terminal, IP rating: IP40, Illumination: none, Switching method: OFF-ON, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote A6FR-6101 nach Preis ab 1.37 EUR bis 2.43 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
A6FR-6101 | Hersteller : OMRON Electronic Components |
Category: Dip-Switches Description: Switch: DIP-SWITCH; Poles number: 6; OFF-ON; 0.025A/24VDC; Pos: 2 Mounting: THT Terminal pitch: 2.54mm Operating temperature: -20...70°C Switches features: "piano" short actuator Button shape: rectangular Kind of package: tube Contacts configuration: SPST Body dimensions: 16.8x9.9x10.2mm DC contacts rating @R: 25mA / 24V DC Max. contact resistance:: 200mΩ Operating Force: 0.29N Poles number: 6 Number of positions: 2 Mechanical durability: 1000 cycles Min. insulation resistance: 0.1GΩ Actuator colour: white Stable positions number: bistable; 2 Type of switch: DIP-SWITCH Leads: terminal IP rating: IP40 Illumination: none Switching method: OFF-ON Anzahl je Verpackung: 1 Stücke |
auf Bestellung 44 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||||
 |
A6FR-6101 | Hersteller : Omron Electronics |
DIP Switches/SIP Switches 6 Pole Short Actuator (white) |
auf Bestellung 1327 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
A6FR-6101 | Hersteller : Omron Electronics Inc-EMC Div |
Description: SWITCH PIANO DIP SPST 0.025A 24V Packaging: Tube Voltage Rating: 24VDC Current Rating (Amps): 25mA Mounting Type: Through Hole, Right Angle Pitch: 0.100" (2.54mm), Full Circuit: SPST Operating Temperature: -20°C ~ 70°C Termination Style: PC Pin Actuator Type: Piano Height Above Board: 0.402" (10.20mm) Actuator Level: Flush, Recessed Washable: No Number of Positions: 6 |
auf Bestellung 2235 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
A6FR-6101 | Hersteller : OMRON |
Description: OMRON - A6FR-6101 - DIP-/SIP-Schalter, kurzer Betätiger, 6 Schaltkreis(e), Klaviertaste, Durchsteckmontage, SPST-NO tariffCode: 85365019 Schalterbetätiger: Klaviertaste Schaltertyp: DIP rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 DC-Kontaktspannung, max.: 24V euEccn: NLR DC-Kontaktstrom, max.: 25mA Schaltermontage: Durchsteckmontage Produktpalette: A6FR Series productTraceability: No Anzahl der Schaltkreise: 6Schaltkreis(e) Kontaktkonfiguration: SPST-NO SVHC: To Be Advised |
auf Bestellung 55 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
 |
A6FR-6101 | Hersteller : OMRON / PARTNER STOCK |
Description: OMRON / PARTNER STOCK - A6FR-6101 - DIP-/SIP-Schalter, 6 Schaltkreis(e), Klaviertaste, Durchsteckmontage, SPST-NO, 24 V, 25 mA tariffCode: 85365080 Schaltermontage: Durchsteckmontage productTraceability: No Schaltertyp: DIP nicht gekapselt rohsCompliant: YES Kontaktkonfiguration: SPST-NO euEccn: NLR Anzahl der Schaltkreise: 6Schaltkreis(e) hazardous: false DC-Kontaktspannung, max.: 24V rohsPhthalatesCompliant: YES DC-Kontaktstrom, max.: 25mA usEccn: EAR99 Schalterbetätiger: Klaviertaste Produktpalette: A6FR Series SVHC: To Be Advised |
auf Bestellung 119 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
 |
A6FR-6101 | Hersteller : Omron |
Switch DIP OFF ON SPST 6 Short Piano 0.025A 24VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube |
Produkt ist nicht verfügbar |
