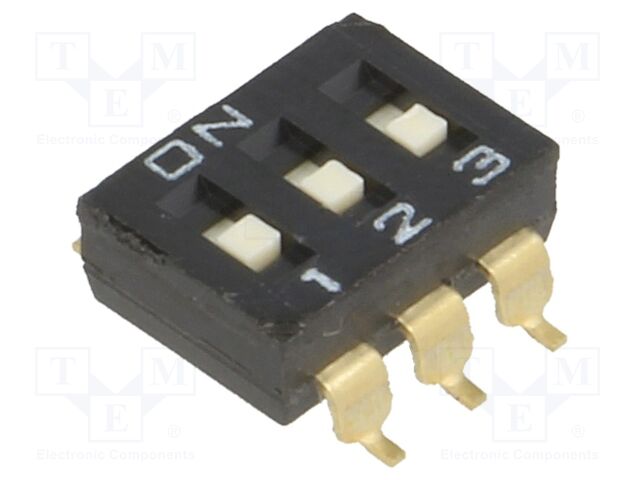

A6S-3102-H OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Dip-Switches
Description: Switch: DIP-SWITCH; Poles number: 3; ON-OFF; 0.025A/24VDC; Pos: 2
Type of switch: DIP-SWITCH
Poles number: 3
Switching method: ON-OFF
DC contacts rating @R: 25mA / 24V DC
Number of positions: 2
Stable positions number: 2
Mounting: SMT
Operating temperature: -20...70°C
Min. insulation resistance: 0.1GΩ
Max. contact resistance:: 200mΩ
Body dimensions: 8.56x6.2x3mm
Electrical life: 1000 cycles
Mechanical durability: 1000 cycles
Terminal pitch: 2.54mm
Overall length: 8.56mm
Row pitch: 8.9mm
Switches features: flat actuator; with seal tape
IP rating: IP40
Manufacturer series: A6S-H
Contact plating: gold-plated
Produktrezensionen
Produktbewertung abgeben
Technische Details A6S-3102-H OMRON Electronic Components
Category: Dip-Switches, Description: Switch: DIP-SWITCH; Poles number: 3; ON-OFF; 0.025A/24VDC; Pos: 2, Type of switch: DIP-SWITCH, Poles number: 3, Switching method: ON-OFF, DC contacts rating @R: 25mA / 24V DC, Number of positions: 2, Stable positions number: 2, Mounting: SMT, Operating temperature: -20...70°C, Min. insulation resistance: 0.1GΩ, Max. contact resistance:: 200mΩ, Body dimensions: 8.56x6.2x3mm, Electrical life: 1000 cycles, Mechanical durability: 1000 cycles, Terminal pitch: 2.54mm, Overall length: 8.56mm, Row pitch: 8.9mm, Switches features: flat actuator; with seal tape, IP rating: IP40, Manufacturer series: A6S-H, Contact plating: gold-plated.
Weitere Produktangebote A6S-3102-H nach Preis ab 1.39 EUR bis 3.38 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A6S-3102-H | Omron Electronics |
DIP Switches/SIP Switches Dip Switch |
auf Bestellung 986 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
A6S-3102-H | Omron Electronics Inc-EMC Div |
Description: SWITCH SLIDE DIP SPST 0.025A 24V Features: Tape Seal Packaging: Tube Contact Finish: Gold Voltage Rating: 24VDC Current Rating (Amps): 25mA Mounting Type: Surface Mount Pitch: 0.100" (2.54mm), Full Circuit: SPST Operating Temperature: -20°C ~ 70°C Termination Style: Gull Wing Actuator Type: Slide (Standard) Height Above Board: 0.146" (3.70mm) Actuator Level: Flush, Recessed Washable: Yes Number of Positions: 3 |
auf Bestellung 15022 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
A6S3102H | OMRON ELECTRONIC COMPONENTS |
Description: OMRON ELECTRONIC COMPONENTS - A6S3102H - DIP-/SIP-Schalter, 3 Schaltkreis(e), Schiebeschalter, Oberflächenmontage, SPST, 24 VDC, 25 mA tariffCode: 85365019 Schalterbetätiger: Schiebeschalter rohsCompliant: YES Schaltertyp: DIP gekapselt hazardous: false rohsPhthalatesCompliant: YES isCanonical: Y usEccn: EAR99 DC-Kontaktspannung, max.: 24VDC euEccn: NLR DC-Kontaktstrom, max.: 25mA Schaltermontage: Oberflächenmontage Produktpalette: A6S-H Series productTraceability: No Anzahl der Schaltkreise: 3Schaltkreis(e) Kontaktkonfiguration: SPST |
auf Bestellung 418 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| A6S-3102-H |
|
Hersteller: Omron Electronics
DIP Switches/SIP Switches Dip Switch
DIP Switches/SIP Switches Dip Switch
auf Bestellung 986 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 2.22 EUR |
| 10+ | 1.88 EUR |
| 25+ | 1.64 EUR |
| 110+ | 1.53 EUR |
| 275+ | 1.43 EUR |
| 550+ | 1.39 EUR |
| A6S-3102-H |
|
Hersteller: Omron Electronics Inc-EMC Div
Description: SWITCH SLIDE DIP SPST 0.025A 24V
Features: Tape Seal
Packaging: Tube
Contact Finish: Gold
Voltage Rating: 24VDC
Current Rating (Amps): 25mA
Mounting Type: Surface Mount
Pitch: 0.100" (2.54mm), Full
Circuit: SPST
Operating Temperature: -20°C ~ 70°C
Termination Style: Gull Wing
Actuator Type: Slide (Standard)
Height Above Board: 0.146" (3.70mm)
Actuator Level: Flush, Recessed
Washable: Yes
Number of Positions: 3
Description: SWITCH SLIDE DIP SPST 0.025A 24V
Features: Tape Seal
Packaging: Tube
Contact Finish: Gold
Voltage Rating: 24VDC
Current Rating (Amps): 25mA
Mounting Type: Surface Mount
Pitch: 0.100" (2.54mm), Full
Circuit: SPST
Operating Temperature: -20°C ~ 70°C
Termination Style: Gull Wing
Actuator Type: Slide (Standard)
Height Above Board: 0.146" (3.70mm)
Actuator Level: Flush, Recessed
Washable: Yes
Number of Positions: 3
auf Bestellung 15022 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 6+ | 3.38 EUR |
| 10+ | 2.83 EUR |
| 55+ | 2.46 EUR |
| 110+ | 2.32 EUR |
| 275+ | 2.16 EUR |
| 550+ | 2.04 EUR |
| 1045+ | 1.96 EUR |
| A6S3102H |
|
Hersteller: OMRON ELECTRONIC COMPONENTS
Description: OMRON ELECTRONIC COMPONENTS - A6S3102H - DIP-/SIP-Schalter, 3 Schaltkreis(e), Schiebeschalter, Oberflächenmontage, SPST, 24 VDC, 25 mA
tariffCode: 85365019
Schalterbetätiger: Schiebeschalter
rohsCompliant: YES
Schaltertyp: DIP gekapselt
hazardous: false
rohsPhthalatesCompliant: YES
isCanonical: Y
usEccn: EAR99
DC-Kontaktspannung, max.: 24VDC
euEccn: NLR
DC-Kontaktstrom, max.: 25mA
Schaltermontage: Oberflächenmontage
Produktpalette: A6S-H Series
productTraceability: No
Anzahl der Schaltkreise: 3Schaltkreis(e)
Kontaktkonfiguration: SPST
Description: OMRON ELECTRONIC COMPONENTS - A6S3102H - DIP-/SIP-Schalter, 3 Schaltkreis(e), Schiebeschalter, Oberflächenmontage, SPST, 24 VDC, 25 mA
tariffCode: 85365019
Schalterbetätiger: Schiebeschalter
rohsCompliant: YES
Schaltertyp: DIP gekapselt
hazardous: false
rohsPhthalatesCompliant: YES
isCanonical: Y
usEccn: EAR99
DC-Kontaktspannung, max.: 24VDC
euEccn: NLR
DC-Kontaktstrom, max.: 25mA
Schaltermontage: Oberflächenmontage
Produktpalette: A6S-H Series
productTraceability: No
Anzahl der Schaltkreise: 3Schaltkreis(e)
Kontaktkonfiguration: SPST
auf Bestellung 418 Stücke:
Lieferzeit 14-21 Tag (e)
