Produkte > PANASONIC > ABS1114449

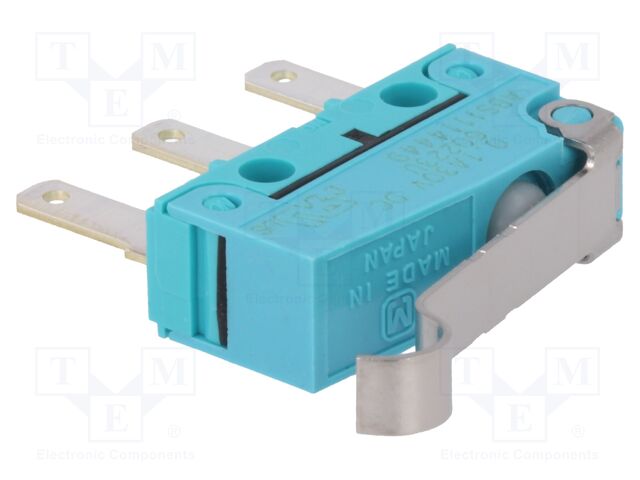

ABS1114449 PANASONIC

pVersion=0046&contRep=ZT&docId=005056AB752F1EE7A6A90E825A92A74A&compId=ds_abs_en.pdf?ci_sign=dec54aa4a90d0d0166108d1f0a87326649034a52

Hersteller: PANASONIC
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 0.1A/250VAC; 0.1A/30VDC; SPDT; ON-(ON)
Leads: for soldering
Contact material: CuNi + Au
IP rating: IP67
Type of switch: microswitch SNAP ACTION
Switching method: ON-(ON)
Switches features: with lever with roller simulation
Contacts configuration: SPDT
Operating temperature: -40...85°C
Body dimensions: 19.8x6.4x10.1mm
Max. contact resistance:: 100mΩ
DC contacts rating @R: 0.1A / 30V DC
AC contacts rating @R: 0.1A / 250V AC
Operating Force: 0.34N
Stable positions number: 1
Number of positions: 2
Mechanical durability: 5000000 cycles
Electrical life: 200000 cycles
Manufacturer series: ABS
Min. insulation resistance: 0.1GΩ
Anzahl je Verpackung: 1000 Stücke

Produkt ist nicht verfügbar

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details ABS1114449 PANASONIC

Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 0.1A/250VAC; 0.1A/30VDC; SPDT; ON-(ON), Leads: for soldering, Contact material: CuNi + Au, IP rating: IP67, Type of switch: microswitch SNAP ACTION, Switching method: ON-(ON), Switches features: with lever with roller simulation, Contacts configuration: SPDT, Operating temperature: -40...85°C, Body dimensions: 19.8x6.4x10.1mm, Max. contact resistance:: 100mΩ, DC contacts rating @R: 0.1A / 30V DC, AC contacts rating @R: 0.1A / 250V AC, Operating Force: 0.34N, Stable positions number: 1, Number of positions: 2, Mechanical durability: 5000000 cycles, Electrical life: 200000 cycles, Manufacturer series: ABS, Min. insulation resistance: 0.1GΩ, Anzahl je Verpackung: 1000 Stücke.

Weitere Produktangebote ABS1114449

Bezeichnung	Hersteller	Beschreibung	Verfügbarkeit	Preis
ABS1114449	Hersteller : Panasonic Electric Works	Description: ABS SWITCH ST SPDT SIM ROLLER	Produkt ist nicht verfügbar	Im Einkaufswagen Stück im Wert von UAH
ABS1114449	Hersteller : Panasonic	Basic / Snap Action Switches SPDT Hinge Simultd. Roller Lever QC	Produkt ist nicht verfügbar	Im Einkaufswagen Stück im Wert von UAH
ABS1114449	Hersteller : PANASONIC	Category: Microswitches SNAP ACTION Description: Microswitch SNAP ACTION; 0.1A/250VAC; 0.1A/30VDC; SPDT; ON-(ON) Leads: for soldering Contact material: CuNi + Au IP rating: IP67 Type of switch: microswitch SNAP ACTION Switching method: ON-(ON) Switches features: with lever with roller simulation Contacts configuration: SPDT Operating temperature: -40...85°C Body dimensions: 19.8x6.4x10.1mm Max. contact resistance:: 100mΩ DC contacts rating @R: 0.1A / 30V DC AC contacts rating @R: 0.1A / 250V AC Operating Force: 0.34N Stable positions number: 1 Number of positions: 2 Mechanical durability: 5000000 cycles Electrical life: 200000 cycles Manufacturer series: ABS Min. insulation resistance: 0.1GΩ	Produkt ist nicht verfügbar	Im Einkaufswagen Stück im Wert von UAH
