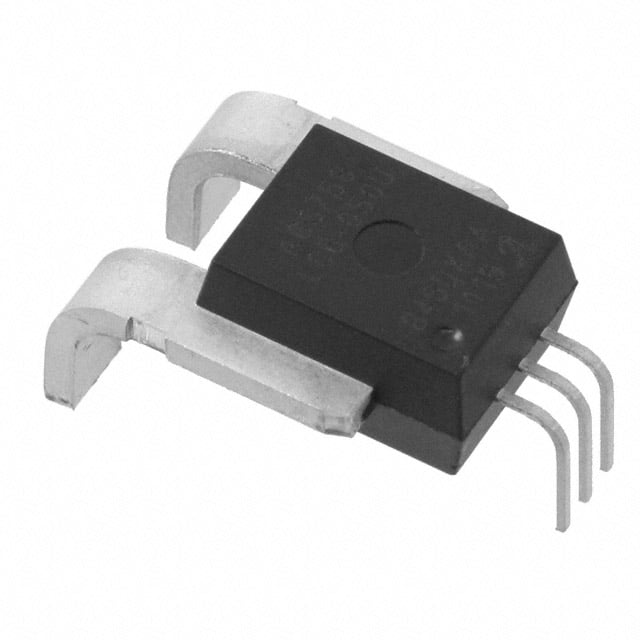

ACS758LCB-050B-PFF-T

Hersteller: Allegro MicroSystems
Open Loop Current Sensor AC/DC Current 5V 5-Pin Case CB-PFF Tube Automotive AEC-Q100

Hersteller: Allegro MicroSystems
Open Loop Current Sensor AC/DC Current 5V 5-Pin Case CB-PFF Tube Automotive AEC-Q100

Hersteller: Allegro MicroSystems
Board Mount Current Sensors For New Designs Use ACS772/3

Hersteller: Allegro MicroSystems
Description: CURRENT SENSOR HE/OL 50A 5-CB
Packaging: Tube
Package / Case: 5-CB Formed Leads, PFF
Polarization: Bidirectional
Sensitivity: 40mV/A
Mounting Type: Through Hole
Output: Ratiometric, Voltage
Frequency: DC ~ 120kHz
Accuracy: ±2%
Operating Temperature: -40°C ~ 150°C
Voltage - Supply: 3V ~ 5.5V
Response Time: 4µs
Sensor Type: Hall Effect, Open Loop
Linearity: ±1%
For Measuring: AC/DC
Current - Supply (Max): 13.5mA
Current - Sensing: 50A
Supplier Device Package: 5-CB Module
Grade: Automotive
Part Status: Active
Number of Channels: 1
Qualification: AEC-Q100

Hersteller: ALLEGRO MICROSYSTEMS
Description: ALLEGRO MICROSYSTEMS - ACS758LCB-050B-PFF-T - Stromsensor, Stromleiter, Bidirektional, -1.2%, PFF, 5 Pin(s)
tariffCode: 85423990
euEccn: NLR
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
Sensor-IC-Montage: Durchsteckmontage
Qualifikation: AEC-Q100
isCanonical: Y
MSL: -
Strommessrichtung: Bidirektional
Ruhestrom: 10mA
Betriebstemperatur, min.: -40°C
Isolationsspannung: 4.8kVrms
Versorgungsspannung, min.: 3V
Sensorgehäuse/-bauform: PFF
Bauform - Sensor: PFF
Gemessener Strom: 10mA
SVHC: No SVHC (17-Jan-2023)
Anzahl der Pins: 5Pin(s)
Produktpalette: -
Bandbreite: 120kHz
productTraceability: No
Genauigkeit: -1.2%
usEccn: EAR99
Versorgungsspannung, max.: 5.5V
Betriebstemperatur, max.: 150°C
