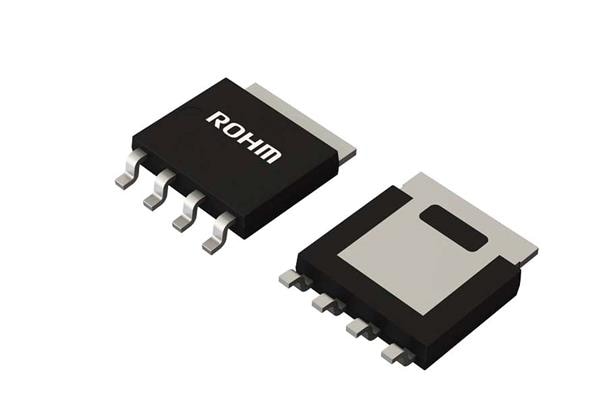

AG541EGS4FRATCB Rohm Semiconductor
| Anzahl | Privatkunde |
|---|---|
| 62+ | 2.82 EUR |
| 65+ | 2.68 EUR |
| 100+ | 2.52 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details AG541EGS4FRATCB Rohm Semiconductor
Description: PCH -40V -120A, HPLF5060T5LSAH,, Packaging: Tape & Reel (TR), Package / Case: SC-100, SOT-669, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 175°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: P-Channel, Current - Continuous Drain (Id) @ 25°C: 120A (Tc), Rds On (Max) @ Id, Vgs: 5.9mOhm @ 120A, 10V, Power Dissipation (Max): 125W (Tc), Vgs(th) (Max) @ Id: 2.5V @ 1.3mA, Supplier Device Package: HPLF5060T5LSAH, Grade: Automotive, Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V, Vgs (Max): +5V, -20V, Drain to Source Voltage (Vdss): 40 V, Gate Charge (Qg) (Max) @ Vgs: 96 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 5100 pF @ 20 V, Qualification: AEC-Q101.
Weitere Produktangebote AG541EGS4FRATCB nach Preis ab 2.09 EUR bis 5.97 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AG541EGS4FRATCB | Rohm Semiconductor |
 Description: PCH -40V -120A, HPLF5060T5LSAH,Packaging: Cut Tape (CT) Package / Case: SC-100, SOT-669 Mounting Type: Surface Mount Operating Temperature: -55°C ~ 175°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: P-Channel Current - Continuous Drain (Id) @ 25°C: 120A (Tc) Rds On (Max) @ Id, Vgs: 5.9mOhm @ 120A, 10V Power Dissipation (Max): 125W (Tc) Vgs(th) (Max) @ Id: 2.5V @ 1.3mA Supplier Device Package: HPLF5060T5LSAH Grade: Automotive Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V Vgs (Max): +5V, -20V Drain to Source Voltage (Vdss): 40 V Gate Charge (Qg) (Max) @ Vgs: 96 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 5100 pF @ 20 V Qualification: AEC-Q101 |
auf Bestellung 2990 Stücke: Lieferzeit 10-14 Tag (e) |
|
| AG541EGS4FRATCB |
|
Hersteller: Rohm Semiconductor
Description: PCH -40V -120A, HPLF5060T5LSAH,
Packaging: Cut Tape (CT)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
Rds On (Max) @ Id, Vgs: 5.9mOhm @ 120A, 10V
Power Dissipation (Max): 125W (Tc)
Vgs(th) (Max) @ Id: 2.5V @ 1.3mA
Supplier Device Package: HPLF5060T5LSAH
Grade: Automotive
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): +5V, -20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 96 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 5100 pF @ 20 V
Qualification: AEC-Q101
Description: PCH -40V -120A, HPLF5060T5LSAH,
Packaging: Cut Tape (CT)
Package / Case: SC-100, SOT-669
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
Rds On (Max) @ Id, Vgs: 5.9mOhm @ 120A, 10V
Power Dissipation (Max): 125W (Tc)
Vgs(th) (Max) @ Id: 2.5V @ 1.3mA
Supplier Device Package: HPLF5060T5LSAH
Grade: Automotive
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): +5V, -20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 96 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 5100 pF @ 20 V
Qualification: AEC-Q101
auf Bestellung 2990 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 4+ | 5.97 EUR |
| 10+ | 3.87 EUR |
| 100+ | 2.68 EUR |
| 500+ | 2.17 EUR |
| 1000+ | 2.09 EUR |
