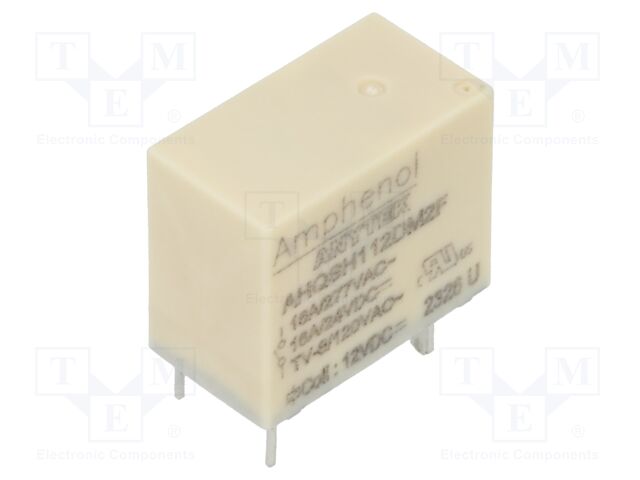

AHQSH112DM2F00G Amphenol Anytek
Hersteller: Amphenol Anytek
General Purpose Relays Commercial RelayRated Carrying Current :16AType of Sealing : Sealed and Waterproof TypeNumber of pole : one poleCoil Voltage : 12VCoil Type : New structure Standard DCContact Form : Form A Coil Insulation System : F- Class F (155C)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 2.81 EUR |
| 10+ | 2.67 EUR |
| 25+ | 2.4 EUR |
| 50+ | 2.34 EUR |
| 100+ | 2.23 EUR |
| 250+ | 2.01 EUR |
| 500+ | 1.95 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Mindestmenge:
2 Stücke
Produktrezensionen
Produktbewertung abgeben
Technische Details AHQSH112DM2F00G Amphenol Anytek
Description: RELAY GEN PURPOSE SPST 16A 12V, Packaging: Box, Mounting Type: Through Hole, Coil Voltage: 12VDC, Operating Temperature: -40°C ~ 105°C, Termination Style: PC Pin, Relay Type: General Purpose, Coil Current: 30 mA, Coil Type: Non Latching, Seal Rating: Sealed - Fully, Contact Material: Silver Alloy, Contact Form: SPST-NO (1 Form A), Contact Rating (Current): 16 A, Switching Voltage: 277VAC, 24VDC - Max, Must Release Voltage: 0.6 VDC, Must Operate Voltage: 9.6 VDC, Operate Time: 10 ms, Release Time: 5 ms, Part Status: Active, Coil Insulation: Class F, Load - Max Switching: 4432VA, 384W.
Weitere Produktangebote AHQSH112DM2F00G nach Preis ab 1.93 EUR bis 2.95 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AHQSH112DM2F00G | Amphenol Anytek |
Description: RELAY GEN PURPOSE SPST 16A 12V Packaging: Box Mounting Type: Through Hole Coil Voltage: 12VDC Operating Temperature: -40°C ~ 105°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 30 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver Alloy Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 16 A Switching Voltage: 277VAC, 24VDC - Max Must Release Voltage: 0.6 VDC Must Operate Voltage: 9.6 VDC Operate Time: 10 ms Release Time: 5 ms Part Status: Active Coil Insulation: Class F Load - Max Switching: 4432VA, 384W |
auf Bestellung 9774 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
 |
AHQSH112DM2F00G | AMPHENOL ANYTEK |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; Ucoil: 12VDC; SPST-NO; 16A; 16A/277VAC; AHQ Coil power consumption: 360mW AC contacts rating @R: 16A / 277V AC Body dimensions: 10x18.2x15mm Operating temperature: -40...105°C Contacts configuration: SPST-NO Coil voltage: 12V DC Type of relay: electromagnetic Mounting: PCB Coil resistance: 400Ω Contact material: silver alloy Manufacturer series: AHQ Contact current max.: 16A |
auf Bestellung 461 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| AHQSH112DM2F00G |
|
Hersteller: Amphenol Anytek
Description: RELAY GEN PURPOSE SPST 16A 12V
Packaging: Box
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -40°C ~ 105°C
Termination Style: PC Pin
Relay Type: General Purpose
Coil Current: 30 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Alloy
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 16 A
Switching Voltage: 277VAC, 24VDC - Max
Must Release Voltage: 0.6 VDC
Must Operate Voltage: 9.6 VDC
Operate Time: 10 ms
Release Time: 5 ms
Part Status: Active
Coil Insulation: Class F
Load - Max Switching: 4432VA, 384W
Description: RELAY GEN PURPOSE SPST 16A 12V
Packaging: Box
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -40°C ~ 105°C
Termination Style: PC Pin
Relay Type: General Purpose
Coil Current: 30 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Alloy
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 16 A
Switching Voltage: 277VAC, 24VDC - Max
Must Release Voltage: 0.6 VDC
Must Operate Voltage: 9.6 VDC
Operate Time: 10 ms
Release Time: 5 ms
Part Status: Active
Coil Insulation: Class F
Load - Max Switching: 4432VA, 384W
auf Bestellung 9774 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 8+ | 2.95 EUR |
| 10+ | 2.64 EUR |
| 25+ | 2.52 EUR |
| 50+ | 2.44 EUR |
| 100+ | 2.36 EUR |
| 250+ | 2.25 EUR |
| 500+ | 2.17 EUR |
| 1000+ | 2.09 EUR |
| 5000+ | 1.93 EUR |
| AHQSH112DM2F00G |
|
Hersteller: AMPHENOL ANYTEK
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; Ucoil: 12VDC; SPST-NO; 16A; 16A/277VAC; AHQ
Coil power consumption: 360mW
AC contacts rating @R: 16A / 277V AC
Body dimensions: 10x18.2x15mm
Operating temperature: -40...105°C
Contacts configuration: SPST-NO
Coil voltage: 12V DC
Type of relay: electromagnetic
Mounting: PCB
Coil resistance: 400Ω
Contact material: silver alloy
Manufacturer series: AHQ
Contact current max.: 16A
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; Ucoil: 12VDC; SPST-NO; 16A; 16A/277VAC; AHQ
Coil power consumption: 360mW
AC contacts rating @R: 16A / 277V AC
Body dimensions: 10x18.2x15mm
Operating temperature: -40...105°C
Contacts configuration: SPST-NO
Coil voltage: 12V DC
Type of relay: electromagnetic
Mounting: PCB
Coil resistance: 400Ω
Contact material: silver alloy
Manufacturer series: AHQ
Contact current max.: 16A
auf Bestellung 461 Stücke:
Lieferzeit 14-21 Tag (e)
