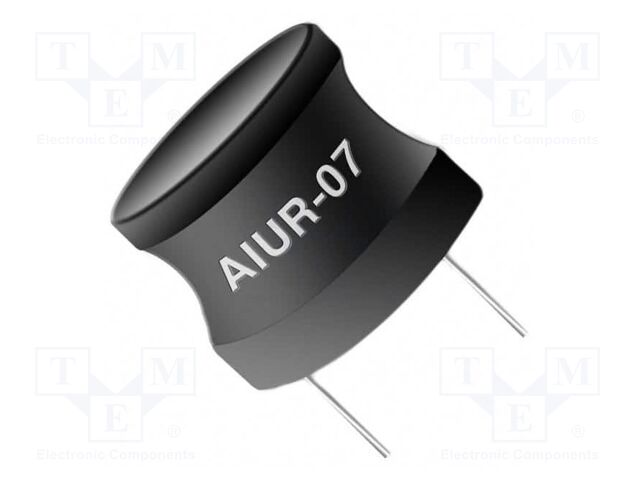

AIUR-07-221K ABRACON
Hersteller: ABRACONCategory: Inductors
Description: Inductor: wire; THT; 220uH; Ioper: 260mA; R: 1.39Ω; ±10%; 4.6x4.6mm
Type of inductor: wire
Mounting: THT
Inductance: 0.22mH
Operating current: 0.26A
Resistance: 1.39Ω
Tolerance: ±10%
Body dimensions: 4.6x4.6mm
Q factor: 47
Test frequency: 1kHz
Leads: radial
Core material: ferrite
Diameter: 6mm
Height: 4.6mm
Max resistance: 1.39Ω
Operating temperature: -55...85°C
Saturation current: 0.3A
auf Bestellung 5000 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 250+ | 0.39 EUR |
| 1000+ | 0.36 EUR |
| 5000+ | 0.35 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details AIUR-07-221K ABRACON
Description: FIXED IND 220UH 260MA 1.39OHM TH, Packaging: Bulk, Tolerance: ±10%, Package / Case: Radial, Vertical Cylinder, Size / Dimension: 0.236" Dia (6.00mm), Mounting Type: Through Hole, Shielding: Unshielded, Type: Drum Core, Wirewound, Operating Temperature: -55°C ~ 85°C, DC Resistance (DCR): 1.39Ohm Max, Q @ Freq: 47 @ 1kHz, Current - Saturation (Isat): 300mA, Material - Core: Ferrite, Height - Seated (Max): 0.201" (5.10mm), Inductance Frequency - Test: 1 kHz, Inductance: 220 µH, Current Rating (Amps): 260 mA.
Weitere Produktangebote AIUR-07-221K
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
AIUR-07-221K | Hersteller : ABRACON |
Fixed Inductors FIXED IND 220UH 260MA 1.39 OHM |
auf Bestellung 906 Stücke: Lieferzeit 10-14 Tag (e) |
|
 |
AIUR-07-221K | Hersteller : Abracon Corporation |
Inductor Power Unshielded Drum Core 220uH 10% 1KHz 47Q-Factor Ferrite 0.26A 1.39Ohm DCR RDL Box |
Produkt ist nicht verfügbar |
|
 |
AIUR-07-221K | Hersteller : Abracon LLC |
Description: FIXED IND 220UH 260MA 1.39OHM TH Packaging: Bulk Tolerance: ±10% Package / Case: Radial, Vertical Cylinder Size / Dimension: 0.236" Dia (6.00mm) Mounting Type: Through Hole Shielding: Unshielded Type: Drum Core, Wirewound Operating Temperature: -55°C ~ 85°C DC Resistance (DCR): 1.39Ohm Max Q @ Freq: 47 @ 1kHz Current - Saturation (Isat): 300mA Material - Core: Ferrite Height - Seated (Max): 0.201" (5.10mm) Inductance Frequency - Test: 1 kHz Inductance: 220 µH Current Rating (Amps): 260 mA |
Produkt ist nicht verfügbar |
