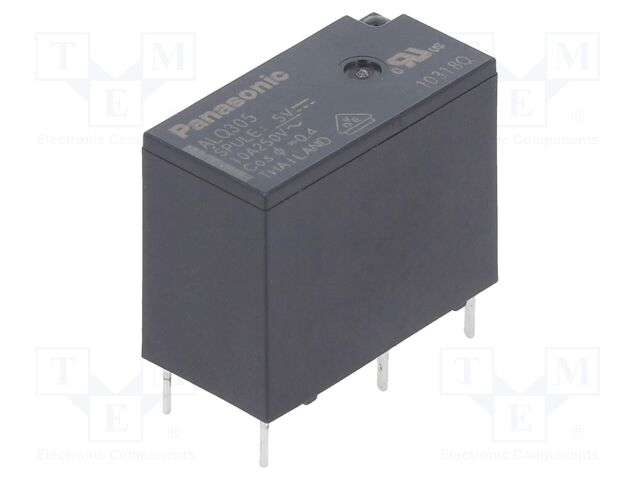

ALQ305 Panasonic Electric Works
Hersteller: Panasonic Electric WorksDescription: RELAY GEN PURPOSE SPST 10A 5V
Packaging: Box
Mounting Type: Through Hole
Coil Voltage: 5VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Relay Type: General Purpose
Coil Current: 40 mA
Coil Type: Non Latching
Contact Material: Silver Nickel (AgNi)
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 5 A
Switching Voltage: 250VAC, 30VDC - Max
Must Release Voltage: 0.25 VDC
Must Operate Voltage: 3.75 VDC
Operate Time: 20 ms
Release Time: 20 ms
Part Status: Active
Coil Insulation: Class B
Approval Agency: CQC, cURuus, VDE
Load - Max Switching: 1250VA, 150W
auf Bestellung 2187 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 10+ | 1.76 EUR |
| 12+ | 1.56 EUR |
| 25+ | 1.49 EUR |
| 50+ | 1.44 EUR |
| 100+ | 1.39 EUR |
| 300+ | 1.32 EUR |
| 500+ | 1.28 EUR |
| 1000+ | 1.24 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details ALQ305 Panasonic Electric Works
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 10A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 5V DC, Contact current max.: 10A, AC contacts rating @R: 5A / 250V AC, DC contacts rating @R: 5A / 30V DC, Manufacturer series: LQ, Relay variant: miniature, Mounting: PCB, Coil resistance: 125Ω, Body dimensions: 20x10x15.6mm, Coil power consumption: 400mW, Operating temperature: -40...70°C, Contact material: AgNi, Coil current: 40mA, Switched voltage: max. 30V DC; max. 250V AC, Coil voltage min.: 3.75V DC, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote ALQ305 nach Preis ab 1.24 EUR bis 2.45 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ALQ305 | Hersteller : PANASONIC |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 10A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 5V DC Contact current max.: 10A AC contacts rating @R: 5A / 250V AC DC contacts rating @R: 5A / 30V DC Manufacturer series: LQ Relay variant: miniature Mounting: PCB Coil resistance: 125Ω Body dimensions: 20x10x15.6mm Coil power consumption: 400mW Operating temperature: -40...70°C Contact material: AgNi Coil current: 40mA Switched voltage: max. 30V DC; max. 250V AC Coil voltage min.: 3.75V DC Anzahl je Verpackung: 1 Stücke |
auf Bestellung 141 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||||
|
|
ALQ305 | Hersteller : PANASONIC |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 10A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 5V DC Contact current max.: 10A AC contacts rating @R: 5A / 250V AC DC contacts rating @R: 5A / 30V DC Manufacturer series: LQ Relay variant: miniature Mounting: PCB Coil resistance: 125Ω Body dimensions: 20x10x15.6mm Coil power consumption: 400mW Operating temperature: -40...70°C Contact material: AgNi Coil current: 40mA Switched voltage: max. 30V DC; max. 250V AC Coil voltage min.: 3.75V DC |
auf Bestellung 141 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
ALQ305 | Hersteller : Panasonic Industrial Devices |
General Purpose Relays LQ Relay |
auf Bestellung 192 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
ALQ305 | Hersteller : Panasonic |
Power Relay 5VDC 5DC/10AAC SPST-NO(20mm 10mm 16mm) THT |
auf Bestellung 2100 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
ALQ305 | Hersteller : Panasonic |
Power Relay 5VDC 5DC/10AAC SPST-NO(20mm 10mm 16mm) THT |
auf Bestellung 1356 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
ALQ305 | Hersteller : Panasonic |
Power Relay 5VDC 5DC/10AAC SPST-NO(20mm 10mm 16mm) THT |
auf Bestellung 1361 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
ALQ305 | Hersteller : Panasonic |
Power Relay 5VDC 5DC/10AAC SPST-NO(20mm 10mm 16mm) THT |
auf Bestellung 70 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
ALQ305 | Hersteller : PANASONIC |
Description: PANASONIC - ALQ305 - Universelles Leistungsrelais, Baureihe ALQ, monostabil, SPST-NO, 5V DC, 10A tariffCode: 85364900 rohsCompliant: YES Zulassungen & Normen: UL, VDE Relaisanschlüsse: Lötanschlüsse hazardous: false rohsPhthalatesCompliant: YES Spulentyp: Monostabil Kontaktmaterial: Silber-Nickel Kontaktstrom: 10A usEccn: EAR99 Spulenwiderstand: 125ohm euEccn: NLR Kontaktspannung V DC: - Relaismontage: Durchsteckmontage Produktpalette: LQ Series productTraceability: No Spulenspannung: 5VDC Kontaktkonfiguration: SPST-NO Kontaktspannung V AC: 125VAC SVHC: No SVHC (23-Jan-2024) |
auf Bestellung 867 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
 |
ALQ305 | Hersteller : Panasonic Electric Works |
Power Relay 5VDC 5DC/10AAC SPST-NO(20x10x16)mm THT |
auf Bestellung 1361 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
|
|
ALQ305 | Hersteller : Panasonic |
Power Relay 5VDC 5DC/10AAC SPST-NO(20mm 10mm 16mm) THT |
Produkt ist nicht verfügbar |
|||||||||||||||||
|
|
ALQ305 | Hersteller : Panasonic |
Power Relay 5VDC 5DC/10AAC SPST-NO(20mm 10mm 16mm) THT |
Produkt ist nicht verfügbar |
