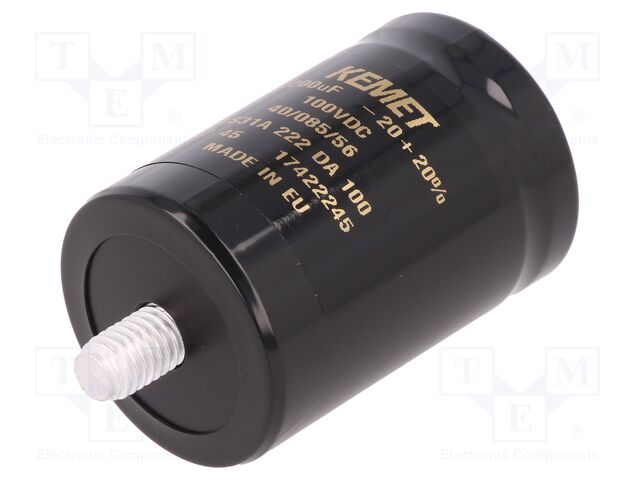

ALS31A222DA100 KEMET
Hersteller: KEMET
Description: KEMET - ALS31A222DA100 - Elektrolytkondensator, 2200 µF, 100 V, ± 20%, Schraubanschluss, 11000 Stunden bei 85°C
tariffCode: 85322200
Produkthöhe: 52mm
Polarität: Polarisiert
rohsCompliant: YES
Anschlussabstand: 12.7mm
hazardous: false
rohsPhthalatesCompliant: YES
Kapazitätstoleranz: ± 20%
Qualifikation: -
isCanonical: Y
usEccn: EAR99
Lebensdauer bei Temperatur: 11000 Stunden bei 85°C
Betriebstemperatur, min.: -40°C
Äquivalenter Serienwiderstand (ESR): 0.069ohm
euEccn: NLR
Spannung (AC): -
Kapazität: 2200µF
Spannung (DC): 100V
Rippelstrom: 5.4A
Produktpalette: ALS31 Series
productTraceability: No
Produktdurchmesser: 36mm
Kondensatoranschlüsse: Schraubanschluss
Betriebstemperatur, max.: 85°C
SVHC: No SVHC (04-Feb-2026)
Produktrezensionen
Produktbewertung abgeben
Technische Details ALS31A222DA100 KEMET
Description: KEMET - ALS31A222DA100 - Elektrolytkondensator, 2200 µF, 100 V, ± 20%, Schraubanschluss, 11000 Stunden bei 85°C, tariffCode: 85322200, Produkthöhe: 52mm, Polarität: Polarisiert, rohsCompliant: YES, Anschlussabstand: 12.7mm, hazardous: false, rohsPhthalatesCompliant: YES, Kapazitätstoleranz: ± 20%, Qualifikation: -, isCanonical: Y, usEccn: EAR99, Lebensdauer bei Temperatur: 11000 Stunden bei 85°C, Betriebstemperatur, min.: -40°C, Äquivalenter Serienwiderstand (ESR): 0.069ohm, euEccn: NLR, Spannung (AC): -, Kapazität: 2200µF, Spannung (DC): 100V, Rippelstrom: 5.4A, Produktpalette: ALS31 Series, productTraceability: No, Produktdurchmesser: 36mm, Kondensatoranschlüsse: Schraubanschluss, Betriebstemperatur, max.: 85°C, SVHC: No SVHC (04-Feb-2026).
Weitere Produktangebote ALS31A222DA100
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
|---|---|---|---|---|---|
 |
ALS31A222DA100 | KEMET |
Description: CAP ALUM 2200UF 20% 100V SCREW Packaging: Box Tolerance: ±20% Package / Case: Radial, Can - Screw Terminals Size / Dimension: 1.417" Dia (36.00mm) Polarization: Polar Mounting Type: Chassis, Stud Mount Operating Temperature: -40°C ~ 85°C Applications: General Purpose Lead Spacing: 0.504" (12.80mm) ESR (Equivalent Series Resistance): 69mOhm @ 100Hz Lifetime @ Temp.: 11000 Hrs @ 85°C Height - Seated (Max): 2.047" (52.00mm) Capacitance: 2200 µF Voltage - Rated: 100 V Impedance: 55 mOhms Ripple Current @ Low Frequency: 4.9 A @ 100 Hz Ripple Current @ High Frequency: 5.4 A @ 10 kHz |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
 |
ALS31A222DA100 | KEMET |
Aluminium Electrolytic Capacitors - Screw Terminal 2200uF 100VDC 20% |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
 |
ALS31A222DA100 | KEMET |
Category: Screw terminal and others el. capacitors Description: Capacitor: electrolytic; 2.2mF; 100VDC; Ø36x52mm; Pitch: 12.8mm Type of capacitor: electrolytic Capacitors features: high current overload capacity Leads: screw Operating temperature: -40...85°C Capacitance: 2.2mF ESR value: 69mΩ Terminal pitch: 12.8mm Body dimensions: Ø36x52mm Diameter: 36mm Height: 52mm Number of terminals: 2 Tolerance: ±20% Operating voltage: 100V DC Service life: 11000h Manufacturer series: ALS31 |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| ALS31A222DA100 |
|
Hersteller: KEMET
Description: CAP ALUM 2200UF 20% 100V SCREW
Packaging: Box
Tolerance: ±20%
Package / Case: Radial, Can - Screw Terminals
Size / Dimension: 1.417" Dia (36.00mm)
Polarization: Polar
Mounting Type: Chassis, Stud Mount
Operating Temperature: -40°C ~ 85°C
Applications: General Purpose
Lead Spacing: 0.504" (12.80mm)
ESR (Equivalent Series Resistance): 69mOhm @ 100Hz
Lifetime @ Temp.: 11000 Hrs @ 85°C
Height - Seated (Max): 2.047" (52.00mm)
Capacitance: 2200 µF
Voltage - Rated: 100 V
Impedance: 55 mOhms
Ripple Current @ Low Frequency: 4.9 A @ 100 Hz
Ripple Current @ High Frequency: 5.4 A @ 10 kHz
Description: CAP ALUM 2200UF 20% 100V SCREW
Packaging: Box
Tolerance: ±20%
Package / Case: Radial, Can - Screw Terminals
Size / Dimension: 1.417" Dia (36.00mm)
Polarization: Polar
Mounting Type: Chassis, Stud Mount
Operating Temperature: -40°C ~ 85°C
Applications: General Purpose
Lead Spacing: 0.504" (12.80mm)
ESR (Equivalent Series Resistance): 69mOhm @ 100Hz
Lifetime @ Temp.: 11000 Hrs @ 85°C
Height - Seated (Max): 2.047" (52.00mm)
Capacitance: 2200 µF
Voltage - Rated: 100 V
Impedance: 55 mOhms
Ripple Current @ Low Frequency: 4.9 A @ 100 Hz
Ripple Current @ High Frequency: 5.4 A @ 10 kHz
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| ALS31A222DA100 |
|
Hersteller: KEMET
Aluminium Electrolytic Capacitors - Screw Terminal 2200uF 100VDC 20%
Aluminium Electrolytic Capacitors - Screw Terminal 2200uF 100VDC 20%
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| ALS31A222DA100 |
|
Hersteller: KEMET
Category: Screw terminal and others el. capacitors
Description: Capacitor: electrolytic; 2.2mF; 100VDC; Ø36x52mm; Pitch: 12.8mm
Type of capacitor: electrolytic
Capacitors features: high current overload capacity
Leads: screw
Operating temperature: -40...85°C
Capacitance: 2.2mF
ESR value: 69mΩ
Terminal pitch: 12.8mm
Body dimensions: Ø36x52mm
Diameter: 36mm
Height: 52mm
Number of terminals: 2
Tolerance: ±20%
Operating voltage: 100V DC
Service life: 11000h
Manufacturer series: ALS31
Category: Screw terminal and others el. capacitors
Description: Capacitor: electrolytic; 2.2mF; 100VDC; Ø36x52mm; Pitch: 12.8mm
Type of capacitor: electrolytic
Capacitors features: high current overload capacity
Leads: screw
Operating temperature: -40...85°C
Capacitance: 2.2mF
ESR value: 69mΩ
Terminal pitch: 12.8mm
Body dimensions: Ø36x52mm
Diameter: 36mm
Height: 52mm
Number of terminals: 2
Tolerance: ±20%
Operating voltage: 100V DC
Service life: 11000h
Manufacturer series: ALS31
