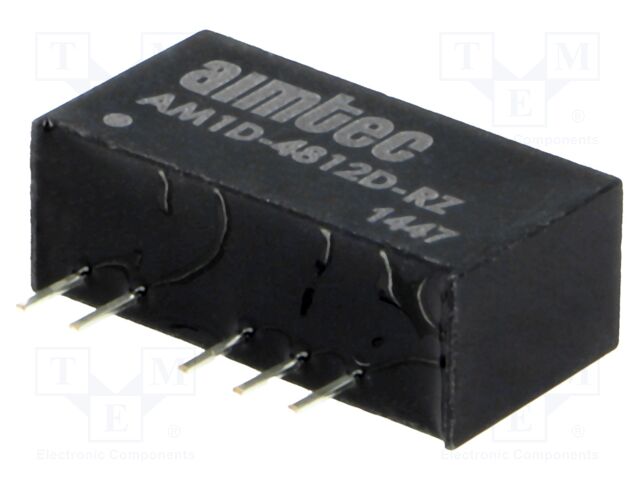

AM1D-4812D-RZ

AM1D-4812D-RZ AIMTEC


pVersion=0046&contRep=ZT&docId=005056AB281E1EDD83B1FC0F9825A0D2&compId=AM1D-RZ.pdf?ci_sign=c4401799c9acb059eb5f03cf56a4398e25abd787 Hersteller: AIMTEC
Category: DC/DC Converters
Description: Converter: DC/DC; 1W; Uin: 43.6÷52.8VDC; Uout: 12VDC; Uout2: -12VDC
Mounting: THT
Operating temperature: -40...85°C
Body dimensions: 19.5x6x9.5mm
Output voltage: 12V DC
Output current: 41mA
Insulation voltage: 1kV DC
Input voltage: 43.6...52.8V DC
Type of converter: DC/DC
Output voltage 2: -12V DC
Efficiency: 82%
Protection: short circuit protection SCP
Output current 2: 41mA
Manufacturer series: AM1D-RZ
Case: SIP7
Power: 1W
Anzahl je Verpackung: 1 Stücke
auf Bestellung 19 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
9+8.84 EUR
13+5.78 EUR
14+5.46 EUR
Mindestbestellmenge: 9
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details AM1D-4812D-RZ AIMTEC

Description: DC DC CONVERTER +/-12V 984MW, Packaging: Tube, Package / Case: 7-SIP Module, 5 Leads, Size / Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 85°C, Applications: ITE (Commercial), Voltage - Input (Max): 52.8V, Approval Agency: CE, Efficiency: 82%, Current - Output (Max): 41mA, 41mA, Voltage - Input (Min): 43.6V, Voltage - Output 1: 12V, Voltage - Output 2: -12V, Part Status: Active, Power (Watts): 984 mW, Number of Outputs: 2, Voltage - Isolation: 1 kV.

Weitere Produktangebote AM1D-4812D-RZ nach Preis ab 5.46 EUR bis 10.75 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
AM1D-4812D-RZ AM1D-4812D-RZ Hersteller : AIMTEC pVersion=0046&contRep=ZT&docId=005056AB281E1EDD83B1FC0F9825A0D2&compId=AM1D-RZ.pdf?ci_sign=c4401799c9acb059eb5f03cf56a4398e25abd787 Category: DC/DC Converters
Description: Converter: DC/DC; 1W; Uin: 43.6÷52.8VDC; Uout: 12VDC; Uout2: -12VDC
Mounting: THT
Operating temperature: -40...85°C
Body dimensions: 19.5x6x9.5mm
Output voltage: 12V DC
Output current: 41mA
Insulation voltage: 1kV DC
Input voltage: 43.6...52.8V DC
Type of converter: DC/DC
Output voltage 2: -12V DC
Efficiency: 82%
Protection: short circuit protection SCP
Output current 2: 41mA
Manufacturer series: AM1D-RZ
Case: SIP7
Power: 1W
auf Bestellung 19 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
9+8.84 EUR
13+5.78 EUR
14+5.46 EUR
Mindestbestellmenge: 9
Im Einkaufswagen  Stück im Wert von  UAH
AM1D-4812D-RZ AM1D-4812D-RZ Hersteller : aimtec AM1D-RZ.pdf?ft4=54-914 Description: DC DC CONVERTER +/-12V 984MW
Packaging: Tube
Package / Case: 7-SIP Module, 5 Leads
Size / Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C
Applications: ITE (Commercial)
Voltage - Input (Max): 52.8V
Approval Agency: CE
Efficiency: 82%
Current - Output (Max): 41mA, 41mA
Voltage - Input (Min): 43.6V
Voltage - Output 1: 12V
Voltage - Output 2: -12V
Part Status: Active
Power (Watts): 984 mW
Number of Outputs: 2
Voltage - Isolation: 1 kV
auf Bestellung 6 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+10.75 EUR
5+10.7 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
AM1D-4812D-RZ AM1D-4812D-RZ Hersteller : aimtec AM1D-RZ.pdf?ft4=54-914 Description: DC DC CONVERTER +/-12V 984MW
Packaging: Bulk
Package / Case: 7-SIP Module, 5 Leads
Size / Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C
Applications: ITE (Commercial)
Voltage - Input (Max): 52.8V
Approval Agency: CE
Efficiency: 82%
Current - Output (Max): 41mA, 41mA
Voltage - Input (Min): 43.6V
Voltage - Output 1: 12V
Voltage - Output 2: -12V
Part Status: Active
Power (Watts): 984 mW
Number of Outputs: 2
Voltage - Isolation: 1 kV
