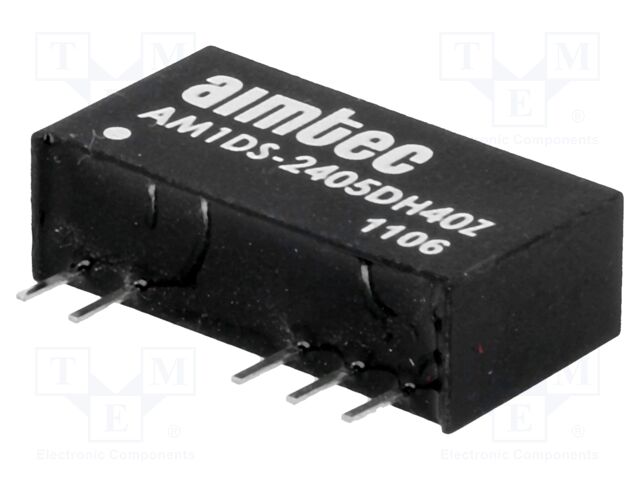

AM1DS-2405DH40Z aimtec
Hersteller: aimtec
Description: DC DC CONVERTER +/-5V 1W
Packaging: Tube
Package / Case: 7-SIP Module
Size / Dimension: 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C
Applications: ITE (Commercial)
Voltage - Input (Max): 26.4V
Efficiency: 71%
Current - Output (Max): 100mA, 100mA
Voltage - Input (Min): 21.6V
Voltage - Output 1: -5 ~ 5V
Voltage - Output 2: -5V
Power (Watts): 1 W
Number of Outputs: 2
Voltage - Isolation: 4 kV
| Anzahl | Privatkunde |
|---|---|
| 2+ | 19.65 EUR |
| 5+ | 18.97 EUR |
| 10+ | 18.65 EUR |
| 20+ | 18.31 EUR |
| 40+ | 18.02 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Mindestmenge:
2 Stücke
Produktrezensionen
Produktbewertung abgeben
Technische Details AM1DS-2405DH40Z aimtec
Description: DC DC CONVERTER +/-5V 1W, Packaging: Tube, Package / Case: 7-SIP Module, Size / Dimension: 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 85°C, Applications: ITE (Commercial), Voltage - Input (Max): 26.4V, Efficiency: 71%, Current - Output (Max): 100mA, 100mA, Voltage - Input (Min): 21.6V, Voltage - Output 1: -5 ~ 5V, Voltage - Output 2: -5V, Power (Watts): 1 W, Number of Outputs: 2, Voltage - Isolation: 4 kV.
Weitere Produktangebote AM1DS-2405DH40Z
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
AM1DS-2405DH40Z | AIMTEC |
Category: DC/DC Converters Description: Converter: DC/DC; 1W; Uin: 21.6÷26.4VDC; Uout: 5VDC; Uout2: -5VDC Case: SIP7 Mounting: THT Protection: short circuit protection SCP Operating temperature: -40...85°C Output voltage: 5V DC Output voltage 2: -5V DC Output current: 0.1A Output current 2: 0.1A Body dimensions: 19.5x6x9.5mm Number of outputs: 2 Power: 1W Input voltage: 21.6...26.4V DC Efficiency: 71% Insulation voltage: 4kV DC Manufacturer series: AM1DS-Z Type of converter: DC/DC |
auf Bestellung 8 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| AM1DS-2405DH40Z |
|
Hersteller: AIMTEC
Category: DC/DC Converters
Description: Converter: DC/DC; 1W; Uin: 21.6÷26.4VDC; Uout: 5VDC; Uout2: -5VDC
Case: SIP7
Mounting: THT
Protection: short circuit protection SCP
Operating temperature: -40...85°C
Output voltage: 5V DC
Output voltage 2: -5V DC
Output current: 0.1A
Output current 2: 0.1A
Body dimensions: 19.5x6x9.5mm
Number of outputs: 2
Power: 1W
Input voltage: 21.6...26.4V DC
Efficiency: 71%
Insulation voltage: 4kV DC
Manufacturer series: AM1DS-Z
Type of converter: DC/DC
Category: DC/DC Converters
Description: Converter: DC/DC; 1W; Uin: 21.6÷26.4VDC; Uout: 5VDC; Uout2: -5VDC
Case: SIP7
Mounting: THT
Protection: short circuit protection SCP
Operating temperature: -40...85°C
Output voltage: 5V DC
Output voltage 2: -5V DC
Output current: 0.1A
Output current 2: 0.1A
Body dimensions: 19.5x6x9.5mm
Number of outputs: 2
Power: 1W
Input voltage: 21.6...26.4V DC
Efficiency: 71%
Insulation voltage: 4kV DC
Manufacturer series: AM1DS-Z
Type of converter: DC/DC
auf Bestellung 8 Stücke:
Lieferzeit 14-21 Tag (e)
