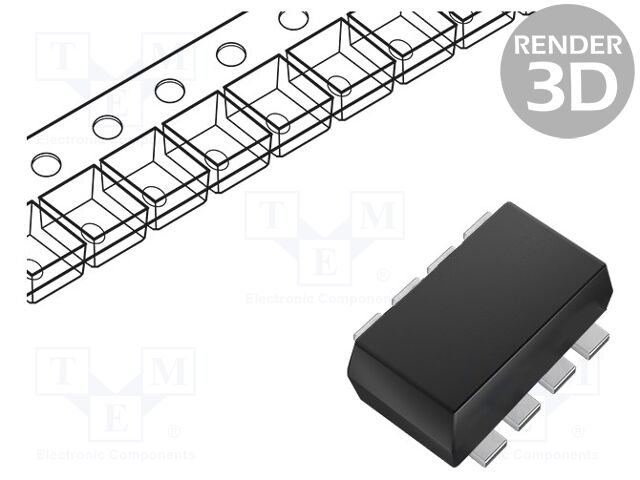

AON3414 Alpha & Omega Semiconductor Inc.
Hersteller: Alpha & Omega Semiconductor Inc.Description: MOSFET N-CH 30V 10.5A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-SMD, Flat Leads
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 10.5A (Ta)
Rds On (Max) @ Id, Vgs: 17mOhm @ 9A, 10V
Power Dissipation (Max): 3.1W (Ta)
Vgs(th) (Max) @ Id: 2.4V @ 250µA
Supplier Device Package: 8-DFN (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 690 pF @ 15 V
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 3000+ | 0.20 EUR |
| 6000+ | 0.18 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details AON3414 Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 30V 10.5A 8DFN, Packaging: Tape & Reel (TR), Package / Case: 8-SMD, Flat Leads, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 10.5A (Ta), Rds On (Max) @ Id, Vgs: 17mOhm @ 9A, 10V, Power Dissipation (Max): 3.1W (Ta), Vgs(th) (Max) @ Id: 2.4V @ 250µA, Supplier Device Package: 8-DFN (3x3), Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 30 V, Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 690 pF @ 15 V.
Weitere Produktangebote AON3414 nach Preis ab 0.23 EUR bis 0.88 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
AON3414 | Hersteller : Alpha & Omega Semiconductor Inc. |
Description: MOSFET N-CH 30V 10.5A 8DFN Packaging: Cut Tape (CT) Package / Case: 8-SMD, Flat Leads Mounting Type: Surface Mount Operating Temperature: -55°C ~ 150°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: N-Channel Current - Continuous Drain (Id) @ 25°C: 10.5A (Ta) Rds On (Max) @ Id, Vgs: 17mOhm @ 9A, 10V Power Dissipation (Max): 3.1W (Ta) Vgs(th) (Max) @ Id: 2.4V @ 250µA Supplier Device Package: 8-DFN (3x3) Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V Vgs (Max): ±20V Drain to Source Voltage (Vdss): 30 V Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 690 pF @ 15 V |
auf Bestellung 8699 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
AON3414 | Hersteller : Alpha & Omega Semiconductor |
Trans MOSFET N-CH 30V 10.5A 8-Pin DFN T/R |
Produkt ist nicht verfügbar |
|||||||||||||
| AON3414 | Hersteller : ALPHA & OMEGA SEMICONDUCTOR |
Category: SMD N channel transistors Description: Transistor: N-MOSFET; unipolar; 30V; 8A; 2W; DFN3x3; ESD Mounting: SMD Case: DFN3x3 Power dissipation: 2W Polarisation: unipolar Type of transistor: N-MOSFET Gate charge: 15nC Kind of channel: enhancement Gate-source voltage: ±20V Version: ESD On-state resistance: 17mΩ Drain current: 8A Drain-source voltage: 30V Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
||||||||||||||
| AON3414 | Hersteller : ALPHA & OMEGA SEMICONDUCTOR |
Category: SMD N channel transistors Description: Transistor: N-MOSFET; unipolar; 30V; 8A; 2W; DFN3x3; ESD Mounting: SMD Case: DFN3x3 Power dissipation: 2W Polarisation: unipolar Type of transistor: N-MOSFET Gate charge: 15nC Kind of channel: enhancement Gate-source voltage: ±20V Version: ESD On-state resistance: 17mΩ Drain current: 8A Drain-source voltage: 30V |
Produkt ist nicht verfügbar |
