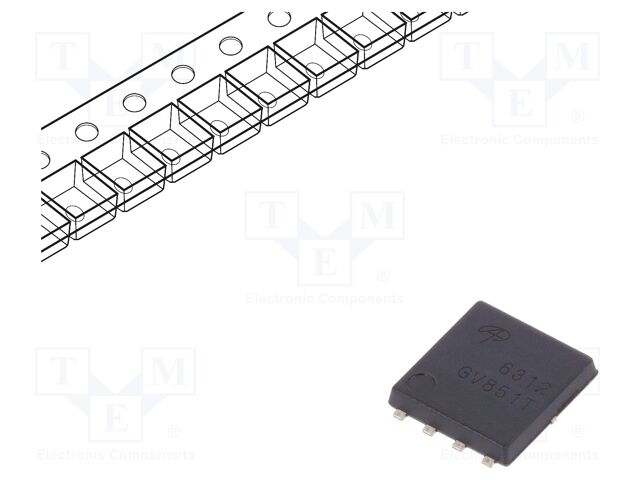

AON6312

Hersteller: ALPHA & OMEGA SEMICONDUCTOR
Category: SMD N channel transistors
Description: Transistor: N-MOSFET; unipolar; 30V; 83A; 20W; DFN5x6
Case: DFN5x6
Kind of channel: enhancement
Type of transistor: N-MOSFET
Mounting: SMD
Drain-source voltage: 30V
Drain current: 83A
Gate charge: 43nC
On-state resistance: 1.85mΩ
Power dissipation: 20W
Gate-source voltage: ±20V
Polarisation: unipolar

Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CHANNEL 30V 85A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerSMD, Flat Leads
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 85A (Tc)
Rds On (Max) @ Id, Vgs: 1.85mOhm @ 20A, 10V
Power Dissipation (Max): 50W (Tc)
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 65 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 3100 pF @ 15 V
