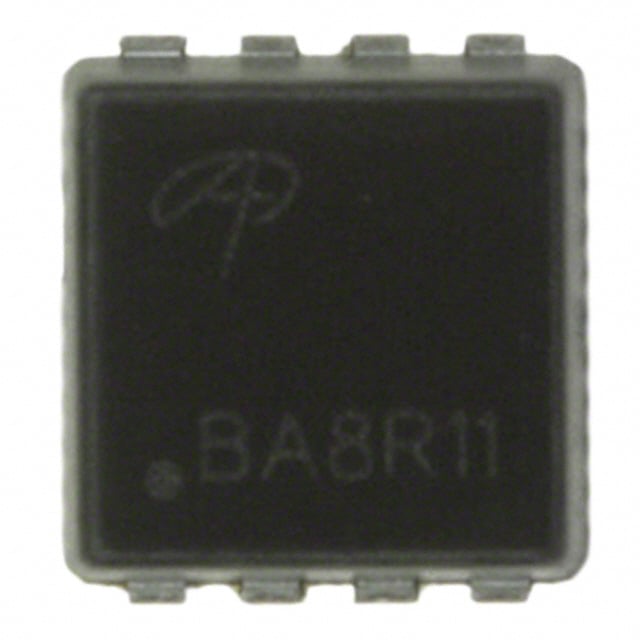

AON6414A

Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 30V 13A/30A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerSMD, Flat Leads
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 13A (Ta), 30A (Tc)
Rds On (Max) @ Id, Vgs: 8mOhm @ 20A, 10V
Power Dissipation (Max): 2.3W (Ta), 31W (Tc)
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 24 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1380 pF @ 15 V

Hersteller: ALPHA&OMEGA
Transistor N-Channel MOSFET; 30V; 20V; 11,4mOhm; 30A; 31W; -55°C ~ 150°C; AON6414A TAON6414a
Anzahl je Verpackung: 50 Stücke

Hersteller: ALPHA & OMEGA SEMICONDUCTOR
Category: SMD N channel transistors
Description: Transistor: N-MOSFET; unipolar; 30V; 30A; 12.5W; DFN5x6
Type of transistor: N-MOSFET
Polarisation: unipolar
Drain-source voltage: 30V
Drain current: 30A
Power dissipation: 12.5W
Case: DFN5x6
Gate-source voltage: ±20V
On-state resistance: 11.4mΩ
Mounting: SMD
Gate charge: 24nC
Kind of channel: enhancement

Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 30V 13A/30A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerSMD, Flat Leads
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 13A (Ta), 30A (Tc)
Rds On (Max) @ Id, Vgs: 8mOhm @ 20A, 10V
Power Dissipation (Max): 2.3W (Ta), 31W (Tc)
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 24 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1380 pF @ 15 V
