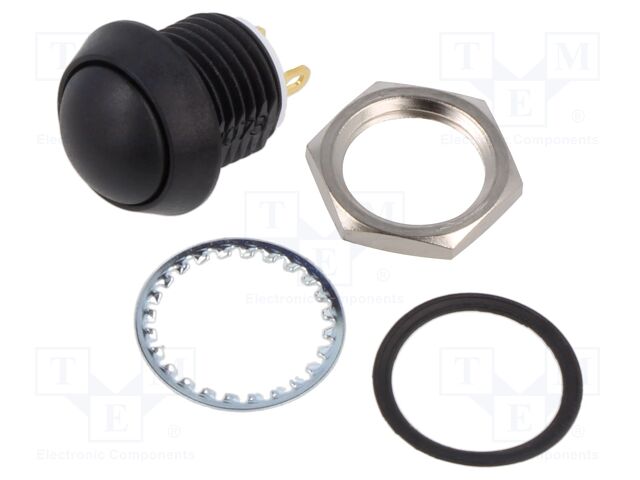

AP4D200TZBE

AP4D200TZBE C&K


pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA081066E4C73C0C7&compId=AP2C200TWBE.PDF?ci_sign=a64218d5f668e737eb34774975c230767118c55f Hersteller: C&K
Category: Standard Switches
Description: Switch: push-button; Pos: 2; SPST-NO; 0.4A/32VAC; 0.2A/24VDC; IP67
Mounting: screw-in
Leads: for soldering
Actuator colour: black
Button shape: convex; prominent; round
Contact material: copper
Contacts configuration: SPST-NO
Contact plating: gold-plated; silver plated
IP rating: IP67
Fastening thread: M13x1,25
Illumination: none
Switching method: OFF-(ON)
Type of switch: push-button
Operating temperature: -40...105°C
Terminal pitch: 5.65mm
Mounting hole diameter: Ø13.7mm
Button height: 7.74mm
Max. contact resistance:: 50mΩ
AC contacts rating @R: 0.4A / 32V AC
DC contacts rating @R: 0.2A / 24V DC
Stable positions number: 1
Number of positions: 2
Number of terminals: 4
Operating Force: 4N
Electrical life: 500000 cycles
Mechanical durability: 1000000 cycles
Min. insulation resistance: 1GΩ
Manufacturer series: AP
Anzahl je Verpackung: 1 Stücke
auf Bestellung 26 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
5+16.53 EUR
6+13.31 EUR
80+12.8 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details AP4D200TZBE C&K

Category: Standard Switches, Description: Switch: push-button; Pos: 2; SPST-NO; 0.4A/32VAC; 0.2A/24VDC; IP67, Mounting: screw-in, Leads: for soldering, Actuator colour: black, Button shape: convex; prominent; round, Contact material: copper, Contacts configuration: SPST-NO, Contact plating: gold-plated; silver plated, IP rating: IP67, Fastening thread: M13x1,25, Illumination: none, Switching method: OFF-(ON), Type of switch: push-button, Operating temperature: -40...105°C, Terminal pitch: 5.65mm, Mounting hole diameter: Ø13.7mm, Button height: 7.74mm, Max. contact resistance:: 50mΩ, AC contacts rating @R: 0.4A / 32V AC, DC contacts rating @R: 0.2A / 24V DC, Stable positions number: 1, Number of positions: 2, Number of terminals: 4, Operating Force: 4N, Electrical life: 500000 cycles, Mechanical durability: 1000000 cycles, Min. insulation resistance: 1GΩ, Manufacturer series: AP, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote AP4D200TZBE nach Preis ab 13.31 EUR bis 25.06 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
AP4D200TZBE AP4D200TZBE Hersteller : C&K pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA081066E4C73C0C7&compId=AP2C200TWBE.PDF?ci_sign=a64218d5f668e737eb34774975c230767118c55f Category: Standard Switches
Description: Switch: push-button; Pos: 2; SPST-NO; 0.4A/32VAC; 0.2A/24VDC; IP67
Mounting: screw-in
Leads: for soldering
Actuator colour: black
Button shape: convex; prominent; round
Contact material: copper
Contacts configuration: SPST-NO
Contact plating: gold-plated; silver plated
IP rating: IP67
Fastening thread: M13x1,25
Illumination: none
Switching method: OFF-(ON)
Type of switch: push-button
Operating temperature: -40...105°C
Terminal pitch: 5.65mm
Mounting hole diameter: Ø13.7mm
Button height: 7.74mm
Max. contact resistance:: 50mΩ
AC contacts rating @R: 0.4A / 32V AC
DC contacts rating @R: 0.2A / 24V DC
Stable positions number: 1
Number of positions: 2
Number of terminals: 4
Operating Force: 4N
Electrical life: 500000 cycles
Mechanical durability: 1000000 cycles
Min. insulation resistance: 1GΩ
Manufacturer series: AP
auf Bestellung 26 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
5+16.53 EUR
6+13.31 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
AP4D200TZBE AP4D200TZBE Hersteller : C&K ap.pdf Description: SWITCH PUSH SPST-NO 0.125A 125V
Packaging: Tray
Current Rating (Amps): 125mA (AC), 200mA (DC)
Mounting Type: Panel Mount, Front
Circuit: SPST-NO
Type: Standard
Switch Function: Off-Mom
Operating Temperature: -40°C ~ 105°C
Termination Style: Solder Lug
Actuator Type: Round, Button, Domed
Ingress Protection: IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions: Circular - 13.80mm Dia
Color - Actuator/Cap: Black
Actuator Marking: No Marking
Part Status: Active
Voltage Rating - AC: 125 V
Voltage Rating - DC: 24 V
auf Bestellung 1123 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+22.39 EUR
10+19.32 EUR
25+18.21 EUR
80+16.9 EUR
160+16.54 EUR
Im Einkaufswagen  Stück im Wert von  UAH
AP4D200TZBE AP4D200TZBE Hersteller : C&K ap-3050808.pdf Pushbutton Switches 4 NT Dome Blk Cap No ILLUM,Solder Lug
auf Bestellung 143 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+25.06 EUR
10+22.81 EUR
25+20.89 EUR
50+20.54 EUR
80+19.03 EUR
240+17.48 EUR
560+16.79 EUR
Im Einkaufswagen  Stück im Wert von  UAH
AP4D200TZBE AP4D200TZBE Hersteller : C&K 398757953242917ap.pdf Switch Push Button N.O. SPST Convex Dome 0.4A 125VAC 50VDC Momentary Contact Solder Lug Panel Mount Bulk
