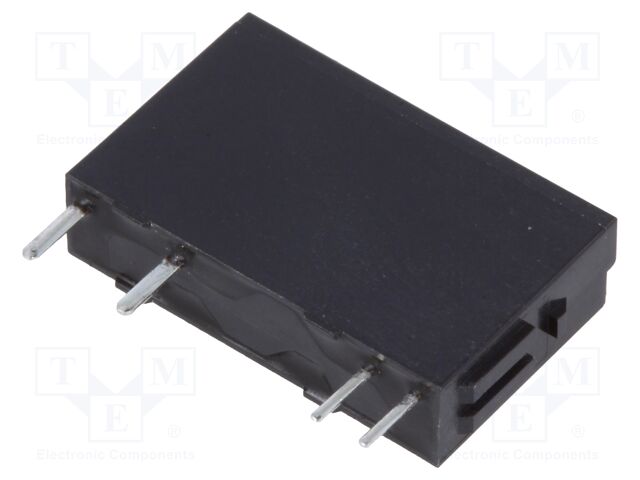

APAN3112 PANASONIC
Hersteller: PANASONICCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A
Contact material: AgNi + Au
Operating temperature: -40...90°C
Switched voltage: max. 110V DC; max. 250V AC
Coil resistance: 1309Ω
Mechanical durability: 20000000 cycles
Type of relay: electromagnetic
Relay variant: miniature
Manufacturer series: PA-N
Mounting: PCB
Contacts configuration: SPST-NO
Release time: 5ms
Terminal pitch: 5.08mm
Coil current: 9.2mA
Operate time: 10ms
Body dimensions: 20x5x12.8mm
Contact resistance: 30mΩ
Coil power consumption: 110mW
Contact current max.: 5A
DC contacts rating @R: 5A / 30V DC
AC contacts rating @R: 5A / 250V AC
Coil voltage min.: 8.4V DC
Rated coil voltage: 12V DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 294 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 24+ | 3.06 EUR |
| 38+ | 1.89 EUR |
| 40+ | 1.79 EUR |
| 1000+ | 1.77 EUR |
| 1875+ | 1.72 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details APAN3112 PANASONIC
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A, Contact material: AgNi + Au, Operating temperature: -40...90°C, Switched voltage: max. 110V DC; max. 250V AC, Coil resistance: 1309Ω, Mechanical durability: 20000000 cycles, Type of relay: electromagnetic, Relay variant: miniature, Manufacturer series: PA-N, Mounting: PCB, Contacts configuration: SPST-NO, Release time: 5ms, Terminal pitch: 5.08mm, Coil current: 9.2mA, Operate time: 10ms, Body dimensions: 20x5x12.8mm, Contact resistance: 30mΩ, Coil power consumption: 110mW, Contact current max.: 5A, DC contacts rating @R: 5A / 30V DC, AC contacts rating @R: 5A / 250V AC, Coil voltage min.: 8.4V DC, Rated coil voltage: 12V DC, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote APAN3112 nach Preis ab 1.79 EUR bis 8.5 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
APAN3112 | Hersteller : PANASONIC |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 5A Contact material: AgNi + Au Operating temperature: -40...90°C Switched voltage: max. 110V DC; max. 250V AC Coil resistance: 1309Ω Mechanical durability: 20000000 cycles Type of relay: electromagnetic Relay variant: miniature Manufacturer series: PA-N Mounting: PCB Contacts configuration: SPST-NO Release time: 5ms Terminal pitch: 5.08mm Coil current: 9.2mA Operate time: 10ms Body dimensions: 20x5x12.8mm Contact resistance: 30mΩ Coil power consumption: 110mW Contact current max.: 5A DC contacts rating @R: 5A / 30V DC AC contacts rating @R: 5A / 250V AC Coil voltage min.: 8.4V DC Rated coil voltage: 12V DC |
auf Bestellung 294 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
APAN3112 | Hersteller : Panasonic |
Power Relay 12VDC 5A SPST-NO(21x5x12.8)mm THT |
auf Bestellung 325 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
APAN3112 | Hersteller : Panasonic |
Power Relay 12VDC 5A SPST-NO(21x5x12.8)mm THT |
auf Bestellung 1064 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
APAN3112 | Hersteller : Panasonic |
Power Relay 12VDC 5A SPST-NO(21x5x12.8)mm THT |
auf Bestellung 1070 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
APAN3112 | Hersteller : Panasonic |
Power Relay 12VDC 5A SPST-NO(21x5x12.8)mm THT |
auf Bestellung 123 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
APAN3112 | Hersteller : Panasonic |
Power Relay 12VDC 5A SPST-NO(21x5x12.8)mm THT |
auf Bestellung 123 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
APAN3112 | Hersteller : Panasonic Electric Works |
Description: RELAY GEN PURPOSE SPST 5A 12V Packaging: Tube Mounting Type: Through Hole Coil Voltage: 12VDC Operating Temperature: -40°C ~ 90°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 9.2 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver Nickel (AgNi), Gold (Au) Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 5 A Switching Voltage: 250VAC, 110VDC - Max Must Release Voltage: 0.6 VDC Must Operate Voltage: 8.4 VDC Operate Time: 10 ms Release Time: 5 ms Part Status: Active Approval Agency: cURus, VDE Load - Max Switching: 1250VA, 550W |
auf Bestellung 884 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
|
|
APAN3112 | Hersteller : Panasonic |
Power Relay 12VDC 5A SPST-NO(21x5x12.8)mm THT |
auf Bestellung 175 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
APAN3112 | Hersteller : Panasonic Industrial Devices |
General Purpose Relays 12volts 1 Form A PLC Relay |
auf Bestellung 389 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
APAN3112 | Hersteller : PANASONIC |
Description: PANASONIC - APAN3112 - Leistungsrelais, SPST-NO, 12 VDC, 5 A, PA-N, Durchsteckmontage tariffCode: 85364190 rohsCompliant: YES Zulassungen & Normen: UL Relaisanschlüsse: Lötanschlüsse hazardous: false rohsPhthalatesCompliant: YES Spulentyp: - Kontaktmaterial: Silber-Nickel-Gold Kontaktstrom: 5A usEccn: EAR99 Spulenwiderstand: 1.309kohm euEccn: NLR Kontaktspannung V DC: 110V Relaismontage: Durchsteckmontage Produktpalette: PA-N productTraceability: No Spulenspannung: 12VDC Kontaktkonfiguration: SPST-NO Kontaktspannung V AC: 250V SVHC: No SVHC (14-Jun-2023) |
auf Bestellung 79 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
 |
APAN3112 | Hersteller : Panasonic Electric Works |
Power Relay 12VDC 5A SPST-NO(21x5x12.8)mm THT |
auf Bestellung 999 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
|
