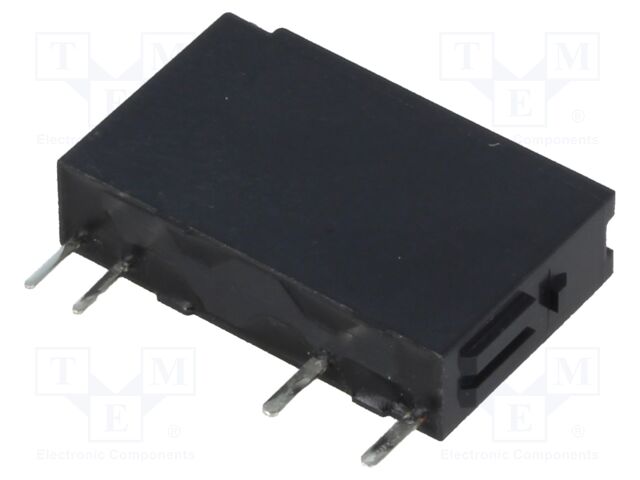

APAN3118 PANASONIC
Hersteller: PANASONIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 18VDC; Icontacts max: 5A
Operating temperature: -40...90°C
Mounting: PCB
Contact material: AgNi + Au
Coil resistance: 2945Ω
Contacts configuration: SPST-NO
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Type of relay: electromagnetic
Relay variant: miniature
Relay series: PA-N
Rated coil voltage: 18V DC
Coil voltage min.: 12.6V DC
Coil power consumption: 110mW
Operate time: 10ms
Release time: 5ms
Switched voltage: max. 110V DC; max. 250V AC
Contact current max.: 5A
Contact resistance: 30mΩ
Coil current: 6.1mA
Mechanical durability: 20000000 cycles
Terminal pitch: 5.08mm
Body dimensions: 20x5x12.8mm
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 18VDC; Icontacts max: 5A
Operating temperature: -40...90°C
Mounting: PCB
Contact material: AgNi + Au
Coil resistance: 2945Ω
Contacts configuration: SPST-NO
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Type of relay: electromagnetic
Relay variant: miniature
Relay series: PA-N
Rated coil voltage: 18V DC
Coil voltage min.: 12.6V DC
Coil power consumption: 110mW
Operate time: 10ms
Release time: 5ms
Switched voltage: max. 110V DC; max. 250V AC
Contact current max.: 5A
Contact resistance: 30mΩ
Coil current: 6.1mA
Mechanical durability: 20000000 cycles
Terminal pitch: 5.08mm
Body dimensions: 20x5x12.8mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 420 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
10+ | 7.89 EUR |
14+ | 5.19 EUR |
15+ | 4.9 EUR |
100+ | 4.76 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details APAN3118 PANASONIC
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 18VDC; Icontacts max: 5A, Operating temperature: -40...90°C, Mounting: PCB, Contact material: AgNi + Au, Coil resistance: 2945Ω, Contacts configuration: SPST-NO, AC contacts rating @R: 5A / 250V AC, DC contacts rating @R: 5A / 30V DC, Type of relay: electromagnetic, Relay variant: miniature, Relay series: PA-N, Rated coil voltage: 18V DC, Coil voltage min.: 12.6V DC, Coil power consumption: 110mW, Operate time: 10ms, Release time: 5ms, Switched voltage: max. 110V DC; max. 250V AC, Contact current max.: 5A, Contact resistance: 30mΩ, Coil current: 6.1mA, Mechanical durability: 20000000 cycles, Terminal pitch: 5.08mm, Body dimensions: 20x5x12.8mm, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote APAN3118 nach Preis ab 4.76 EUR bis 14.14 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APAN3118 | Hersteller : PANASONIC |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 18VDC; Icontacts max: 5A Operating temperature: -40...90°C Mounting: PCB Contact material: AgNi + Au Coil resistance: 2945Ω Contacts configuration: SPST-NO AC contacts rating @R: 5A / 250V AC DC contacts rating @R: 5A / 30V DC Type of relay: electromagnetic Relay variant: miniature Relay series: PA-N Rated coil voltage: 18V DC Coil voltage min.: 12.6V DC Coil power consumption: 110mW Operate time: 10ms Release time: 5ms Switched voltage: max. 110V DC; max. 250V AC Contact current max.: 5A Contact resistance: 30mΩ Coil current: 6.1mA Mechanical durability: 20000000 cycles Terminal pitch: 5.08mm Body dimensions: 20x5x12.8mm |
auf Bestellung 420 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
APAN3118 | Hersteller : Panasonic Electric Works |
Description: RELAY GEN PURPOSE SPST 5A 18V Packaging: Tube Mounting Type: Through Hole Coil Voltage: 18VDC Operating Temperature: -40°C ~ 90°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 6.1 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver Nickel (AgNi), Gold (Au) Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 5 A Switching Voltage: 250VAC, 110VDC - Max Must Release Voltage: 0.9 VDC Must Operate Voltage: 12.6 VDC Operate Time: 10 ms Release Time: 5 ms Part Status: Active Approval Agency: cURus, TUV Load - Max Switching: 1250VA, 550W |
auf Bestellung 175 Stücke: Lieferzeit 21-28 Tag (e) |
|
|||||||||||||
APAN3118 | Hersteller : Panasonic Industrial Devices | General Purpose Relays 18volts 1 Form A PLC Relay |
auf Bestellung 175 Stücke: Lieferzeit 14-28 Tag (e) |
|
|||||||||||||
APAN3118 | Hersteller : Panasonic Electric Works | Power Relay 18VDC 5A SPST-NO(21x5x12.8)mm THT |
Produkt ist nicht verfügbar |
