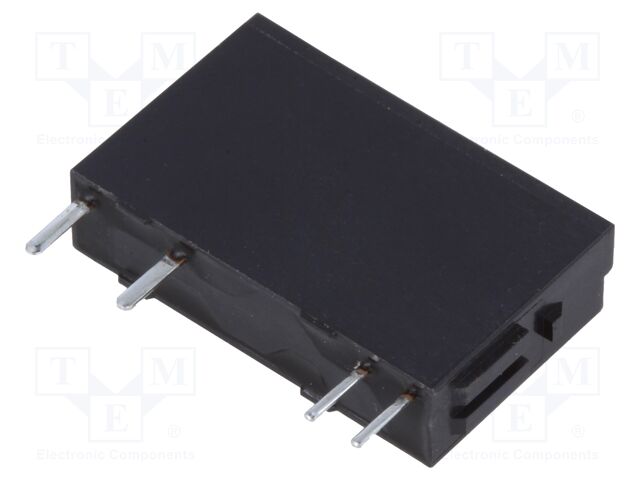

APAN3124 PANASONIC

Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 5A
Body dimensions: 20x5x12.8mm
Contact material: AgNi + Au
Coil resistance: 5236Ω
Contacts configuration: SPST-NO
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 30V DC
Type of relay: electromagnetic
Relay variant: miniature
Rated coil voltage: 24V DC
Coil voltage min.: 16.8V DC
Coil power consumption: 110mW
Operate time: 10ms
Release time: 5ms
Switched voltage: max. 110V DC; max. 250V AC
Contact current max.: 5A
Contact resistance: 30mΩ
Coil current: 4.6mA
Manufacturer series: PA-N
Mounting: PCB
Mechanical durability: 20000000 cycles
Terminal pitch: 5.08mm
Operating temperature: -40...90°C
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2002 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis |
---|---|
33+ | 2.22 EUR |
35+ | 2.10 EUR |
38+ | 1.92 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details APAN3124 PANASONIC
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 5A, Body dimensions: 20x5x12.8mm, Contact material: AgNi + Au, Coil resistance: 5236Ω, Contacts configuration: SPST-NO, AC contacts rating @R: 5A / 250V AC, DC contacts rating @R: 5A / 30V DC, Type of relay: electromagnetic, Relay variant: miniature, Rated coil voltage: 24V DC, Coil voltage min.: 16.8V DC, Coil power consumption: 110mW, Operate time: 10ms, Release time: 5ms, Switched voltage: max. 110V DC; max. 250V AC, Contact current max.: 5A, Contact resistance: 30mΩ, Coil current: 4.6mA, Manufacturer series: PA-N, Mounting: PCB, Mechanical durability: 20000000 cycles, Terminal pitch: 5.08mm, Operating temperature: -40...90°C, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote APAN3124 nach Preis ab 1.92 EUR bis 8.73 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
APAN3124 | Hersteller : PANASONIC |
![]() Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 5A Body dimensions: 20x5x12.8mm Contact material: AgNi + Au Coil resistance: 5236Ω Contacts configuration: SPST-NO AC contacts rating @R: 5A / 250V AC DC contacts rating @R: 5A / 30V DC Type of relay: electromagnetic Relay variant: miniature Rated coil voltage: 24V DC Coil voltage min.: 16.8V DC Coil power consumption: 110mW Operate time: 10ms Release time: 5ms Switched voltage: max. 110V DC; max. 250V AC Contact current max.: 5A Contact resistance: 30mΩ Coil current: 4.6mA Manufacturer series: PA-N Mounting: PCB Mechanical durability: 20000000 cycles Terminal pitch: 5.08mm Operating temperature: -40...90°C |
auf Bestellung 2002 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
![]() |
APAN3124 | Hersteller : Panasonic |
![]() |
auf Bestellung 1114 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
![]() |
APAN3124 | Hersteller : Panasonic |
![]() |
auf Bestellung 375 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
![]() |
APAN3124 | Hersteller : Panasonic |
![]() |
auf Bestellung 7101 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
![]() |
APAN3124 | Hersteller : Panasonic |
![]() |
auf Bestellung 7119 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
![]() |
APAN3124 | Hersteller : Panasonic |
![]() |
auf Bestellung 600 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
![]() |
APAN3124 | Hersteller : Panasonic |
![]() |
auf Bestellung 210 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
![]() |
APAN3124 | Hersteller : Panasonic |
![]() |
auf Bestellung 210 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
|
APAN3124 | Hersteller : Panasonic Electric Works |
![]() Packaging: Tube Mounting Type: Through Hole Coil Voltage: 24VDC Operating Temperature: -40°C ~ 90°C Termination Style: PC Pin Relay Type: General Purpose Coil Current: 4.6 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver Nickel (AgNi), Gold (Au) Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 5 A Switching Voltage: 250VAC, 110VDC - Max Must Release Voltage: 1.2 VDC Must Operate Voltage: 16.8 VDC Operate Time: 10 ms Release Time: 5 ms Part Status: Active Approval Agency: cURus, VDE Load - Max Switching: 1250VA, 550W |
auf Bestellung 7372 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
|
APAN3124 | Hersteller : Panasonic Industrial Devices |
![]() |
auf Bestellung 8735 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
![]() |
APAN3124 | Hersteller : PANASONIC |
![]() tariffCode: 85364190 rohsCompliant: YES Zulassungen & Normen: UL Relaisanschlüsse: Lötanschlüsse hazardous: false rohsPhthalatesCompliant: YES Spulentyp: - Kontaktmaterial: Silber-Nickel-Gold Kontaktstrom: 5A usEccn: EAR99 Spulenwiderstand: 5.236kohm euEccn: NLR Kontaktspannung V DC: 110V Relaismontage: Durchsteckmontage Produktpalette: PA-N productTraceability: No Spulenspannung: 24VDC Kontaktkonfiguration: SPST-NO Kontaktspannung V AC: 250V SVHC: To Be Advised |
auf Bestellung 354 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||||
![]() |
APAN3124 | Hersteller : Panasonic Electric Works |
![]() |
auf Bestellung 10451 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||||
![]() |
APAN3124 | Hersteller : Panasonic |
![]() |
auf Bestellung 6 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||||
![]() |
APAN3124 | Hersteller : Panasonic |
![]() |
auf Bestellung 6 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||||
APAN3124 | Hersteller : Panasonic |
![]() Anzahl je Verpackung: 25 Stücke |
auf Bestellung 23 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||||||
APAN3124 | Hersteller : Panasonic |
![]() Anzahl je Verpackung: 25 Stücke |
auf Bestellung 200 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||||||
APAN3124 | Hersteller : Panasonic |
![]() Anzahl je Verpackung: 25 Stücke |
auf Bestellung 25 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||||||
