Produkte > PANASONIC > APF10224

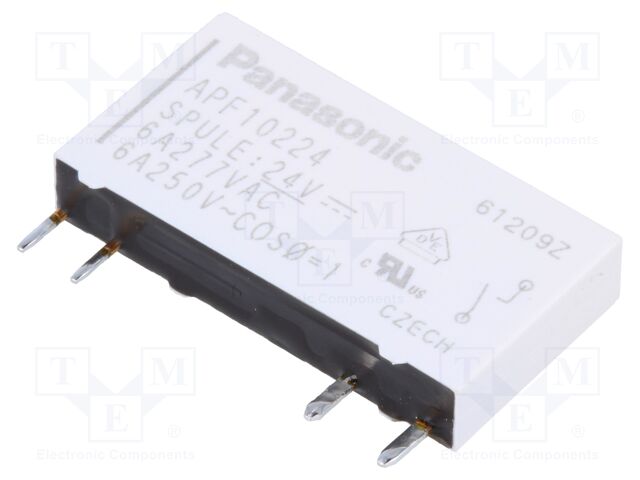

APF10224

APF10224 PANASONIC


pVersion=0046&contRep=ZT&docId=005056AB752F1ED6B1BE133E3453BE27&compId=mech_eng_pf.pdf?ci_sign=3d411f363b0ec1b2078777dad1a67a5552a7494e Hersteller: PANASONIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 6A
Manufacturer series: APF
Operating temperature: -40...85°C
Body dimensions: 28x5x15mm
Contact material: AgNi
Coil resistance: 3388Ω
Contacts configuration: SPST-NO
AC contacts rating @R: 6A / 250V AC
Type of relay: electromagnetic
Relay variant: miniature
Rated coil voltage: 24V DC
Coil voltage min.: 16.8V DC
Coil power consumption: 170mW
Switched voltage: max. 250V AC
Contact current max.: 6A
Coil current: 7.1mA
Mounting: PCB
Mechanical durability: 5000000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 561 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
18+4.06 EUR
20+3.69 EUR
27+2.67 EUR
29+2.53 EUR
Mindestbestellmenge: 18
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details APF10224 PANASONIC

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 6A, Manufacturer series: APF, Operating temperature: -40...85°C, Body dimensions: 28x5x15mm, Contact material: AgNi, Coil resistance: 3388Ω, Contacts configuration: SPST-NO, AC contacts rating @R: 6A / 250V AC, Type of relay: electromagnetic, Relay variant: miniature, Rated coil voltage: 24V DC, Coil voltage min.: 16.8V DC, Coil power consumption: 170mW, Switched voltage: max. 250V AC, Contact current max.: 6A, Coil current: 7.1mA, Mounting: PCB, Mechanical durability: 5000000 cycles, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote APF10224 nach Preis ab 2.53 EUR bis 18.69 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
APF10224 APF10224 Hersteller : PANASONIC pVersion=0046&contRep=ZT&docId=005056AB752F1ED6B1BE133E3453BE27&compId=mech_eng_pf.pdf?ci_sign=3d411f363b0ec1b2078777dad1a67a5552a7494e Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 6A
Manufacturer series: APF
Operating temperature: -40...85°C
Body dimensions: 28x5x15mm
Contact material: AgNi
Coil resistance: 3388Ω
Contacts configuration: SPST-NO
AC contacts rating @R: 6A / 250V AC
Type of relay: electromagnetic
Relay variant: miniature
Rated coil voltage: 24V DC
Coil voltage min.: 16.8V DC
Coil power consumption: 170mW
Switched voltage: max. 250V AC
Contact current max.: 6A
Coil current: 7.1mA
Mounting: PCB
Mechanical durability: 5000000 cycles
auf Bestellung 561 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
18+4.06 EUR
20+3.69 EUR
27+2.67 EUR
29+2.53 EUR
Mindestbestellmenge: 18
Im Einkaufswagen  Stück im Wert von  UAH
APF10224 APF10224 Hersteller : Panasonic Electric Works mech_eng_pf.pdf Description: RELAY GEN PURPOSE SPST 6A 24V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 24VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Relay Type: General Purpose
Coil Current: 7.1 mA
Coil Type: Non Latching
Contact Material: Silver Nickel (AgNi)
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 6 A
Switching Voltage: 250VAC - Max
Must Release Voltage: 1.2 VDC
Must Operate Voltage: 16.8 VDC
Operate Time: 8 ms
Release Time: 4 ms
auf Bestellung 930 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+13.85 EUR
20+11.91 EUR
40+11.5 EUR
60+11.27 EUR
100+10.98 EUR
260+10.46 EUR
500+10.12 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
APF10224 APF10224 Hersteller : Panasonic Industrial Devices mech_eng_pf.pdf General Purpose Relays PF Relay
auf Bestellung 39 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+18.69 EUR
10+17.53 EUR
20+14.78 EUR
100+14.77 EUR
Im Einkaufswagen  Stück im Wert von  UAH
APF10224 APF10224 Hersteller : PANASONIC mech_eng_pf.pdf?f_cd=300412 Description: PANASONIC - APF10224 - Universelles Leistungsrelais, Baureihe APF, monostabil, SPST-NO, 24V DC, 6A
tariffCode: 85364900
rohsCompliant: YES
Zulassungen & Normen: UL, VDE
Relaisanschlüsse: Lötanschlüsse
hazardous: false
rohsPhthalatesCompliant: YES
Spulentyp: Monostabil
Kontaktmaterial: Silber-Nickel
Kontaktstrom: 6A
usEccn: EAR99
Spulenwiderstand: 3.388kohm
euEccn: NLR
Kontaktspannung V DC: -VDC
Relaismontage: Durchsteckmontage
Produktpalette: APF
productTraceability: No
Spulenspannung: 24VDC
Kontaktkonfiguration: SPST-NO
Kontaktspannung V AC: 250VAC
auf Bestellung 14 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
APF10224 APF10224 Hersteller : Panasonic Electric Works mech_eng_pf.pdf Power Relay 24VDC 6A SPST-NO(28x5x15)mm THT
auf Bestellung 420 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
