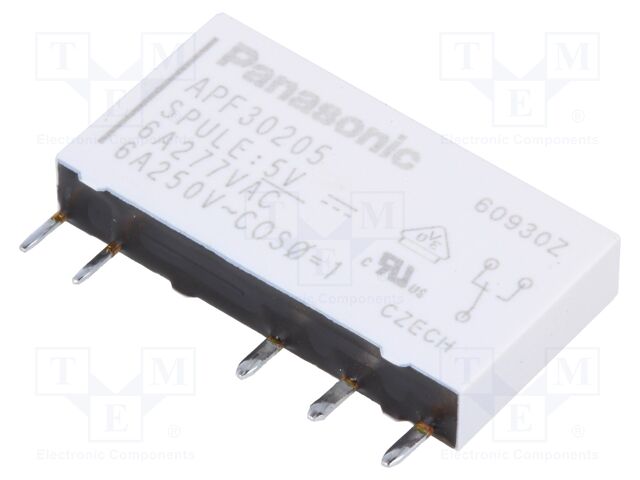

APF30205

Hersteller: PANASONIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 6A; APF
Manufacturer series: APF
Contact material: AgNi
Type of relay: electromagnetic
Relay variant: miniature
Mounting: PCB
Contacts configuration: SPDT
Operating temperature: -40...85°C
Body dimensions: 28x5x15mm
Coil current: 34mA
Coil power consumption: 170mW
Coil voltage min.: 3.5V DC
Rated coil voltage: 5V DC
Contact current max.: 6A
AC contacts rating @R: 6A / 250V AC
Coil resistance: 147Ω
Switched voltage: max. 250V AC
Mechanical durability: 5000000 cycles

Hersteller: Panasonic Industrial Devices
General Purpose Relays APF Relay

Hersteller: Panasonic Electric Works
Description: RELAY GEN PURPOSE SPDT 6A 5V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 5VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Relay Type: General Purpose
Coil Current: 34 mA
Coil Type: Non Latching
Contact Material: Silver Nickel (AgNi)
Contact Form: SPDT (1 Form C)
Contact Rating (Current): 6 A
Switching Voltage: 250VAC - Max
Must Release Voltage: 0.25 VDC
Must Operate Voltage: 3.5 VDC
Operate Time: 8 ms
Release Time: 4 ms
Part Status: Active

Hersteller: PANASONIC
Description: PANASONIC - APF30205 - Universelles Leistungsrelais, Baureihe APF, monostabil, SPDT, 5V DC, 6A
tariffCode: 85364900
rohsCompliant: YES
Zulassungen & Normen: UL, VDE
Relaisanschlüsse: Lötanschlüsse
hazardous: false
rohsPhthalatesCompliant: YES
Spulentyp: Monostabil
Kontaktmaterial: Silber-Nickel
isCanonical: Y
Kontaktstrom: 6A
usEccn: EAR99
Spulenwiderstand: 147ohm
euEccn: NLR
Kontaktspannung V DC: -
Relaismontage: Durchsteckmontage
Produktpalette: PF Series
productTraceability: No
Spulenspannung: 5VDC
Kontaktkonfiguration: SPDT
Kontaktspannung V AC: 250V
SVHC: No SVHC (23-Jan-2024)
