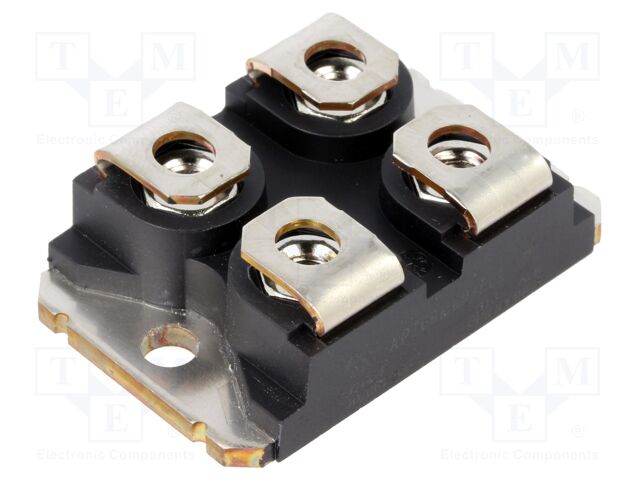

APT60M60JFLL MICROCHIP TECHNOLOGY
Hersteller: MICROCHIP TECHNOLOGYCategory: Transistor modules MOSFET
Description: Module; single transistor; 600V; 70A; ISOTOP; screw; Idm: 280A; 694W
Mechanical mounting: screw
Polarisation: unipolar
On-state resistance: 60mΩ
Drain current: 70A
Gate-source voltage: ±30V
Drain-source voltage: 600V
Pulsed drain current: 280A
Power dissipation: 694W
Kind of package: tube
Type of semiconductor module: MOSFET transistor
Semiconductor structure: single transistor
Kind of channel: enhancement
Case: ISOTOP
Technology: POWER MOS 7®
Electrical mounting: screw
Anzahl je Verpackung: 1 Stücke
auf Bestellung 10 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 151.14 EUR |
| 3+ | 136.74 EUR |
| 10+ | 120.19 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details APT60M60JFLL MICROCHIP TECHNOLOGY
Description: MOSFET N-CH 600V 70A ISOTOP, Packaging: Tube, Package / Case: SOT-227-4, miniBLOC, Mounting Type: Chassis Mount, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 70A (Tc), Rds On (Max) @ Id, Vgs: 60mOhm @ 35A, 10V, Power Dissipation (Max): 694W (Tc), Vgs(th) (Max) @ Id: 5V @ 5mA, Supplier Device Package: ISOTOP®, Part Status: Active, Drive Voltage (Max Rds On, Min Rds On): 10V, Vgs (Max): ±30V, Drain to Source Voltage (Vdss): 600 V, Gate Charge (Qg) (Max) @ Vgs: 289 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 12630 pF @ 25 V.
Weitere Produktangebote APT60M60JFLL nach Preis ab 120.19 EUR bis 161.87 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
APT60M60JFLL | Hersteller : MICROCHIP TECHNOLOGY |
Category: Transistor modules MOSFET Description: Module; single transistor; 600V; 70A; ISOTOP; screw; Idm: 280A; 694W Mechanical mounting: screw Polarisation: unipolar On-state resistance: 60mΩ Drain current: 70A Gate-source voltage: ±30V Drain-source voltage: 600V Pulsed drain current: 280A Power dissipation: 694W Kind of package: tube Type of semiconductor module: MOSFET transistor Semiconductor structure: single transistor Kind of channel: enhancement Case: ISOTOP Technology: POWER MOS 7® Electrical mounting: screw |
auf Bestellung 10 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
 |
APT60M60JFLL | Hersteller : Microchip Technology |
Description: MOSFET N-CH 600V 70A ISOTOP Packaging: Tube Package / Case: SOT-227-4, miniBLOC Mounting Type: Chassis Mount Operating Temperature: -55°C ~ 150°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: N-Channel Current - Continuous Drain (Id) @ 25°C: 70A (Tc) Rds On (Max) @ Id, Vgs: 60mOhm @ 35A, 10V Power Dissipation (Max): 694W (Tc) Vgs(th) (Max) @ Id: 5V @ 5mA Supplier Device Package: ISOTOP® Part Status: Active Drive Voltage (Max Rds On, Min Rds On): 10V Vgs (Max): ±30V Drain to Source Voltage (Vdss): 600 V Gate Charge (Qg) (Max) @ Vgs: 289 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 12630 pF @ 25 V |
auf Bestellung 10 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
 |
APT60M60JFLL | Hersteller : Microchip Technology |
Trans MOSFET N-CH 600V 70A 4-Pin SOT-227 |
Produkt ist nicht verfügbar |
|||||||||
| APT60M60JFLL | Hersteller : Microchip Technology |
Discrete Semiconductor Modules FG, FREDFET, 600V, 0.060_OHM, SOT-227 |
Produkt ist nicht verfügbar |
