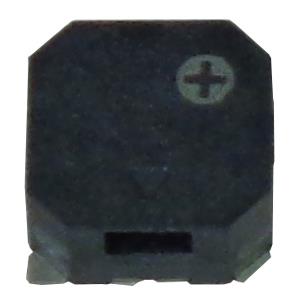

AST0827MW-03AQ Mallory Sonalert Products Inc.
Hersteller: Mallory Sonalert Products Inc.
Description: BUZZER MAGNETIC 3V 0.34X0.34 SMD
Packaging: Strip
Size / Dimension: 0.335" L x 0.335" W (8.50mm x 8.50mm)
Mounting Type: Surface Mount
Frequency: 2.731kHz
Operating Temperature: -20°C ~ 70°C
Sound Pressure Level (SPL): 85dB @ 3V, 10cm
Current - Supply: 80mA
Input Type: Peak-Peak Signal
Operating Mode: Single Tone
Voltage Range: 2 ~ 4V
Technology: Magnetic
Termination: Solder Pads
Port Location: Side
Driver Circuitry: Transducer, Externally Driven
Height - Seated (Max): 0.157" (4.00mm)
Part Status: Active
Voltage - Rated: 3 V
Produktrezensionen
Produktbewertung abgeben
Technische Details AST0827MW-03AQ Mallory Sonalert Products Inc.
Description: BUZZER MAGNETIC 3V 0.34X0.34 SMD, Packaging: Strip, Size / Dimension: 0.335" L x 0.335" W (8.50mm x 8.50mm), Mounting Type: Surface Mount, Frequency: 2.731kHz, Operating Temperature: -20°C ~ 70°C, Sound Pressure Level (SPL): 85dB @ 3V, 10cm, Current - Supply: 80mA, Input Type: Peak-Peak Signal, Operating Mode: Single Tone, Voltage Range: 2 ~ 4V, Technology: Magnetic, Termination: Solder Pads, Port Location: Side, Driver Circuitry: Transducer, Externally Driven, Height - Seated (Max): 0.157" (4.00mm), Part Status: Active, Voltage - Rated: 3 V.
