Produkte > C&K > ATP19-SL1-512-B0SA-03Q

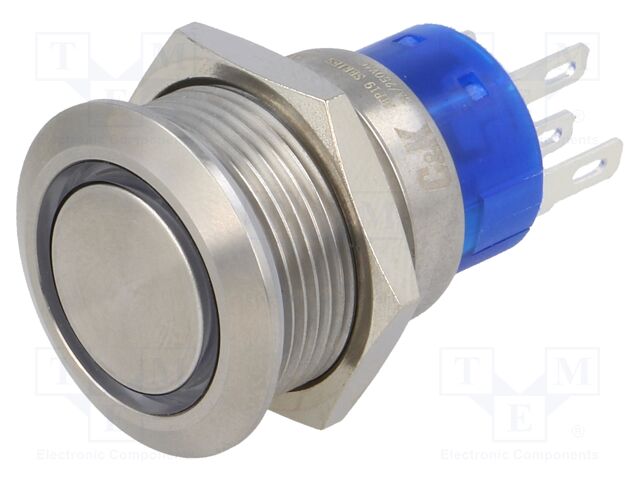

ATP19-SL1-512-B0SA-03Q

ATP19-SL1-512-B0SA-03Q C&K


pVersion=0046&contRep=ZT&docId=005056AB90B41ED9B5C097C6658200C4&compId=atp19.pdf?ci_sign=f498042c5e51c30f9799a626180b5bca05837650 Hersteller: C&K
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 5A/250VAC; 3A/28VDC; IP67
Operating temperature: -20...55°C
Contacts configuration: SPDT
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 3A / 28V DC
Switching method: (ON)-ON
Stable positions number: 1
Operating Force: 2.5N
Illumination: LED
Illumination voltage: 12V
Button material: stainless steel
Backlight colour: yellow
Electrical life: 50000 cycles
Button shape: round
Leads: for soldering
Mounting hole diameter: Ø19mm
IP rating: IP67
Max. contact resistance:: 50mΩ
Manufacturer series: ATP
Number of positions: 2
Body material: stainless steel
Mechanical durability: 1000000 cycles
Type of switch: vandal resistant
Anzahl je Verpackung: 1 Stücke
auf Bestellung 100 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
3+27.06 EUR
40+26.01 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details ATP19-SL1-512-B0SA-03Q C&K

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 5A/250VAC; 3A/28VDC; IP67, Operating temperature: -20...55°C, Contacts configuration: SPDT, AC contacts rating @R: 5A / 250V AC, DC contacts rating @R: 3A / 28V DC, Switching method: (ON)-ON, Stable positions number: 1, Operating Force: 2.5N, Illumination: LED, Illumination voltage: 12V, Button material: stainless steel, Backlight colour: yellow, Electrical life: 50000 cycles, Button shape: round, Leads: for soldering, Mounting hole diameter: Ø19mm, IP rating: IP67, Max. contact resistance:: 50mΩ, Manufacturer series: ATP, Number of positions: 2, Body material: stainless steel, Mechanical durability: 1000000 cycles, Type of switch: vandal resistant, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote ATP19-SL1-512-B0SA-03Q nach Preis ab 26.01 EUR bis 47.73 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
ATP19-SL1-512-B0SA-03Q ATP19-SL1-512-B0SA-03Q Hersteller : C&K pVersion=0046&contRep=ZT&docId=005056AB90B41ED9B5C097C6658200C4&compId=atp19.pdf?ci_sign=f498042c5e51c30f9799a626180b5bca05837650 Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 5A/250VAC; 3A/28VDC; IP67
Operating temperature: -20...55°C
Contacts configuration: SPDT
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 3A / 28V DC
Switching method: (ON)-ON
Stable positions number: 1
Operating Force: 2.5N
Illumination: LED
Illumination voltage: 12V
Button material: stainless steel
Backlight colour: yellow
Electrical life: 50000 cycles
Button shape: round
Leads: for soldering
Mounting hole diameter: Ø19mm
IP rating: IP67
Max. contact resistance:: 50mΩ
Manufacturer series: ATP
Number of positions: 2
Body material: stainless steel
Mechanical durability: 1000000 cycles
Type of switch: vandal resistant
auf Bestellung 100 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
3+27.06 EUR
40+26.01 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
ATP19-SL1-512-B0SA-03Q ATP19-SL1-512-B0SA-03Q Hersteller : C&K atp19.pdf Pushbutton Switches 19mm Anti-vandal Sealed Pushbutton Switch
auf Bestellung 91 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+47.54 EUR
10+42.66 EUR
25+38.65 EUR
40+34.18 EUR
Im Einkaufswagen  Stück im Wert von  UAH
ATP19-SL1-512-B0SA-03Q ATP19-SL1-512-B0SA-03Q Hersteller : C&K atp19.pdf Description: SWITCH ANTI-VANDAL 19MM SEALED S
Packaging: Tray
Current Rating (Amps): 3A (AC/DC)
Mounting Type: Panel Mount, Front
Circuit: SPDT
Type: Anti-Vandal, Illuminated
Switch Function: On-Mom
Operating Temperature: -20°C ~ 55°C
Termination Style: Solder, Quick Connect - 0.110" (2.8mm)
Illumination Type, Color: LED, Yellow
Illumination Voltage (Nominal): 12 VDC
Actuator Type: Round, Button, Flush
Ingress Protection: IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions: Circular - 19.20mm Dia
Color - Actuator/Cap: Silver
Actuator Marking: No Marking
Part Status: Active
Voltage Rating - AC: 250 V
Voltage Rating - DC: 28 V
auf Bestellung 21 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+47.73 EUR
10+41.17 EUR
Im Einkaufswagen  Stück im Wert von  UAH
ATP19SL1512B0SA03Q ATP19SL1512B0SA03Q Hersteller : C&K COMPONENTS Description: C&K COMPONENTS - ATP19SL1512B0SA03Q - ANTI VANDAL SWITCH, SPDT, 3A, 28VDC, YEL
tariffCode: 85365011
rohsCompliant: Y-EX
Schalteranschlüsse: Solder Lug
Betätiger-/Kappenfarbe: Transparent
hazardous: false
rohsPhthalatesCompliant: YES
Plattenausschnitt (H x B): -
Schalterfunktion: Momentary
IP-Schutzart: IP67
usEccn: EAR99
AC-Kontaktstrom, max.: 3A
euEccn: NLR
DC-Kontaktstrom, max.: 3A
Kontaktspannung V DC: 28V
Farbe der Beleuchtung: Yellow
Durchmesser des Frontplattenausschnitts: 19mm
Schaltermontage: Panel Mount
Produktpalette: ATP19 Series
productTraceability: No
Druckknopf-Betätiger: Round Flat
Kontaktkonfiguration: SPDT
Kontaktspannung V AC: 250V
directShipCharge: 25
auf Bestellung 20 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
