ATV212HU40N4
  • ATV212HU40N4
  • ATV212HU40N4

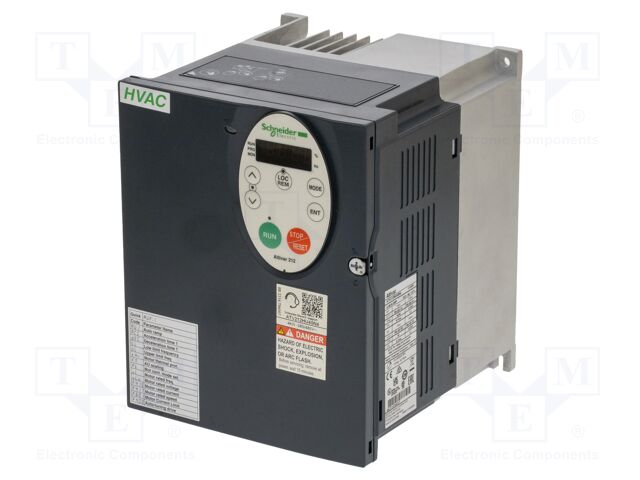

ATV212HU40N4 SCHNEIDER ELECTRIC


pVersion=0046&contRep=ZT&docId=005056AB281E1EDE808D777D0C0200D5&compId=ATV212HU40N4_EN.pdf?ci_sign=2fa5a3f78a7f5af408a82cb6b588589fd2061b30 Hersteller: SCHNEIDER ELECTRIC
Category: Three Phase Inverters
Description: Vector inverter; 4kW; 3x400VAC; 3x380÷480VAC; 0÷10VDC; 0.5÷200Hz
Mounting: for wall mounting
Application: fans; for pump
Dimensions: 150x142x184mm
Related items: TCSMCNAM3M002P
Type of module: vector inverter
Number of analog inputs: 2
Number of analog outputs: 1
The programming method: PC; push-buttons
Additional functions: PID regulator
Max motor power: 4kW
Protection: anti-overload OLP; anti-overload OPP; anti-overvoltage OVP; motor blockade; motor earth fault; overheating OTP; undervoltage UVP
Output frequency: 0.5...200Hz
Communictions protocol: BACnet/IP; Modbus
Voltage between phases (for three phase system): 3 x 380...480V AC
Inverter output voltage: 3 x 400V AC
Driver features: integrated EMC filter
Manufacturer series: ATV212
Number of digital inputs: 3
Number of digital outputs: 2
Current output: 0...20mA
Voltage output: 0...10V DC
Trade name: Altivar
Operating temperature: -10...40°C
Electrical connection: screw terminals
Current rating: 9.1A
IP rating: IP21
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+1019.66 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details ATV212HU40N4 SCHNEIDER ELECTRIC

Category: Three Phase Inverters, Description: Vector inverter; 4kW; 3x400VAC; 3x380÷480VAC; 0÷10VDC; 0.5÷200Hz, Mounting: for wall mounting, Application: fans; for pump, Dimensions: 150x142x184mm, Related items: TCSMCNAM3M002P, Type of module: vector inverter, Number of analog inputs: 2, Number of analog outputs: 1, The programming method: PC; push-buttons, Additional functions: PID regulator, Max motor power: 4kW, Protection: anti-overload OLP; anti-overload OPP; anti-overvoltage OVP; motor blockade; motor earth fault; overheating OTP; undervoltage UVP, Output frequency: 0.5...200Hz, Communictions protocol: BACnet/IP; Modbus, Voltage between phases (for three phase system): 3 x 380...480V AC, Inverter output voltage: 3 x 400V AC, Driver features: integrated EMC filter, Manufacturer series: ATV212, Number of digital inputs: 3, Number of digital outputs: 2, Current output: 0...20mA, Voltage output: 0...10V DC, Trade name: Altivar, Operating temperature: -10...40°C, Electrical connection: screw terminals, Current rating: 9.1A, IP rating: IP21, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote ATV212HU40N4 nach Preis ab 1019.66 EUR bis 1505.43 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
ATV212HU40N4
+1
ATV212HU40N4 Hersteller : SCHNEIDER ELECTRIC pVersion=0046&contRep=ZT&docId=005056AB281E1EDE808D777D0C0200D5&compId=ATV212HU40N4_EN.pdf?ci_sign=2fa5a3f78a7f5af408a82cb6b588589fd2061b30 Category: Three Phase Inverters
Description: Vector inverter; 4kW; 3x400VAC; 3x380÷480VAC; 0÷10VDC; 0.5÷200Hz
Mounting: for wall mounting
Application: fans; for pump
Dimensions: 150x142x184mm
Related items: TCSMCNAM3M002P
Type of module: vector inverter
Number of analog inputs: 2
Number of analog outputs: 1
The programming method: PC; push-buttons
Additional functions: PID regulator
Max motor power: 4kW
Protection: anti-overload OLP; anti-overload OPP; anti-overvoltage OVP; motor blockade; motor earth fault; overheating OTP; undervoltage UVP
Output frequency: 0.5...200Hz
Communictions protocol: BACnet/IP; Modbus
Voltage between phases (for three phase system): 3 x 380...480V AC
Inverter output voltage: 3 x 400V AC
Driver features: integrated EMC filter
Manufacturer series: ATV212
Number of digital inputs: 3
Number of digital outputs: 2
Current output: 0...20mA
Voltage output: 0...10V DC
Trade name: Altivar
Operating temperature: -10...40°C
Electrical connection: screw terminals
Current rating: 9.1A
IP rating: IP21
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+1019.66 EUR
Im Einkaufswagen  Stück im Wert von  UAH
ATV212HU40N4 ATV212HU40N4 Hersteller : Schneider Electric c486197eabc6cff0d6ebd9fb21b86ad0f6c6c574.pdf Description: VARIABLE SPEED DRIVE ATV212 - 4K
Packaging: Box
Mounting Type: Chassis Mount
Current - Output: 9.1A
Interface: RS-485
Operating Temperature: -10°C ~ 50°C
Voltage - Supply: 323V ~ 528V
Voltage - Load: 380 ~ 480V
Number of Motors: 1
Wattage - Load: 3728 W
auf Bestellung 1 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+1281.49 EUR
Im Einkaufswagen  Stück im Wert von  UAH
ATV212HU40N4 ATV212HU40N4 Hersteller : Schneider Electric c486197eabc6cff0d6ebd9fb21b86ad0f6c6c574.pdf Motor Drives SPEEDDRIVE 380-480VAC 5HP,ATV212
auf Bestellung 4 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+1505.43 EUR
Im Einkaufswagen  Stück im Wert von  UAH
