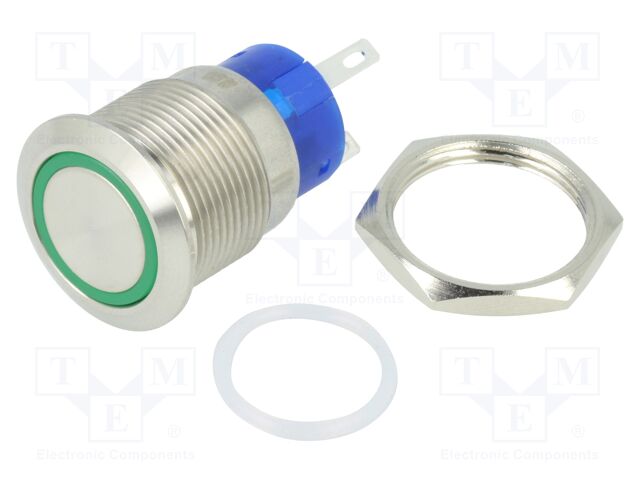

AV1910E624Q04 TE Connectivity
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; AV; 3A/250VAC; IP67
Illumination voltage: 24V DC
Mechanical durability: 1000000 cycles
Body colour: silver
AC contacts rating @R: 3A / 250V AC
Operating temperature: -20...55°C
Button shape: round
Contacts configuration: SPST-NO
Stable positions number: 1
Leads: connectors
Operating Force: 2.5N
Backlight colour: green
Key stroke: 3.2mm
Switching method: OFF-(ON)
Min. insulation resistance: 1GΩ
Max. contact resistance:: 50mΩ
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Illumination: LED; ring
Number of positions: 2
IP rating: IP67
Contact plating: silver plated
Mounting: on panel
Contact material: copper
Mounting hole dimensions: Ø19.2mm
Manufacturer series: AV
Flammability rating: UL94V-2
Type of switch: vandal resistant
| Anzahl | Privatkunde |
|---|---|
| 4+ | 24.17 EUR |
| 5+ | 22.61 EUR |
| 10+ | 22.12 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details AV1910E624Q04 TE Connectivity
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; AV; 3A/250VAC; IP67, Illumination voltage: 24V DC, Mechanical durability: 1000000 cycles, Body colour: silver, AC contacts rating @R: 3A / 250V AC, Operating temperature: -20...55°C, Button shape: round, Contacts configuration: SPST-NO, Stable positions number: 1, Leads: connectors, Operating Force: 2.5N, Backlight colour: green, Key stroke: 3.2mm, Switching method: OFF-(ON), Min. insulation resistance: 1GΩ, Max. contact resistance:: 50mΩ, Leads dimensions: 2.8x0.5mm, Electrical life: 50000 cycles, Illumination: LED; ring, Number of positions: 2, IP rating: IP67, Contact plating: silver plated, Mounting: on panel, Contact material: copper, Mounting hole dimensions: Ø19.2mm, Manufacturer series: AV, Flammability rating: UL94V-2, Type of switch: vandal resistant.
Weitere Produktangebote AV1910E624Q04 nach Preis ab 26.51 EUR bis 42.58 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AV1910E624Q04 | TE Connectivity ALCOSWITCH Switches |
Description: SWITCH PUSHBUTTON SPDT 3A 250V Packaging: Tray Current Rating (Amps): 3A (AC) Mounting Type: Panel Mount, Front Circuit: SPDT Type: Anti-Vandal, Illuminated Switch Function: On-Mom Operating Temperature: -20°C ~ 55°C Termination Style: Solder Lug Illumination Type, Color: LED, Green Illumination Voltage (Nominal): 24 VDC Actuator Type: Round, Button, Flush Ingress Protection: IP67 - Dust Tight, Waterproof Panel Cutout Dimensions: Circular - 19.20mm Dia Color - Actuator/Cap: Silver Actuator Marking: No Marking Part Status: Active Voltage Rating - AC: 250 V |
auf Bestellung 88 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
AV1910E624Q04 | ALCOSWITCH - TE CONNECTIVITY |
Description: ALCOSWITCH - TE CONNECTIVITY - AV1910E624Q04 - Vandalensicherer Schalter, Alcoswitch, tastend, AV19, 19 mm, SPST-NO, Aus-(Ein), Bündig, Natur tariffCode: 85365080 rohsCompliant: YES Schalteranschlüsse: Lötfahne Betätiger-/Kappenfarbe: Natur hazardous: false rohsPhthalatesCompliant: YES Kontaktstrom, max.: 3 Plattenausschnitt (H x B): - Schalterfunktion: Aus-(Ein) IP-Schutzart: IP67 usEccn: EAR99 AC-Kontaktstrom, max.: 3 Betätigungskraft: 2.5 euEccn: NLR DC-Kontaktstrom, max.: - Kontaktspannung V DC: - Farbe der Beleuchtung: Grün Durchmesser des Frontplattenausschnitts: 19 Schaltermontage: Panelmontage AC-Kontaktspannung, max.: 250 Produktpalette: AV19 productTraceability: No Druckknopf-Betätiger: Bündig Kontaktkonfiguration: SPST-NO Kontaktspannung V AC: 250 SVHC: No SVHC (10-Jun-2022) |
auf Bestellung 93 Stücke: Lieferzeit 14-21 Tag (e) |
|
| AV1910E624Q04 |
|
Hersteller: TE Connectivity ALCOSWITCH Switches
Description: SWITCH PUSHBUTTON SPDT 3A 250V
Packaging: Tray
Current Rating (Amps): 3A (AC)
Mounting Type: Panel Mount, Front
Circuit: SPDT
Type: Anti-Vandal, Illuminated
Switch Function: On-Mom
Operating Temperature: -20°C ~ 55°C
Termination Style: Solder Lug
Illumination Type, Color: LED, Green
Illumination Voltage (Nominal): 24 VDC
Actuator Type: Round, Button, Flush
Ingress Protection: IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions: Circular - 19.20mm Dia
Color - Actuator/Cap: Silver
Actuator Marking: No Marking
Part Status: Active
Voltage Rating - AC: 250 V
Description: SWITCH PUSHBUTTON SPDT 3A 250V
Packaging: Tray
Current Rating (Amps): 3A (AC)
Mounting Type: Panel Mount, Front
Circuit: SPDT
Type: Anti-Vandal, Illuminated
Switch Function: On-Mom
Operating Temperature: -20°C ~ 55°C
Termination Style: Solder Lug
Illumination Type, Color: LED, Green
Illumination Voltage (Nominal): 24 VDC
Actuator Type: Round, Button, Flush
Ingress Protection: IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions: Circular - 19.20mm Dia
Color - Actuator/Cap: Silver
Actuator Marking: No Marking
Part Status: Active
Voltage Rating - AC: 250 V
auf Bestellung 88 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 42.16 EUR |
| 10+ | 36.38 EUR |
| 25+ | 34.3 EUR |
| 50+ | 32.81 EUR |
| AV1910E624Q04 |
|
Hersteller: ALCOSWITCH - TE CONNECTIVITY
Description: ALCOSWITCH - TE CONNECTIVITY - AV1910E624Q04 - Vandalensicherer Schalter, Alcoswitch, tastend, AV19, 19 mm, SPST-NO, Aus-(Ein), Bündig, Natur
tariffCode: 85365080
rohsCompliant: YES
Schalteranschlüsse: Lötfahne
Betätiger-/Kappenfarbe: Natur
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktstrom, max.: 3
Plattenausschnitt (H x B): -
Schalterfunktion: Aus-(Ein)
IP-Schutzart: IP67
usEccn: EAR99
AC-Kontaktstrom, max.: 3
Betätigungskraft: 2.5
euEccn: NLR
DC-Kontaktstrom, max.: -
Kontaktspannung V DC: -
Farbe der Beleuchtung: Grün
Durchmesser des Frontplattenausschnitts: 19
Schaltermontage: Panelmontage
AC-Kontaktspannung, max.: 250
Produktpalette: AV19
productTraceability: No
Druckknopf-Betätiger: Bündig
Kontaktkonfiguration: SPST-NO
Kontaktspannung V AC: 250
SVHC: No SVHC (10-Jun-2022)
Description: ALCOSWITCH - TE CONNECTIVITY - AV1910E624Q04 - Vandalensicherer Schalter, Alcoswitch, tastend, AV19, 19 mm, SPST-NO, Aus-(Ein), Bündig, Natur
tariffCode: 85365080
rohsCompliant: YES
Schalteranschlüsse: Lötfahne
Betätiger-/Kappenfarbe: Natur
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktstrom, max.: 3
Plattenausschnitt (H x B): -
Schalterfunktion: Aus-(Ein)
IP-Schutzart: IP67
usEccn: EAR99
AC-Kontaktstrom, max.: 3
Betätigungskraft: 2.5
euEccn: NLR
DC-Kontaktstrom, max.: -
Kontaktspannung V DC: -
Farbe der Beleuchtung: Grün
Durchmesser des Frontplattenausschnitts: 19
Schaltermontage: Panelmontage
AC-Kontaktspannung, max.: 250
Produktpalette: AV19
productTraceability: No
Druckknopf-Betätiger: Bündig
Kontaktkonfiguration: SPST-NO
Kontaktspannung V AC: 250
SVHC: No SVHC (10-Jun-2022)
auf Bestellung 93 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 6+ | 42.58 EUR |
| 7+ | 37.73 EUR |
| 10+ | 33.15 EUR |
| 20+ | 31.68 EUR |
| 50+ | 26.51 EUR |
