Produkte > PANASONIC > AV402461

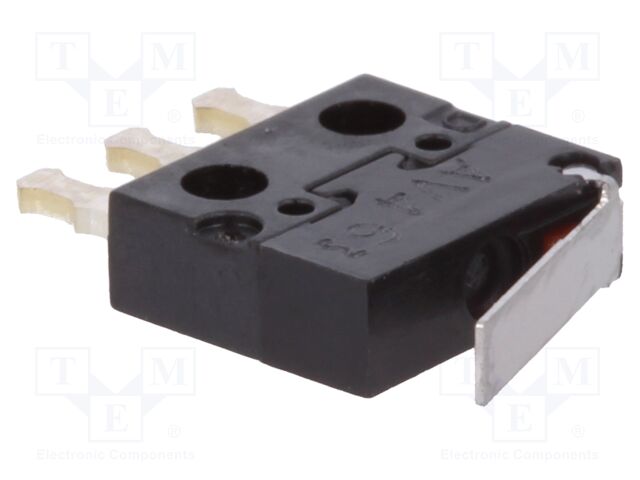

AV402461

AV402461 PANASONIC


pVersion=0046&contRep=ZT&docId=005056AB752F1EE7A786DDE5217E274A&compId=ds_av4_en.pdf?ci_sign=f85730f27c45b509477cb4100b1dd45f5be98464 Hersteller: PANASONIC
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 0.1A/30VDC; with lever; SPDT; ON-(ON)
Type of switch: microswitch SNAP ACTION
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPDT
DC contacts rating @R: 0.1A / 30V DC
IP rating: IP40
Switching method: ON-(ON)
Leads: for soldering
Electrical life: 200000 cycles
Max. contact resistance:: 200mΩ
Operating Force: 0.25N
Mechanical durability: 300000 cycles
Contact material: AgNi + Au
Operating temperature: -25...85°C
Switches features: with lever
Manufacturer series: AV4
Min. insulation resistance: 0.1GΩ
Body dimensions: 7.5x2.5x6.6mm
auf Bestellung 177 Stücke:

Lieferzeit 14-21 Tag (e)
Anzahl Preis
25+2.96 EUR
27+2.72 EUR
Mindestbestellmenge: 25
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details AV402461 PANASONIC

Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 0.1A/30VDC; with lever; SPDT; ON-(ON), Type of switch: microswitch SNAP ACTION, Number of positions: 2, Stable positions number: 1, Contacts configuration: SPDT, DC contacts rating @R: 0.1A / 30V DC, IP rating: IP40, Switching method: ON-(ON), Leads: for soldering, Electrical life: 200000 cycles, Max. contact resistance:: 200mΩ, Operating Force: 0.25N, Mechanical durability: 300000 cycles, Contact material: AgNi + Au, Operating temperature: -25...85°C, Switches features: with lever, Manufacturer series: AV4, Min. insulation resistance: 0.1GΩ, Body dimensions: 7.5x2.5x6.6mm, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote AV402461 nach Preis ab 2.72 EUR bis 4.3 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
AV402461 AV402461 Hersteller : PANASONIC pVersion=0046&contRep=ZT&docId=005056AB752F1EE7A786DDE5217E274A&compId=ds_av4_en.pdf?ci_sign=f85730f27c45b509477cb4100b1dd45f5be98464 Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 0.1A/30VDC; with lever; SPDT; ON-(ON)
Type of switch: microswitch SNAP ACTION
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPDT
DC contacts rating @R: 0.1A / 30V DC
IP rating: IP40
Switching method: ON-(ON)
Leads: for soldering
Electrical life: 200000 cycles
Max. contact resistance:: 200mΩ
Operating Force: 0.25N
Mechanical durability: 300000 cycles
Contact material: AgNi + Au
Operating temperature: -25...85°C
Switches features: with lever
Manufacturer series: AV4
Min. insulation resistance: 0.1GΩ
Body dimensions: 7.5x2.5x6.6mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 177 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
25+2.96 EUR
27+2.72 EUR
Mindestbestellmenge: 25
Im Einkaufswagen  Stück im Wert von  UAH
AV402461 AV402461 Hersteller : Panasonic Industrial Devices sw_m_eng_av4.pdf Basic / Snap Action Switches SPDT 0.1A, Hinge Lever, Solder
auf Bestellung 676 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+4.01 EUR
10+3.85 EUR
100+3.03 EUR
Im Einkaufswagen  Stück im Wert von  UAH
AV402461 AV402461 Hersteller : Panasonic 761_fileversion.pdf Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 0.1A 30VDC 0.25N Screw Mount
auf Bestellung 40 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
34+4.3 EUR
Mindestbestellmenge: 34
Im Einkaufswagen  Stück im Wert von  UAH
AV402461 AV402461 Hersteller : PANASONIC 1537841.pdf Description: PANASONIC - AV402461 - Mikroschalter, Schnappschalter, Scharnierhebel, SPDT, Lötanschluss, 100 mA, 30 VDC
tariffCode: 85365007
rohsCompliant: YES
Schalteranschlüsse: Lötanschluss
Mikroschalter-Betätiger: Scharnierhebel
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktstrom, max.: 100mA
usEccn: EAR99
AC-Kontaktspannung, nom.: -
euEccn: NLR
DC-Kontaktspannung, nom.: 30VDC
Produktpalette: AV4
productTraceability: No
Betätigungskraft, max.: 0.25N
Kontaktkonfiguration: SPDT
Mikroschaltertyp: Schnappschalter
SVHC: No SVHC (23-Jan-2024)
auf Bestellung 441 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
AV402461 AV402461 Hersteller : Panasonic 761_fileversion.pdf Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 0.1A 30VDC 0.25N Screw Mount
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
AV402461 AV402461 Hersteller : Panasonic Electric Works sw_m_eng_av4.pdf Description: SWITCH SNAP ACT SPDT 100MA 30V
Packaging: Bulk
Current Rating (Amps): 100mA (DC)
Mounting Type: Chassis Mount
Circuit: SPDT
Switch Function: On-Mom
Operating Temperature: -25°C ~ 80°C
Termination Style: Solder Lug
Actuator Type: Lever, Straight
Operating Force: 25gf
Pretravel: 0.094" (2.4mm)
Differential Travel: 0.027" (0.7mm)
Overtravel: 0.015" (0.4mm)
Operating Position: 0.250" (6.4mm)
Voltage Rating - DC: 30 V
