AWHSH112DM00G Amphenol Anytek
Hersteller: Amphenol Anytek
General Purpose Relays Commercial RelayRated Carrying Current :15AType of Sealing : Sealed and Waterproof TypeNumber of pole : one poleCoil Voltage : 12VCoil Type : Standard DC CoilContact Form : Form A
| Anzahl | Privatkunde |
|---|---|
| 2+ | 1.55 EUR |
| 10+ | 1.46 EUR |
| 20+ | 1.29 EUR |
| 60+ | 1.23 EUR |
| 100+ | 1.2 EUR |
| 260+ | 1.17 EUR |
| 500+ | 1.05 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Mindestmenge:
2 Stücke
Produktrezensionen
Produktbewertung abgeben
Technische Details AWHSH112DM00G Amphenol Anytek
Description: RELAY GEN PURPOSE SPST 15A 12V, Packaging: Box, Mounting Type: Socketable, Coil Voltage: 12VDC, Operating Temperature: -30°C ~ 85°C, Termination Style: PC Pin, Approval Agency: UL, Relay Type: General Purpose, Coil Current: 30 mA, Coil Type: Non Latching, Seal Rating: Sealed - Fully, Contact Material: Silver Alloy, Contact Form: SPST-NO (1 Form A), Contact Rating (Current): 15 A, Switching Voltage: 240VAC, 110VDC - Max, Must Release Voltage: 0.6 VDC, Must Operate Voltage: 9 VDC, Operate Time: 10 ms, Release Time: 5 ms, Load - Max Switching: 3600VA, 1650W.
Weitere Produktangebote AWHSH112DM00G nach Preis ab 1.15 EUR bis 1.76 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AWHSH112DM00G | Amphenol Anytek |
Description: RELAY GEN PURPOSE SPST 15A 12V Packaging: Box Mounting Type: Socketable Coil Voltage: 12VDC Operating Temperature: -30°C ~ 85°C Termination Style: PC Pin Approval Agency: UL Relay Type: General Purpose Coil Current: 30 mA Coil Type: Non Latching Seal Rating: Sealed - Fully Contact Material: Silver Alloy Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 15 A Switching Voltage: 240VAC, 110VDC - Max Must Release Voltage: 0.6 VDC Must Operate Voltage: 9 VDC Operate Time: 10 ms Release Time: 5 ms Load - Max Switching: 3600VA, 1650W |
auf Bestellung 9540 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
 |

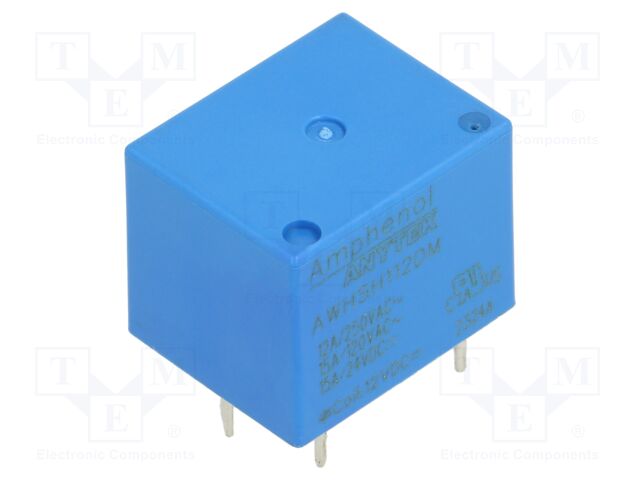

AWHSH112DM00G | AMPHENOL ANYTEK |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; Ucoil: 12VDC; SPST-NO; 15A; 12A/250VAC DC contacts rating @R: 15A / 24V DC Coil power consumption: 360mW AC contacts rating @R: 12A / 250V AC Body dimensions: 15.4x19x15mm Operating temperature: -30...85°C Contacts configuration: SPST-NO Coil voltage: 12V DC Type of relay: electromagnetic Mounting: PCB Coil resistance: 400Ω Contact material: silver alloy Manufacturer series: AWH Contact current max.: 15A |
auf Bestellung 208 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| AWHSH112DM00G |
|
Hersteller: Amphenol Anytek
Description: RELAY GEN PURPOSE SPST 15A 12V
Packaging: Box
Mounting Type: Socketable
Coil Voltage: 12VDC
Operating Temperature: -30°C ~ 85°C
Termination Style: PC Pin
Approval Agency: UL
Relay Type: General Purpose
Coil Current: 30 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Alloy
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 15 A
Switching Voltage: 240VAC, 110VDC - Max
Must Release Voltage: 0.6 VDC
Must Operate Voltage: 9 VDC
Operate Time: 10 ms
Release Time: 5 ms
Load - Max Switching: 3600VA, 1650W
Description: RELAY GEN PURPOSE SPST 15A 12V
Packaging: Box
Mounting Type: Socketable
Coil Voltage: 12VDC
Operating Temperature: -30°C ~ 85°C
Termination Style: PC Pin
Approval Agency: UL
Relay Type: General Purpose
Coil Current: 30 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver Alloy
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 15 A
Switching Voltage: 240VAC, 110VDC - Max
Must Release Voltage: 0.6 VDC
Must Operate Voltage: 9 VDC
Operate Time: 10 ms
Release Time: 5 ms
Load - Max Switching: 3600VA, 1650W
auf Bestellung 9540 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 12+ | 1.76 EUR |
| 20+ | 1.52 EUR |
| 40+ | 1.46 EUR |
| 60+ | 1.44 EUR |
| 100+ | 1.4 EUR |
| 260+ | 1.33 EUR |
| 500+ | 1.3 EUR |
| 1000+ | 1.25 EUR |
| 5000+ | 1.15 EUR |
| AWHSH112DM00G |
|
Hersteller: AMPHENOL ANYTEK
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; Ucoil: 12VDC; SPST-NO; 15A; 12A/250VAC
DC contacts rating @R: 15A / 24V DC
Coil power consumption: 360mW
AC contacts rating @R: 12A / 250V AC
Body dimensions: 15.4x19x15mm
Operating temperature: -30...85°C
Contacts configuration: SPST-NO
Coil voltage: 12V DC
Type of relay: electromagnetic
Mounting: PCB
Coil resistance: 400Ω
Contact material: silver alloy
Manufacturer series: AWH
Contact current max.: 15A
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; Ucoil: 12VDC; SPST-NO; 15A; 12A/250VAC
DC contacts rating @R: 15A / 24V DC
Coil power consumption: 360mW
AC contacts rating @R: 12A / 250V AC
Body dimensions: 15.4x19x15mm
Operating temperature: -30...85°C
Contacts configuration: SPST-NO
Coil voltage: 12V DC
Type of relay: electromagnetic
Mounting: PCB
Coil resistance: 400Ω
Contact material: silver alloy
Manufacturer series: AWH
Contact current max.: 15A
auf Bestellung 208 Stücke:
Lieferzeit 14-21 Tag (e)
