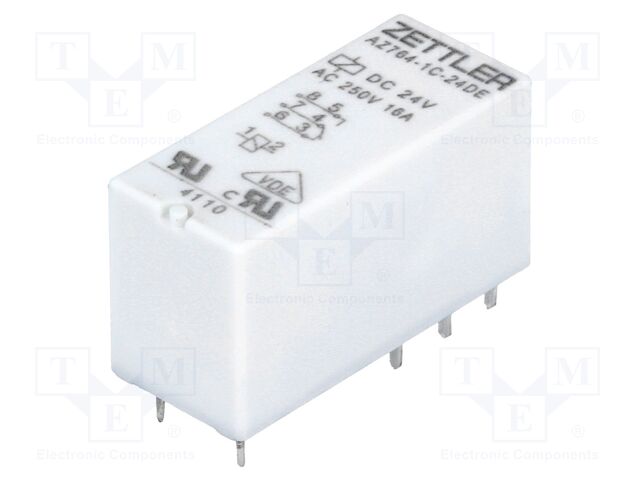

AZ764-1C-24DE ZETTLER

Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 16A; 16A/250VAC; AZ764
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 30V DC
Manufacturer series: AZ764
Switched voltage: max. 300V DC; max. 400V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Coil voltage min.: 16.8V DC
Coil voltage max.: 49.4V DC
Operate time: 7ms
Body dimensions: 29.5x13.2x16.2mm
Release time: 3ms
Coil power consumption: 200mW
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Terminal pitch: 5mm
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details AZ764-1C-24DE ZETTLER
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 16A; 16A/250VAC; AZ764, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 24V DC, Contact current max.: 16A, AC contacts rating @R: 16A / 250V AC, DC contacts rating @R: 16A / 30V DC, Manufacturer series: AZ764, Switched voltage: max. 300V DC; max. 400V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 1.44kΩ, Coil voltage min.: 16.8V DC, Coil voltage max.: 49.4V DC, Operate time: 7ms, Body dimensions: 29.5x13.2x16.2mm, Release time: 3ms, Coil power consumption: 200mW, Operating temperature: -40...85°C, Contact resistance: 100mΩ, Terminal pitch: 5mm, Anzahl je Verpackung: 1 Stücke.
