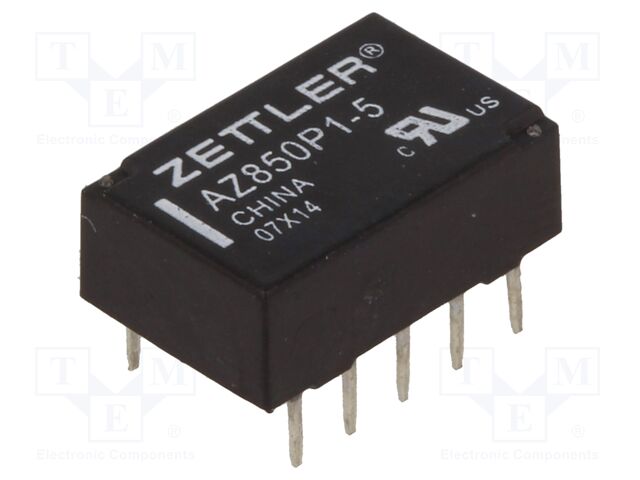

AZ850P1-5 ZETTLER
Hersteller: ZETTLERCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; AZ850
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 1A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 1A / 30V DC
Manufacturer series: AZ850
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: bistable; subminiature
Mounting: PCB
Coil resistance: 250Ω
Coil voltage min.: 3.75V DC
Coil voltage max.: 14.5V DC
Body dimensions: 14x9x5mm
Coil power consumption: 84mW
Terminal pitch: 2.54mm
Design: single coil
Operating temperature: -55...90°C
Mechanical durability: 100000000 cycles
Case: DIP10
Release time: 1ms
Operate time: 2ms
Contact resistance: 70mΩ
Switching capacity: 30W; 50VA
Soldering temperature: 250°C
Test voltage: 1.5kV
Anzahl je Verpackung: 1 Stücke
auf Bestellung 652 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 39+ | 1.84 EUR |
| 45+ | 1.6 EUR |
| 50+ | 1.44 EUR |
| 100+ | 1.2 EUR |
| 500+ | 1.09 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details AZ850P1-5 ZETTLER
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; AZ850, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 5V DC, Contact current max.: 1A, AC contacts rating @R: 0.5A / 125V AC, DC contacts rating @R: 1A / 30V DC, Manufacturer series: AZ850, Switched voltage: max. 220V DC; max. 250V AC, Relay variant: bistable; subminiature, Mounting: PCB, Coil resistance: 250Ω, Coil voltage min.: 3.75V DC, Coil voltage max.: 14.5V DC, Body dimensions: 14x9x5mm, Coil power consumption: 84mW, Terminal pitch: 2.54mm, Design: single coil, Operating temperature: -55...90°C, Mechanical durability: 100000000 cycles, Case: DIP10, Release time: 1ms, Operate time: 2ms, Contact resistance: 70mΩ, Switching capacity: 30W; 50VA, Soldering temperature: 250°C, Test voltage: 1.5kV, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote AZ850P1-5 nach Preis ab 1.09 EUR bis 2.61 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
AZ850P1-5 | Hersteller : ZETTLER |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 1A; 0.5A/125VAC; AZ850 Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 5V DC Contact current max.: 1A AC contacts rating @R: 0.5A / 125V AC DC contacts rating @R: 1A / 30V DC Manufacturer series: AZ850 Switched voltage: max. 220V DC; max. 250V AC Relay variant: bistable; subminiature Mounting: PCB Coil resistance: 250Ω Coil voltage min.: 3.75V DC Coil voltage max.: 14.5V DC Body dimensions: 14x9x5mm Coil power consumption: 84mW Terminal pitch: 2.54mm Design: single coil Operating temperature: -55...90°C Mechanical durability: 100000000 cycles Case: DIP10 Release time: 1ms Operate time: 2ms Contact resistance: 70mΩ Switching capacity: 30W; 50VA Soldering temperature: 250°C Test voltage: 1.5kV |
auf Bestellung 652 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
| AZ850P1-5 | Hersteller : Zettler Components Company |
Signal Relay 5VDC 1A DPDT(14x9x5)mm THT |
auf Bestellung 724 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
 |
AZ850P1-5 | Hersteller : American Zettler |
Description: RELAY GENERAL PURPOSE DPDT 1A 5V Packaging: Box Mounting Type: Through Hole Coil Voltage: 5VDC Operating Temperature: -40°C ~ 70°C Termination Style: PC Pin Approval Agency: cUR, UL Relay Type: General Purpose Coil Current: 20 mA Coil Type: Latching, Single Coil Seal Rating: Sealed - Fully Contact Material: Silver Palladium (AgPd), Gold (Au) Contact Form: DPDT (2 Form C) Contact Rating (Current): 1 A Switching Voltage: 250VAC, 220VDC - Max Must Release Voltage: 0.5 VDC Must Operate Voltage: 3.8 VDC Operate Time: 2 ms Release Time: 1 ms Part Status: Active Load - Max Switching: 250VA, 220W |
Produkt ist nicht verfügbar |
