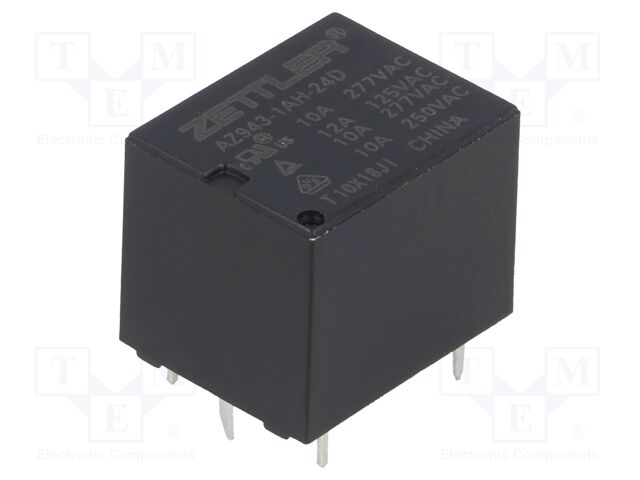

AZ943-1AH-24D ZETTLER
Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 15A; 10A/277VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 15A
AC contacts rating @R: 10A / 277V AC
DC contacts rating @R: 10A / 30V DC
Manufacturer series: AZ943
Switched voltage: max. 30V DC; max. 300V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.6kΩ
Operate time: 10ms
Body dimensions: 19x15.3x15.7mm
Release time: 5ms
Coil power consumption: 203mW
Contact resistance: 100mΩ
Terminal pitch: 2mm
Operating temperature: -40...70°C
Contact material: AgSnO2
IP rating: IP64
| Anzahl | Preis |
|---|---|
| 53+ | 1.37 EUR |
| 67+ | 1.08 EUR |
| 75+ | 0.96 EUR |
| 80+ | 0.9 EUR |
| 88+ | 0.82 EUR |
| 106+ | 0.68 EUR |
| 120+ | 0.66 EUR |
| 200+ | 0.64 EUR |
| 500+ | 0.6 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details AZ943-1AH-24D ZETTLER
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 15A; 10A/277VAC, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 24V DC, Contact current max.: 15A, AC contacts rating @R: 10A / 277V AC, DC contacts rating @R: 10A / 30V DC, Manufacturer series: AZ943, Switched voltage: max. 30V DC; max. 300V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 1.6kΩ, Operate time: 10ms, Body dimensions: 19x15.3x15.7mm, Release time: 5ms, Coil power consumption: 203mW, Contact resistance: 100mΩ, Terminal pitch: 2mm, Operating temperature: -40...70°C, Contact material: AgSnO2, IP rating: IP64.
Weitere Produktangebote AZ943-1AH-24D
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
  |
AZ943-1AH-24D Produktcode: 183512
zu Favoriten hinzufügen
Lieblingsprodukt
|
ZETTLER |
Relais Relaistyp: Мініатюрне Beschreibung: Тип контактів: 1A. Uкотушки: 24VDC. Abmessungen: 19x15,3x15,7 mm Spulenspannung: 24 VDC Strom max: 10 A Kontaktkonfiguration: SPST-NO(1A) Schaltspannung: 250 VAC; 30 VDC |
Produkt ist nicht verfügbar
|
Im Einkaufswagen Stück im Wert von UAH |

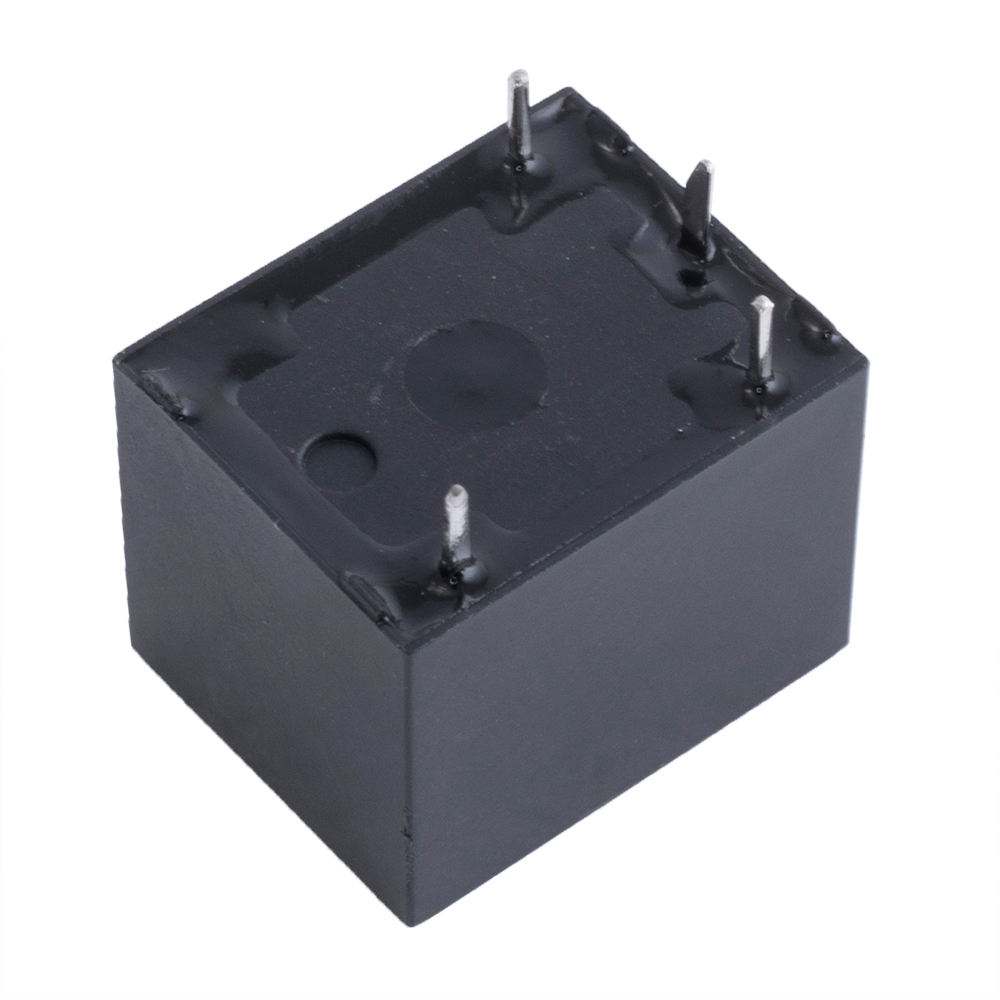

| AZ943-1AH-24D | American Zettler |
Description: RELAY GEN PURPOSE SPST 15A 24V Approval Agency: CUR, TUV, UL, VDE Load - Max Switching: 2770VA, 300W Release Time: 5 ms Operate Time: 10 ms Must Operate Voltage: 18 VDC Must Release Voltage: 2.4 VDC Switching Voltage: 277VAC, 30VDC - Max Contact Rating (Current): 15 A Contact Form: SPST-NO (1 Form A) Contact Material: Silver Tin Oxide (AgSnO) Seal Rating: Sealed - Flux Protection Coil Type: Non Latching Coil Current: 15 mA Relay Type: General Purpose Termination Style: PC Pin Operating Temperature: -40°C ~ 90°C Coil Voltage: 24VDC Mounting Type: Through Hole Packaging: Tube Coil Insulation: Class B |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 1000 Stücke Im Einkaufswagen Stück im Wert von UAH |
| AZ943-1AH-24D Produktcode: 183512
zu Favoriten hinzufügen
Lieblingsprodukt
|
Hersteller: ZETTLER
Relais
Relaistyp: Мініатюрне
Beschreibung: Тип контактів: 1A. Uкотушки: 24VDC.
Abmessungen: 19x15,3x15,7 mm
Spulenspannung: 24 VDC
Strom max: 10 A
Kontaktkonfiguration: SPST-NO(1A)
Schaltspannung: 250 VAC; 30 VDC
Relais
Relaistyp: Мініатюрне
Beschreibung: Тип контактів: 1A. Uкотушки: 24VDC.
Abmessungen: 19x15,3x15,7 mm
Spulenspannung: 24 VDC
Strom max: 10 A
Kontaktkonfiguration: SPST-NO(1A)
Schaltspannung: 250 VAC; 30 VDC
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| AZ943-1AH-24D |
Hersteller: American Zettler
Description: RELAY GEN PURPOSE SPST 15A 24V
Approval Agency: CUR, TUV, UL, VDE
Load - Max Switching: 2770VA, 300W
Release Time: 5 ms
Operate Time: 10 ms
Must Operate Voltage: 18 VDC
Must Release Voltage: 2.4 VDC
Switching Voltage: 277VAC, 30VDC - Max
Contact Rating (Current): 15 A
Contact Form: SPST-NO (1 Form A)
Contact Material: Silver Tin Oxide (AgSnO)
Seal Rating: Sealed - Flux Protection
Coil Type: Non Latching
Coil Current: 15 mA
Relay Type: General Purpose
Termination Style: PC Pin
Operating Temperature: -40°C ~ 90°C
Coil Voltage: 24VDC
Mounting Type: Through Hole
Packaging: Tube
Coil Insulation: Class B
Description: RELAY GEN PURPOSE SPST 15A 24V
Approval Agency: CUR, TUV, UL, VDE
Load - Max Switching: 2770VA, 300W
Release Time: 5 ms
Operate Time: 10 ms
Must Operate Voltage: 18 VDC
Must Release Voltage: 2.4 VDC
Switching Voltage: 277VAC, 30VDC - Max
Contact Rating (Current): 15 A
Contact Form: SPST-NO (1 Form A)
Contact Material: Silver Tin Oxide (AgSnO)
Seal Rating: Sealed - Flux Protection
Coil Type: Non Latching
Coil Current: 15 mA
Relay Type: General Purpose
Termination Style: PC Pin
Operating Temperature: -40°C ~ 90°C
Coil Voltage: 24VDC
Mounting Type: Through Hole
Packaging: Tube
Coil Insulation: Class B
