Produkte > ZETTLER > AZ952-1C-6DSE
AZ952-1C-6DSE

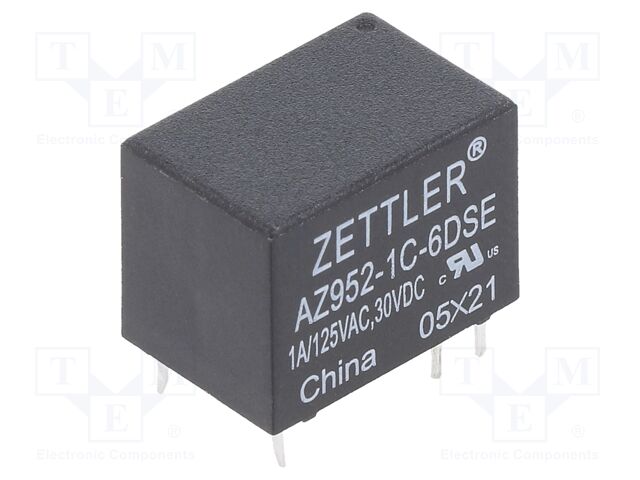

AZ952-1C-6DSE ZETTLER


AZ952.pdf Hersteller: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 6VDC; 1A; 1A/125VAC; 1A/30VDC
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 6V DC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Relay variant: subminiature
Coil resistance: 180Ω
Contact material: Ag/Au
Operating temperature: -25...70°C
Body dimensions: 15.75x10.75x11.81mm
Mounting: PCB
Coil power consumption: 200mW
Relay series: AZ952
Switched voltage: max. 60V DC; max. 220V AC
Terminal pitch: 2.54mm
AC contacts rating @R: 1A / 125V AC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 660 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis ohne MwSt
76+0.95 EUR
88+ 0.82 EUR
98+ 0.73 EUR
109+ 0.66 EUR
117+ 0.61 EUR
Mindestbestellmenge: 76
Produktrezensionen
Produktbewertung abgeben

Technische Details AZ952-1C-6DSE ZETTLER

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 6VDC; 1A; 1A/125VAC; 1A/30VDC, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 6V DC, Contact current max.: 1A, DC contacts rating @R: 1A / 30V DC, Relay variant: subminiature, Coil resistance: 180Ω, Contact material: Ag/Au, Operating temperature: -25...70°C, Body dimensions: 15.75x10.75x11.81mm, Mounting: PCB, Coil power consumption: 200mW, Relay series: AZ952, Switched voltage: max. 60V DC; max. 220V AC, Terminal pitch: 2.54mm, AC contacts rating @R: 1A / 125V AC, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote AZ952-1C-6DSE nach Preis ab 0.61 EUR bis 0.95 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
AZ952-1C-6DSE AZ952-1C-6DSE Hersteller : ZETTLER AZ952.pdf Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 6VDC; 1A; 1A/125VAC; 1A/30VDC
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 6V DC
Contact current max.: 1A
DC contacts rating @R: 1A / 30V DC
Relay variant: subminiature
Coil resistance: 180Ω
Contact material: Ag/Au
Operating temperature: -25...70°C
Body dimensions: 15.75x10.75x11.81mm
Mounting: PCB
Coil power consumption: 200mW
Relay series: AZ952
Switched voltage: max. 60V DC; max. 220V AC
Terminal pitch: 2.54mm
AC contacts rating @R: 1A / 125V AC
auf Bestellung 660 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis ohne MwSt
76+0.95 EUR
88+ 0.82 EUR
98+ 0.73 EUR
109+ 0.66 EUR
117+ 0.61 EUR
Mindestbestellmenge: 76
AZ952-1C-6DSE Hersteller : American Zettler Description: RELAY GENERAL PURPOSE SPDT 1A 6V
Packaging: Box
Mounting Type: Through Hole
Coil Voltage: 6VDC
Operating Temperature: -25°C ~ 75°C
Termination Style: PC Pin
Approval Agency: cURus, UL
Relay Type: General Purpose
Coil Current: 33.3 mA
Coil Type: Non Latching
Seal Rating: Sealed - Fully
Contact Material: Silver (Ag), Gold (Au)
Contact Form: SPDT (1 Form C)
Contact Rating (Current): 1 A
Switching Voltage: 220VAC, 60VDC - Max
Must Release Voltage: 0.6 VDC
Must Operate Voltage: 4.5 VDC
Operate Time: 5 ms
Release Time: 1 ms
Load - Max Switching: 125VA, 30W
Produkt ist nicht verfügbar
