Produkte > ZETTLER > AZ983-1A-12DE
AZ983-1A-12DE

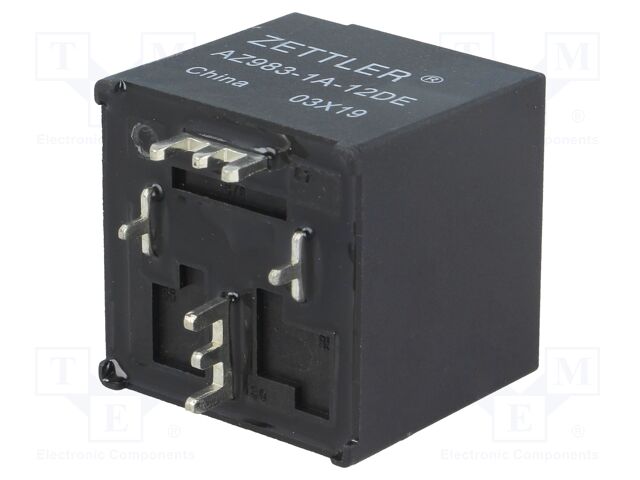

AZ983-1A-12DE ZETTLER


pVersion=0046&contRep=ZT&docId=005056AB281E1EDD83B6D2CA5581A0D2&compId=AZ983.pdf?ci_sign=7634a61dd161a44047b24ff2f21a508b3d06039a Hersteller: ZETTLER
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 80A; automotive
Operating temperature: -40...85°C
Body dimensions: 29x29x26.5mm
Contact material: AgSnO2
Coil resistance: 80Ω
Contacts configuration: SPST-NO
DC contacts rating @R: 80A / 14V DC
Type of relay: electromagnetic
Relay variant: automotive
Rated coil voltage: 12V DC
Coil power consumption: 760mW
Switched voltage: max. 28V DC
Contact current max.: 80A
Contact resistance: 50mΩ
Manufacturer series: AZ983
Mounting: PCB
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1348 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
18+4.08 EUR
21+3.49 EUR
26+2.82 EUR
27+2.66 EUR
Mindestbestellmenge: 18
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details AZ983-1A-12DE ZETTLER

Category: Automotive Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 80A; automotive, Operating temperature: -40...85°C, Body dimensions: 29x29x26.5mm, Contact material: AgSnO2, Coil resistance: 80Ω, Contacts configuration: SPST-NO, DC contacts rating @R: 80A / 14V DC, Type of relay: electromagnetic, Relay variant: automotive, Rated coil voltage: 12V DC, Coil power consumption: 760mW, Switched voltage: max. 28V DC, Contact current max.: 80A, Contact resistance: 50mΩ, Manufacturer series: AZ983, Mounting: PCB, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote AZ983-1A-12DE nach Preis ab 2.66 EUR bis 7.22 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
AZ983-1A-12DE AZ983-1A-12DE Hersteller : ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDD83B6D2CA5581A0D2&compId=AZ983.pdf?ci_sign=7634a61dd161a44047b24ff2f21a508b3d06039a Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 80A; automotive
Operating temperature: -40...85°C
Body dimensions: 29x29x26.5mm
Contact material: AgSnO2
Coil resistance: 80Ω
Contacts configuration: SPST-NO
DC contacts rating @R: 80A / 14V DC
Type of relay: electromagnetic
Relay variant: automotive
Rated coil voltage: 12V DC
Coil power consumption: 760mW
Switched voltage: max. 28V DC
Contact current max.: 80A
Contact resistance: 50mΩ
Manufacturer series: AZ983
Mounting: PCB
auf Bestellung 1348 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
18+4.08 EUR
21+3.49 EUR
26+2.82 EUR
27+2.66 EUR
Mindestbestellmenge: 18
Im Einkaufswagen  Stück im Wert von  UAH
AZ983-1A-12DE AZ983-1A-12DE Hersteller : American Zettler az983.pdf Description: RELAY AUTOMOTIVE SPST 80A 12V
Packaging: Tray
Features: Sealed - Epoxy
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Coil Current: 150 mA
Coil Type: Non Latching
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 80 A
Switching Voltage: 75VDC - Max
Must Release Voltage: 1.2 VDC
Must Operate Voltage: 7.8 VDC
Operate Time: 7 ms
Release Time: 5 ms
Part Status: Active
auf Bestellung 512 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+7.22 EUR
10+6.76 EUR
25+6.01 EUR
40+5.71 EUR
100+5.41 EUR
300+4.81 EUR
500+4.51 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
