AZSR190-1A-24DL

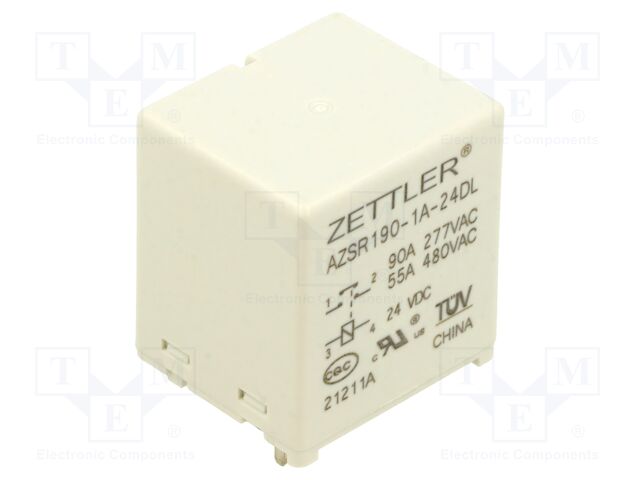

AZSR190-1A-24DL ZETTLER


pVersion=0046&contRep=ZT&docId=005056AB281E1EDE90CB7100EC0D40D5&compId=AZSR190.pdf?ci_sign=cd3f39405a639154ffa9e9f537ea817c39412b46 Hersteller: ZETTLER
Category: Power Electromagnetic Relays
Description: Relay: electromagnetic power; SPST-NO; Ucoil: 24VDC; 90A; PCB; 1.9W
Mounting: PCB
Operating temperature: -40...85°C
Body dimensions: 38x33x41.5mm
Contact material: AgSnO2
Coil resistance: 300Ω
Contacts configuration: SPST-NO
AC contacts rating @R: 55A / 800V AC
Type of relay: electromagnetic power
Rated coil voltage: 24V DC
Coil power consumption: 1.9W
Switched voltage: max. 800V AC
Contact current max.: 90A
Contact resistance: 1mΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 96 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
5+14.51 EUR
7+10.68 EUR
8+10.10 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details AZSR190-1A-24DL ZETTLER

Description: RELAY EV CHG SOLAR SPST 100A 24V, Packaging: Tube, Mounting Type: Through Hole, Coil Voltage: 24VDC, Operating Temperature: -40°C ~ 85°C, Termination Style: PC Pin, Relay Type: EV Charging, Solar, Coil Current: 80 mA, Coil Type: Non Latching, Contact Material: Silver Nickel (AgNi), Contact Form: SPST-NO (1 Form A), Contact Rating (Current): 100 A, Switching Voltage: 800VAC - Max, Must Release Voltage: 2.4 VDC, Must Operate Voltage: 18 VDC, Operate Time: 40 ms, Release Time: 10 ms, Coil Insulation: Class F, Approval Agency: TUV, UL, Load - Max Switching: 48000VA.

Weitere Produktangebote AZSR190-1A-24DL nach Preis ab 10.10 EUR bis 23.62 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
AZSR190-1A-24DL AZSR190-1A-24DL Hersteller : ZETTLER pVersion=0046&contRep=ZT&docId=005056AB281E1EDE90CB7100EC0D40D5&compId=AZSR190.pdf?ci_sign=cd3f39405a639154ffa9e9f537ea817c39412b46 Category: Power Electromagnetic Relays
Description: Relay: electromagnetic power; SPST-NO; Ucoil: 24VDC; 90A; PCB; 1.9W
Mounting: PCB
Operating temperature: -40...85°C
Body dimensions: 38x33x41.5mm
Contact material: AgSnO2
Coil resistance: 300Ω
Contacts configuration: SPST-NO
AC contacts rating @R: 55A / 800V AC
Type of relay: electromagnetic power
Rated coil voltage: 24V DC
Coil power consumption: 1.9W
Switched voltage: max. 800V AC
Contact current max.: 90A
Contact resistance: 1mΩ
auf Bestellung 96 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
5+14.51 EUR
7+10.68 EUR
8+10.10 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
AZSR190-1A-24DL Hersteller : American Zettler azsr190.pdf Description: RELAY EV CHG SOLAR SPST 100A 24V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 24VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Relay Type: EV Charging, Solar
Coil Current: 80 mA
Coil Type: Non Latching
Contact Material: Silver Nickel (AgNi)
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 100 A
Switching Voltage: 800VAC - Max
Must Release Voltage: 2.4 VDC
Must Operate Voltage: 18 VDC
Operate Time: 40 ms
Release Time: 10 ms
Coil Insulation: Class F
Approval Agency: TUV, UL
Load - Max Switching: 48000VA
auf Bestellung 340 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+23.62 EUR
10+21.01 EUR
30+19.96 EUR
50+18.91 EUR
100+17.86 EUR
250+16.28 EUR
Im Einkaufswagen  Stück im Wert von  UAH
