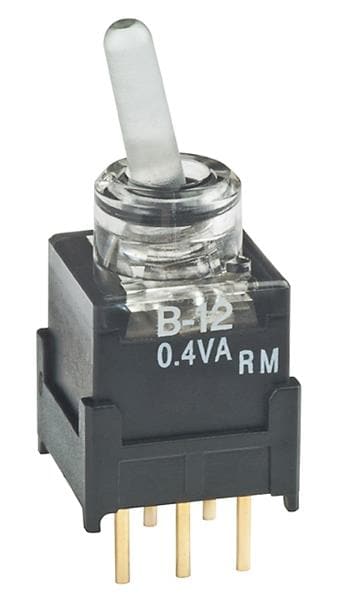

B12JJPCF NKK Switches
Hersteller: NKK Switches
Description: SWITCH TOGGLE SPDT 0.4VA 28V
Packaging: Bulk
Features: Epoxy Sealed Terminals
Current Rating (Amps): 0.4VA (AC/DC)
Mounting Type: Through Hole
Circuit: SPDT
Switch Function: On-On
Operating Temperature: -25°C ~ 55°C
Termination Style: PC Pin
Illumination Type, Color: LED, Green/Red
Illumination Voltage (Nominal): 1.95, 3.3 VDC
Illumination: Illuminated
Bushing Thread: Unthreaded
Actuator Length: 6.30mm
Actuator Type: Standard Round
Part Status: Active
Voltage Rating - AC: 28 V
Voltage Rating - DC: 28 V
Description: SWITCH TOGGLE SPDT 0.4VA 28V
Packaging: Bulk
Features: Epoxy Sealed Terminals
Current Rating (Amps): 0.4VA (AC/DC)
Mounting Type: Through Hole
Circuit: SPDT
Switch Function: On-On
Operating Temperature: -25°C ~ 55°C
Termination Style: PC Pin
Illumination Type, Color: LED, Green/Red
Illumination Voltage (Nominal): 1.95, 3.3 VDC
Illumination: Illuminated
Bushing Thread: Unthreaded
Actuator Length: 6.30mm
Actuator Type: Standard Round
Part Status: Active
Voltage Rating - AC: 28 V
Voltage Rating - DC: 28 V
auf Bestellung 372 Stücke:
Lieferzeit 21-28 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 28.86 EUR |
10+ | 26.07 EUR |
25+ | 24.82 EUR |
50+ | 23.56 EUR |
100+ | 22.73 EUR |
250+ | 21.33 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details B12JJPCF NKK Switches
Category: Toggle Switches, Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 0.1A/28VAC; 0.1A/28VDC; THT, Type of switch: toggle, Contacts configuration: SPDT, AC contacts rating @R: 0.1A / 28V AC, DC contacts rating @R: 0.1A / 28V DC, Max. contact resistance:: 50mΩ, Switching method: ON-ON, Number of positions: 2, Stable positions number: 2, Leads: for soldering; straight, Body dimensions: 8.8x8.8x13.1mm, Mechanical durability: 100000 cycles, Operating temperature: -25...55°C, Operating Force: 1.18N, Lever length: 6.3mm, Electrical life: 50000 cycles, Contact plating: gold-plated, Min. insulation resistance: 500MΩ, Terminal pitch: 2.54mm, Contact material: brass, Body material: polyamide, Mounting: THT, Actuator material: polyamide, Illumination: LED, Manufacturer series: B, Number of terminals: 6, Poles number: 1, Kind of material: fiber glass reinforced, Kind of toggle: round, Backlight colour: red/green.
Weitere Produktangebote B12JJPCF
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
B12JJPCF | Hersteller : NKK Switches | Illuminated Toggle Switches SPDT ON-ON 0.4VA RED/GRN STRAIGHT PC |
auf Bestellung 9 Stücke: Lieferzeit 14-28 Tag (e) |
||
B12JJPCF | Hersteller : NKK SWITCHES |
Category: Toggle Switches Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 0.1A/28VAC; 0.1A/28VDC; THT Type of switch: toggle Contacts configuration: SPDT AC contacts rating @R: 0.1A / 28V AC DC contacts rating @R: 0.1A / 28V DC Max. contact resistance:: 50mΩ Switching method: ON-ON Number of positions: 2 Stable positions number: 2 Leads: for soldering; straight Body dimensions: 8.8x8.8x13.1mm Mechanical durability: 100000 cycles Operating temperature: -25...55°C Operating Force: 1.18N Lever length: 6.3mm Electrical life: 50000 cycles Contact plating: gold-plated Min. insulation resistance: 500MΩ Terminal pitch: 2.54mm Contact material: brass Body material: polyamide Mounting: THT Actuator material: polyamide Illumination: LED Manufacturer series: B Number of terminals: 6 Poles number: 1 Kind of material: fiber glass reinforced Kind of toggle: round Backlight colour: red/green |
Produkt ist nicht verfügbar |
||
B12JJPCF | Hersteller : NKK SWITCHES |
Category: Toggle Switches Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 0.1A/28VAC; 0.1A/28VDC; THT Type of switch: toggle Contacts configuration: SPDT AC contacts rating @R: 0.1A / 28V AC DC contacts rating @R: 0.1A / 28V DC Max. contact resistance:: 50mΩ Switching method: ON-ON Number of positions: 2 Stable positions number: 2 Leads: for soldering; straight Body dimensions: 8.8x8.8x13.1mm Mechanical durability: 100000 cycles Operating temperature: -25...55°C Operating Force: 1.18N Lever length: 6.3mm Electrical life: 50000 cycles Contact plating: gold-plated Min. insulation resistance: 500MΩ Terminal pitch: 2.54mm Contact material: brass Body material: polyamide Mounting: THT Actuator material: polyamide Illumination: LED Manufacturer series: B Number of terminals: 6 Poles number: 1 Kind of material: fiber glass reinforced Kind of toggle: round Backlight colour: red/green |
Produkt ist nicht verfügbar |
