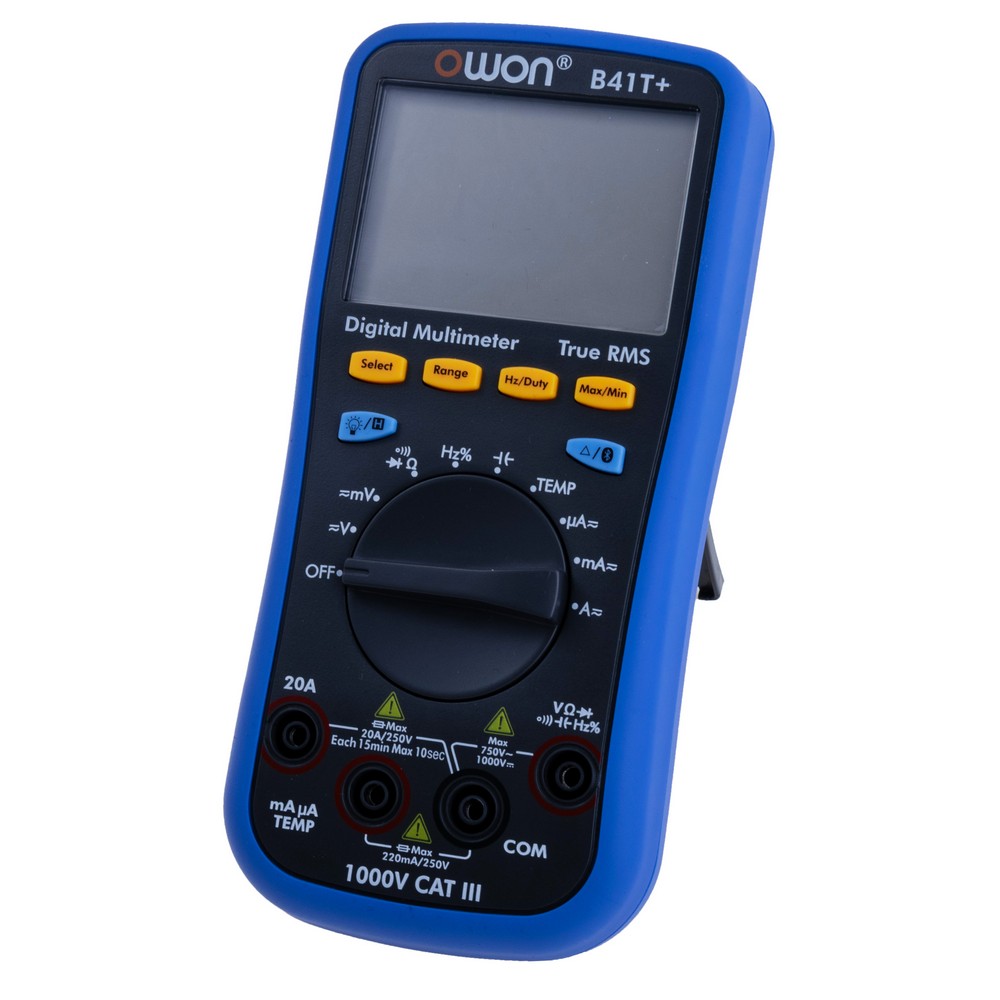

B41T+ OWON
Produktcode: 214443
Hersteller: OWONGruppe: Мультиметри
Beschreibung: Цифровий мультиметр True RMS із Bluetooth та функціями реєстратора даних. Діапазони вимірювань: DCV: 220mV/2.2V/22V/220V/1000V (±0.05), ACV: 220mV/2.2V/22V/220V/750V(±0.8), DCA: 220μA/2200μA/22mA/220mA/20A, ACA: 220μA/2200μA/22mA/220mA/20A, опір: 220Ω...220MΩ, ємність 22nF...2,2mF, частота 22Hz...22MHz, коефіцієнт заповнення 5–94.9%, температура -50°C…+400°C(-58°F…+752°F). Функції: Data Hold, MAX/MIN, тест діодів (<2.4V), прозвонка, автоматичне вимкнення, голосове попередження, Bluetooth 4.0, офлайн-запис, дисплей 21999 відліків, вимірювання змінного струму AC 40–10000Hz, оновлення 30 раз/с, живлення: 2xAA. Габарити:185x85x30mm.
22 MHz
Вимірювання напруги та струму: 220 mV...1000 V/ 220 µA...20 A
Вимірювання опору: 220 Ohm...220 MOhm
Вимірювання ємності: 22 nF...2,2 mF
Вимірювання температури: -50...+400°C
Produkt ist nicht verfügbar
erwartet 2 Stück:
2 Stück - erwartet
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote B41T+ nach Preis ab 82.02 EUR bis 174.24 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 +2 |
B41T+ | Hersteller : OWON |

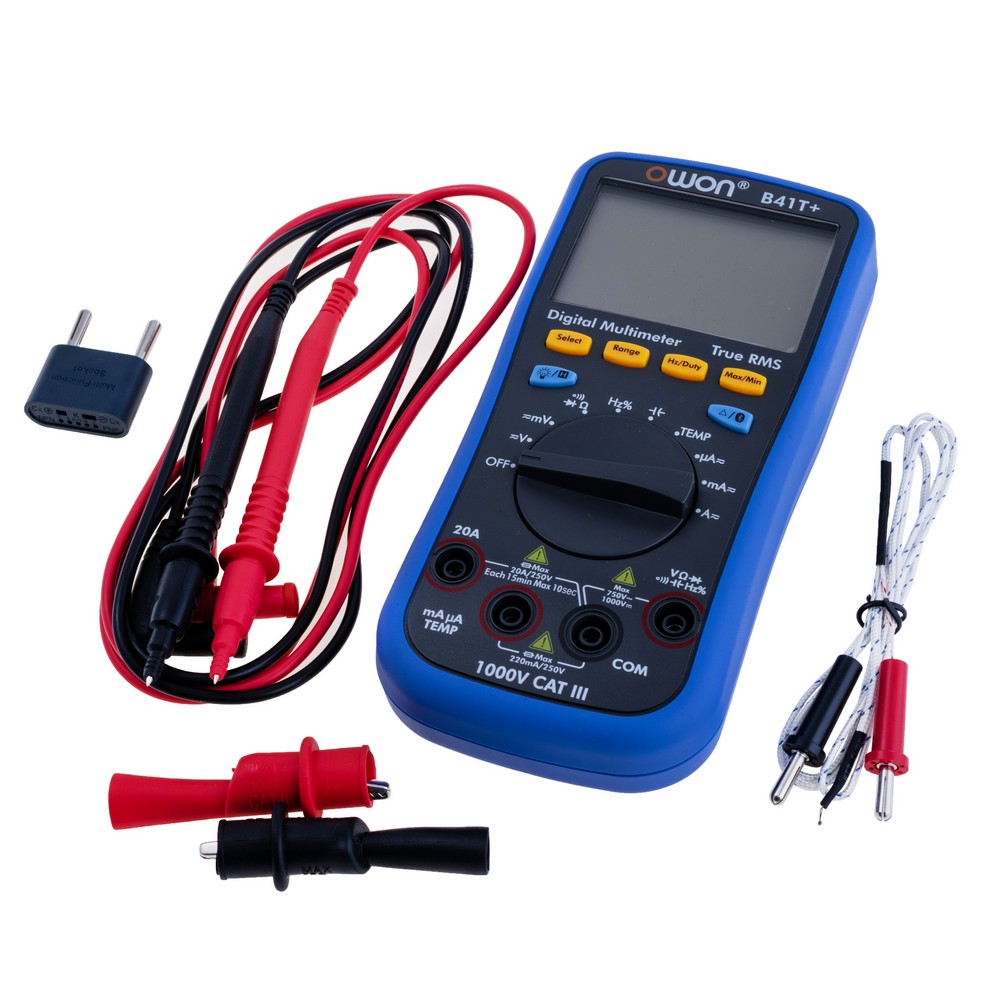

Category: Portable digital multimeters Description: Digital multimeter; Bluetooth; LCD; 4,5 digit (22000); 3x/s Sampling: 3x/s Kind of display used: LCD Measuring instrument features: automatic power-off; HOLD function; logger mode; low battery indicator; MIN/MAX/REL function Standard equipment: K-type thermocouple; test leads Software: compatible Android; compatible IOS Capacitance measuring range: 22nF; 220nF; 2.2µF; 22µF; 220µF; 2.2mF; 220mF DC current measuring range: 220µA; 2.2mA; 22mA; 220mA; 20A AC current measuring range: 220µA; 2.2mA; 22mA; 220mA; 20A Frequency measuring accuracy: ±(0.1%+4 digit) DC voltage measuring accuracy: ±(0.05% + 10 digit) DC voltage measuring range: 220mV; 2.2V; 22V; 220V; 1kV AC voltage measuring range: 220mV; 2.2V; 22V; 220V; 750V Resistance measuring accuracy: ±(0.4%+5 digit) DC current measuring accuracy: ±(0.5% + 10 digit) Dimensions (W x H x D): 85x185x30mm AC voltage measuring accuracy: ±(0.8% + 25 digit) AC current measuring accuracy: ±(1.2% + 25 digit) Capacitance measuring accuracy: ±(2.5%+ 15 digit) Temperature measurement accuracy: ±(1% + 5 digit) Resistance measuring range: 220Ω; 2.2kΩ; 22kΩ; 220kΩ; 2.2MΩ; 220MΩ Frequency measuring range: 22Hz; 220Hz; 22kHz; 220kHz; 2.2MHz; 22MHz; 220MHz Display parameters: 4,5 digit (22000) Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature Continuity test: acoustic indication; <30Ω Power supply: battery AA 1,5V x2 Type of meter: digital multimeter Interface: Bluetooth Conform to the norm: CAT III 1000V; EN 61010 True effective value measurement: True RMS Temperature measuring range: -50...400°C Anzahl je Verpackung: 1 Stücke |
auf Bestellung 76 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||
|
+2 |
B41T+ | Hersteller : OWON |
Category: Portable digital multimeters Description: Digital multimeter; Bluetooth; LCD; 4,5 digit (22000); 3x/s Sampling: 3x/s Kind of display used: LCD Measuring instrument features: automatic power-off; HOLD function; logger mode; low battery indicator; MIN/MAX/REL function Standard equipment: K-type thermocouple; test leads Software: compatible Android; compatible IOS Capacitance measuring range: 22nF; 220nF; 2.2µF; 22µF; 220µF; 2.2mF; 220mF DC current measuring range: 220µA; 2.2mA; 22mA; 220mA; 20A AC current measuring range: 220µA; 2.2mA; 22mA; 220mA; 20A Frequency measuring accuracy: ±(0.1%+4 digit) DC voltage measuring accuracy: ±(0.05% + 10 digit) DC voltage measuring range: 220mV; 2.2V; 22V; 220V; 1kV AC voltage measuring range: 220mV; 2.2V; 22V; 220V; 750V Resistance measuring accuracy: ±(0.4%+5 digit) DC current measuring accuracy: ±(0.5% + 10 digit) Dimensions (W x H x D): 85x185x30mm AC voltage measuring accuracy: ±(0.8% + 25 digit) AC current measuring accuracy: ±(1.2% + 25 digit) Capacitance measuring accuracy: ±(2.5%+ 15 digit) Temperature measurement accuracy: ±(1% + 5 digit) Resistance measuring range: 220Ω; 2.2kΩ; 22kΩ; 220kΩ; 2.2MΩ; 220MΩ Frequency measuring range: 22Hz; 220Hz; 22kHz; 220kHz; 2.2MHz; 22MHz; 220MHz Display parameters: 4,5 digit (22000) Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature Continuity test: acoustic indication; <30Ω Power supply: battery AA 1,5V x2 Type of meter: digital multimeter Interface: Bluetooth Conform to the norm: CAT III 1000V; EN 61010 True effective value measurement: True RMS Temperature measuring range: -50...400°C |
auf Bestellung 76 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||
 |
B41T+ | Hersteller : Owon Technology Lilliput Electronics (USA) Inc |
Description: DMM HANDHELD 4.5 DIGIT LCD DISP Packaging: Box Features: Auto Off, Data Logging (Internal Memory), Hold Display Type: LCD Style: Handheld Function: Voltage, Current, Resistance, Capacitance, Temperature, Frequency Type: Digital (DMM) Ranging: Auto Display Count: 21999 Functions, Extra: Diode Test Display Digits: 4.5 |
auf Bestellung 95 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||
|
