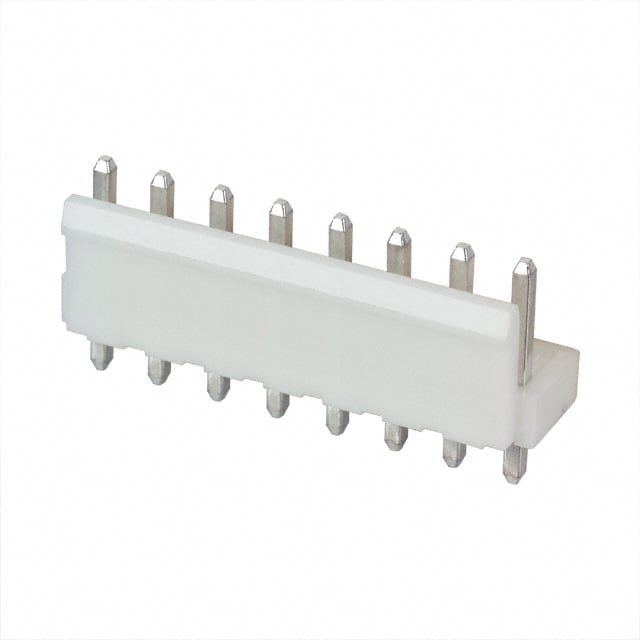

B8P-VH
Produktcode: 106082
zu Favoriten hinzufügen
Lieblingsprodukt
Hersteller:
Steckverbinder, Reihenklemmen > Steckverbindungen sonstige
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote B8P-VH nach Preis ab 0.44 EUR bis 0.83 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
B8P-VH (LF)(SN) | JST |
Category: Raster signal connectors 3,96mm Description: Connector: wire-board; socket; male; VH; PIN: 8; 10A; 250V; vertical Operating temperature: -25...85°C Electrical mounting: THT Type of connector: wire-board Kind of connector: male Connector: socket Spatial orientation: vertical Rated voltage: 0.25kV Manufacturer series: VH Contacts pitch: 3.96mm Number of pins: 8 Current rating: 10A |
auf Bestellung 157 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
 |
B8P-VH | JST Sales America Inc. |
Description: CONN HEADER VERT 8POS 3.96MM Packaging: Bulk Connector Type: Header Voltage Rating: 250V Current Rating (Amps): 10A Mounting Type: Through Hole Number of Positions: 8 Number of Rows: 1 Style: Board to Cable/Wire Operating Temperature: -25°C ~ 85°C Contact Type: Male Pin Fastening Type: Locking Ramp Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Brass Insulation Color: Natural Pitch - Mating: 0.156" (3.96mm) Contact Finish - Mating: Tin Contact Finish - Post: Tin Contact Shape: Square Contact Length - Post: 0.146" (3.70mm) Insulation Height: 0.370" (9.40mm) Shrouding: Shrouded - 1 Wall Overall Contact Length: 0.575" (14.60mm) Insulation Material: Polyamide (PA66), Nylon 6/6 Contact Length - Mating: 0.303" (7.70mm) |
auf Bestellung 31367 Stücke: Lieferzeit 10-14 Tag (e) |
|
| B8P-VH (LF)(SN) |
|
Hersteller: JST
Category: Raster signal connectors 3,96mm
Description: Connector: wire-board; socket; male; VH; PIN: 8; 10A; 250V; vertical
Operating temperature: -25...85°C
Electrical mounting: THT
Type of connector: wire-board
Kind of connector: male
Connector: socket
Spatial orientation: vertical
Rated voltage: 0.25kV
Manufacturer series: VH
Contacts pitch: 3.96mm
Number of pins: 8
Current rating: 10A
Category: Raster signal connectors 3,96mm
Description: Connector: wire-board; socket; male; VH; PIN: 8; 10A; 250V; vertical
Operating temperature: -25...85°C
Electrical mounting: THT
Type of connector: wire-board
Kind of connector: male
Connector: socket
Spatial orientation: vertical
Rated voltage: 0.25kV
Manufacturer series: VH
Contacts pitch: 3.96mm
Number of pins: 8
Current rating: 10A
auf Bestellung 157 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 157+ | 0.55 EUR |
| B8P-VH |
|
Hersteller: JST Sales America Inc.
Description: CONN HEADER VERT 8POS 3.96MM
Packaging: Bulk
Connector Type: Header
Voltage Rating: 250V
Current Rating (Amps): 10A
Mounting Type: Through Hole
Number of Positions: 8
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -25°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Natural
Pitch - Mating: 0.156" (3.96mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.146" (3.70mm)
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 1 Wall
Overall Contact Length: 0.575" (14.60mm)
Insulation Material: Polyamide (PA66), Nylon 6/6
Contact Length - Mating: 0.303" (7.70mm)
Description: CONN HEADER VERT 8POS 3.96MM
Packaging: Bulk
Connector Type: Header
Voltage Rating: 250V
Current Rating (Amps): 10A
Mounting Type: Through Hole
Number of Positions: 8
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -25°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Natural
Pitch - Mating: 0.156" (3.96mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.146" (3.70mm)
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 1 Wall
Overall Contact Length: 0.575" (14.60mm)
Insulation Material: Polyamide (PA66), Nylon 6/6
Contact Length - Mating: 0.303" (7.70mm)
auf Bestellung 31367 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 25+ | 0.83 EUR |
| 30+ | 0.71 EUR |
| 200+ | 0.58 EUR |
| 600+ | 0.54 EUR |
| 1000+ | 0.52 EUR |
| 5000+ | 0.46 EUR |
| 10000+ | 0.44 EUR |
