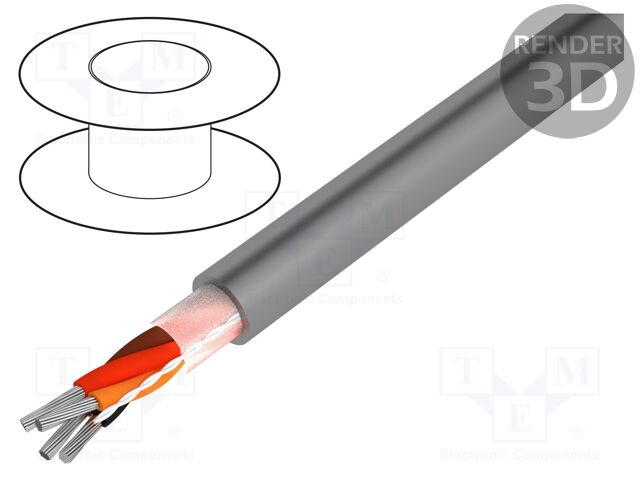

B953041 GE321 ALPHA WIRE
Hersteller: ALPHA WIRE
Description: ALPHA WIRE - B953041 GE321 - Mehradrige Kabel, Ungeschirmt, 4 Ader(n), 24 AWG, 164 ft, 50 m
tariffCode: 85444995
Anzahl der Adern: 4Ader(n)
Leitermaterial: Verzinntes Kupfer
Länge auf Rolle (metrisch): 50m
euEccn: NLR
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
Drahtdurchmesser: 24AWG
isCanonical: Y
Mantelmaterial: PVC
Länge auf Rolle (imperial): 164ft
Mantelfarbe: Grau
Leiterquerschnitt CSA: -
SVHC: No SVHC (25-Jun-2025)
Außendurchmesser: 4.42mm
Max. Anzahl d. Einzeldrähte x Einzeldrahtgröße: 7 x 32AWG
Produktpalette: Pro-Tekt Series
productTraceability: No
usEccn: EAR99
Nennspannung: 300V
Kabelabschirmung: Ungeschirmt
Produktrezensionen
Produktbewertung abgeben
Technische Details B953041 GE321 ALPHA WIRE
Category: Multicore Cables - Unshielded, Description: Wire; Pro-Tekt; 4x24AWG; unshielded; 300V; 50m; Cu; stranded; 164ft, Type of wire: control cable, Manufacturer series: Pro-Tekt, Cable structure: 4x24AWG, Shield structure: unshielded, Rated voltage: 0.3kV, Wire insulation material: PVC, Package contents: 50m, Kind of core: Cu; tinned, Core structure: stranded, Number of cores: 4, Core diameter: 24AWG, Insulation colour: dark grey, Cable external diameter: 4.42mm, Operating temperature: -30...105°C, Resistance to: flame; UV rays, CPR standard: no classification, Conform to the norm: CSA CMG FT4; UL 2464; UL 10002; VW-1, Package contents - ft: 164ft, Stranded core structure: 7/32AWG.
Weitere Produktangebote B953041 GE321
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
B953041 GE321 | ALPHA WIRE |
Category: Multicore Cables - Unshielded Description: Wire; Pro-Tekt; 4x24AWG; unshielded; 300V; 50m; Cu; stranded; 164ft Type of wire: control cable Manufacturer series: Pro-Tekt Cable structure: 4x24AWG Shield structure: unshielded Rated voltage: 0.3kV Wire insulation material: PVC Package contents: 50m Kind of core: Cu; tinned Core structure: stranded Number of cores: 4 Core diameter: 24AWG Insulation colour: dark grey Cable external diameter: 4.42mm Operating temperature: -30...105°C Resistance to: flame; UV rays CPR standard: no classification Conform to the norm: CSA CMG FT4; UL 2464; UL 10002; VW-1 Package contents - ft: 164ft Stranded core structure: 7/32AWG |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| B953041 GE321 |
|
Hersteller: ALPHA WIRE
Category: Multicore Cables - Unshielded
Description: Wire; Pro-Tekt; 4x24AWG; unshielded; 300V; 50m; Cu; stranded; 164ft
Type of wire: control cable
Manufacturer series: Pro-Tekt
Cable structure: 4x24AWG
Shield structure: unshielded
Rated voltage: 0.3kV
Wire insulation material: PVC
Package contents: 50m
Kind of core: Cu; tinned
Core structure: stranded
Number of cores: 4
Core diameter: 24AWG
Insulation colour: dark grey
Cable external diameter: 4.42mm
Operating temperature: -30...105°C
Resistance to: flame; UV rays
CPR standard: no classification
Conform to the norm: CSA CMG FT4; UL 2464; UL 10002; VW-1
Package contents - ft: 164ft
Stranded core structure: 7/32AWG
Category: Multicore Cables - Unshielded
Description: Wire; Pro-Tekt; 4x24AWG; unshielded; 300V; 50m; Cu; stranded; 164ft
Type of wire: control cable
Manufacturer series: Pro-Tekt
Cable structure: 4x24AWG
Shield structure: unshielded
Rated voltage: 0.3kV
Wire insulation material: PVC
Package contents: 50m
Kind of core: Cu; tinned
Core structure: stranded
Number of cores: 4
Core diameter: 24AWG
Insulation colour: dark grey
Cable external diameter: 4.42mm
Operating temperature: -30...105°C
Resistance to: flame; UV rays
CPR standard: no classification
Conform to the norm: CSA CMG FT4; UL 2464; UL 10002; VW-1
Package contents - ft: 164ft
Stranded core structure: 7/32AWG
