BC034-03-A-V-0150-L-C GCT
Hersteller: GCT

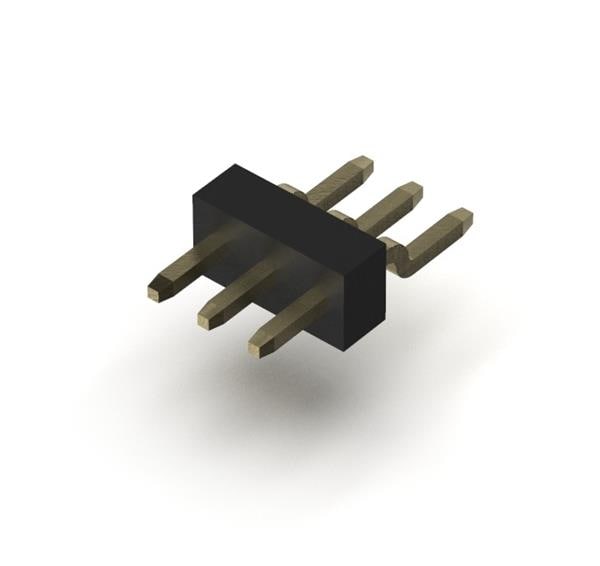

Board to Board & Mezzanine Connectors 3w, 1.0mm Pitch Header, SIL, SMT, Horizontal, GF, Tape+Reel+Film
| Anzahl | Privatkunde |
|---|---|
| 2+ | 1.69 EUR |
| 10+ | 1.62 EUR |
| 25+ | 1.44 EUR |
| 100+ | 1.32 EUR |
| 250+ | 1.29 EUR |
| 500+ | 1.14 EUR |
| 1000+ | 1.08 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Mindestmenge:
2 Stücke
Produktrezensionen
Produktbewertung abgeben
Technische Details BC034-03-A-V-0150-L-C GCT
Description: 3POS 1.0MM PITCH HEADER, SIL, SM, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 250VAC/DC, Current Rating (Amps): 1A per Contact, Mounting Type: Surface Mount, Right Angle, Number of Positions: 3, Number of Rows: 1, Style: Board to Board, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.039" (1.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: FLASH, Contact Finish - Post: Gold, Part Status: Active, Contact Shape: Square, Insulation Height: 0.059" (1.50mm), Shrouding: Unshrouded, Insulation Material: Liquid Crystal Polymer (LCP), Contact Length - Mating: 0.059" (1.50mm).
Weitere Produktangebote BC034-03-A-V-0150-L-C nach Preis ab 1.19 EUR bis 2.23 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BC034-03-A-V-0150-L-C | GCT |
Description: 3POS 1.0MM PITCH HEADER, SIL, SM Packaging: Cut Tape (CT) Connector Type: Header Voltage Rating: 250VAC/DC Current Rating (Amps): 1A per Contact Mounting Type: Surface Mount, Right Angle Number of Positions: 3 Number of Rows: 1 Style: Board to Board Operating Temperature: -40°C ~ 105°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.039" (1.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: FLASH Contact Finish - Post: Gold Part Status: Active Contact Shape: Square Insulation Height: 0.059" (1.50mm) Shrouding: Unshrouded Insulation Material: Liquid Crystal Polymer (LCP) Contact Length - Mating: 0.059" (1.50mm) |
auf Bestellung 2469 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
BC034-03-A-V-0150-L-C | GCT |
Category: Pin headers Description: Connector: pin strips; pin header; male; PIN: 3; SMT; horizontal Contact plating: gold flash Spatial orientation: horizontal Contacts pitch: 1mm Number of pins: 3 Electrical mounting: SMT Connector pinout layout: 1x3 Type of connector: pin strips Kind of connector: male Length of metal part: 1.5mm Connector: pin header |
auf Bestellung 2245 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| BC034-03-A-V-0150-L-C |
|
Hersteller: GCT
Description: 3POS 1.0MM PITCH HEADER, SIL, SM
Packaging: Cut Tape (CT)
Connector Type: Header
Voltage Rating: 250VAC/DC
Current Rating (Amps): 1A per Contact
Mounting Type: Surface Mount, Right Angle
Number of Positions: 3
Number of Rows: 1
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Square
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.059" (1.50mm)
Description: 3POS 1.0MM PITCH HEADER, SIL, SM
Packaging: Cut Tape (CT)
Connector Type: Header
Voltage Rating: 250VAC/DC
Current Rating (Amps): 1A per Contact
Mounting Type: Surface Mount, Right Angle
Number of Positions: 3
Number of Rows: 1
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Square
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.059" (1.50mm)
auf Bestellung 2469 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 10+ | 2.23 EUR |
| 12+ | 1.8 EUR |
| 100+ | 1.46 EUR |
| 500+ | 1.27 EUR |
| 1000+ | 1.19 EUR |
| BC034-03-A-V-0150-L-C |
|
Hersteller: GCT
Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 3; SMT; horizontal
Contact plating: gold flash
Spatial orientation: horizontal
Contacts pitch: 1mm
Number of pins: 3
Electrical mounting: SMT
Connector pinout layout: 1x3
Type of connector: pin strips
Kind of connector: male
Length of metal part: 1.5mm
Connector: pin header
Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 3; SMT; horizontal
Contact plating: gold flash
Spatial orientation: horizontal
Contacts pitch: 1mm
Number of pins: 3
Electrical mounting: SMT
Connector pinout layout: 1x3
Type of connector: pin strips
Kind of connector: male
Length of metal part: 1.5mm
Connector: pin header
auf Bestellung 2245 Stücke:
Lieferzeit 14-21 Tag (e)
