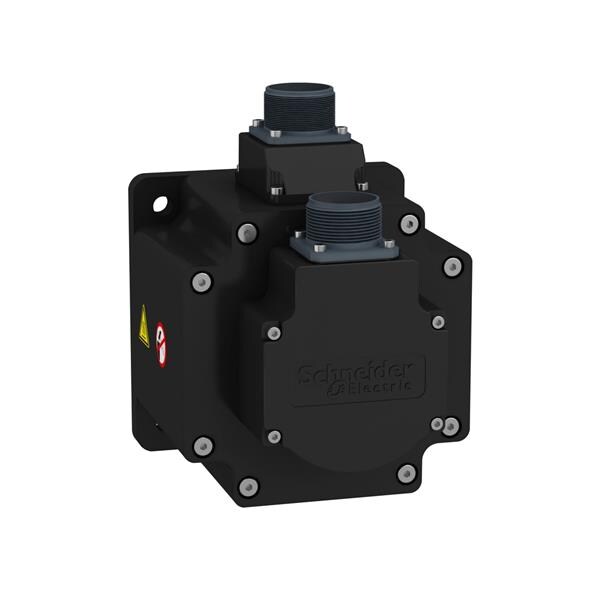

BCH2MM1523CF6C Schneider Electric
Hersteller: Schneider ElectricDescription: SERVO MOTOR BCH, 130MM, 1500W, W
Features: Brake, Key, Oil Seal
Packaging: Box
Voltage - Rated: 220VAC
Size / Dimension: Square - 5.120" x 5.120" (130.05mm x 130.05mm)
Function: Servomotor
RPM: 3000 RPM
Type: AC Motor
Operating Temperature: 0°C ~ 40°C
Termination Style: Connector
Encoder Type: Absolute
Power - Rated: 1.5kW
Diameter - Shaft: 0.870" (22.10mm)
Mounting Hole Spacing: 4.330" (109.98mm)
Length - Shaft and Bearing: 2.170" (55.12mm)
Torque - Rated (oz-in / mNm): 1014 / 7160
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details BCH2MM1523CF6C Schneider Electric
Description: SERVO MOTOR BCH, 130MM, 1500W, W, Features: Brake, Key, Oil Seal, Packaging: Box, Voltage - Rated: 220VAC, Size / Dimension: Square - 5.120" x 5.120" (130.05mm x 130.05mm), Function: Servomotor, RPM: 3000 RPM, Type: AC Motor, Operating Temperature: 0°C ~ 40°C, Termination Style: Connector, Encoder Type: Absolute, Power - Rated: 1.5kW, Diameter - Shaft: 0.870" (22.10mm), Mounting Hole Spacing: 4.330" (109.98mm), Length - Shaft and Bearing: 2.170" (55.12mm), Torque - Rated (oz-in / mNm): 1014 / 7160.
