| Anzahl | Privatkunde |
|---|---|
| 1+ | 10.12 EUR |
| 22+ | 9.95 EUR |
| 55+ | 9.17 EUR |
| 110+ | 8.51 EUR |
Produktrezensionen
Produktbewertung abgeben

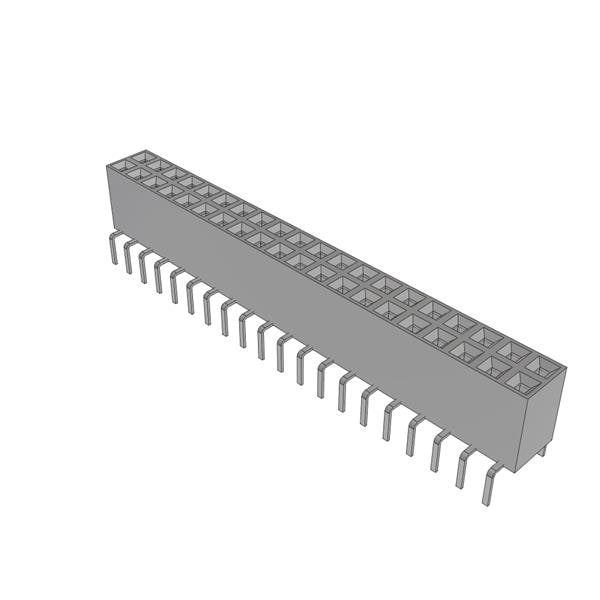

Technische Details BCS-120-L-D-PE Samtec
Description: CONN RCPT 40POS 0.1 GOLD PCB, Number of Rows: 2, Row Spacing - Mating: 0.100" (2.54mm), Insulation Height: 0.290" (7.37mm), Contact Length - Post: 0.128" (3.25mm), Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Female Socket, Operating Temperature: -55°C ~ 125°C, Style: Board to Board, Number of Positions: 40, Mounting Type: Through Hole, Current Rating (Amps): 4.6A per Contact, Voltage Rating: 475VAC, Connector Type: Receptacle, Pass Through, Packaging: Tube.
Weitere Produktangebote BCS-120-L-D-PE nach Preis ab 8.31 EUR bis 14.24 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BCS-120-L-D-PE | Samtec Inc. |
 Description: CONN RCPT 40POS 0.1 GOLD PCBNumber of Rows: 2 Row Spacing - Mating: 0.100" (2.54mm) Insulation Height: 0.290" (7.37mm) Contact Length - Post: 0.128" (3.25mm) Part Status: Active Contact Finish - Post: Tin Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Mating: Gold Pitch - Mating: 0.100" (2.54mm) Insulation Color: Black Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Push-Pull Contact Type: Female Socket Operating Temperature: -55°C ~ 125°C Style: Board to Board Number of Positions: 40 Mounting Type: Through Hole Current Rating (Amps): 4.6A per Contact Voltage Rating: 475VAC Connector Type: Receptacle, Pass Through Packaging: Tube |
auf Bestellung 1269 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
BCS-120-L-D-PE | SAMTEC |
Description: SAMTEC - BCS-120-L-D-PE - Printbuchse, Board-to-Board, 2.54 mm, 2 Reihe(n), 40 Kontakt(e), Durchsteckmontage tariffCode: 85366930 euEccn: NLR rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y Steckverbindermontage: Durchsteckmontage Anzahl der Kontakte: 40Kontakt(e) SVHC: No SVHC (04-Feb-2026) Steckverbindersysteme: Board-to-Board Produktpalette: Tiger Claw BCS productTraceability: No Kontaktanschluss: Durchsteckmontage usEccn: EAR99 Anzahl der Reihen: 2Reihe(n) Rastermaß: 2.54mm |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| BCS-120-L-D-PE |
|
Hersteller: Samtec Inc.
Description: CONN RCPT 40POS 0.1 GOLD PCB
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Height: 0.290" (7.37mm)
Contact Length - Post: 0.128" (3.25mm)
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Female Socket
Operating Temperature: -55°C ~ 125°C
Style: Board to Board
Number of Positions: 40
Mounting Type: Through Hole
Current Rating (Amps): 4.6A per Contact
Voltage Rating: 475VAC
Connector Type: Receptacle, Pass Through
Packaging: Tube
Description: CONN RCPT 40POS 0.1 GOLD PCB
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Height: 0.290" (7.37mm)
Contact Length - Post: 0.128" (3.25mm)
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Female Socket
Operating Temperature: -55°C ~ 125°C
Style: Board to Board
Number of Positions: 40
Mounting Type: Through Hole
Current Rating (Amps): 4.6A per Contact
Voltage Rating: 475VAC
Connector Type: Receptacle, Pass Through
Packaging: Tube
auf Bestellung 1269 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 14.24 EUR |
| 10+ | 12.89 EUR |
| 100+ | 11.28 EUR |
| 500+ | 9.5 EUR |
| 1000+ | 8.31 EUR |
| BCS-120-L-D-PE |
|
Hersteller: SAMTEC
Description: SAMTEC - BCS-120-L-D-PE - Printbuchse, Board-to-Board, 2.54 mm, 2 Reihe(n), 40 Kontakt(e), Durchsteckmontage
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbindermontage: Durchsteckmontage
Anzahl der Kontakte: 40Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board
Produktpalette: Tiger Claw BCS
productTraceability: No
Kontaktanschluss: Durchsteckmontage
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2.54mm
Description: SAMTEC - BCS-120-L-D-PE - Printbuchse, Board-to-Board, 2.54 mm, 2 Reihe(n), 40 Kontakt(e), Durchsteckmontage
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbindermontage: Durchsteckmontage
Anzahl der Kontakte: 40Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbindersysteme: Board-to-Board
Produktpalette: Tiger Claw BCS
productTraceability: No
Kontaktanschluss: Durchsteckmontage
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2.54mm
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
